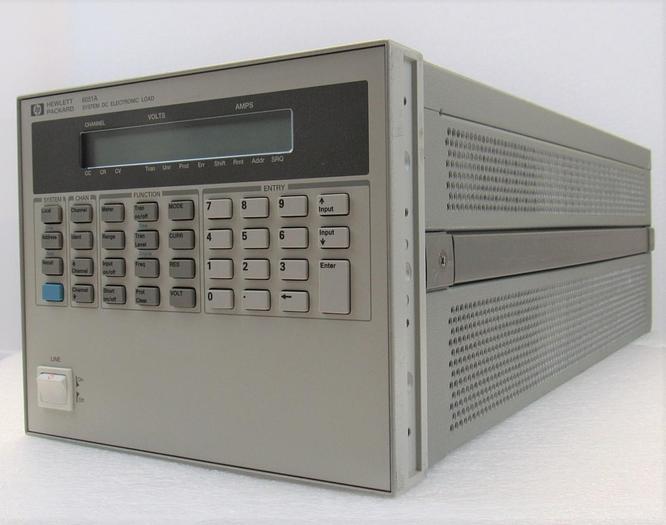

Agilent Technologies (HP) 6051A

The Agilent 6051A 600W DC electronic load mainframe accept the user-installable load modules for easy system configuration and future reconfiguration, if desired.

The 6051A can hold up to two 60501B, 60502B, 60503B modules, or one 60504B or 60507B module allowing up to 600W of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe.

Agilent 6051A Features

• GPIB control of current, voltage, and resistance
• GPIB readback of current, voltage, and power
• Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle, and slew rate
• Continuous and pulse modes
• Trigger for external synchronization
• Remote voltage sense in constant voltage mode
