Rohde & Schwarz (R&S) FPC1500

Rohde & Schwarz (R&S) FPC1500 (FPC-P1TG) Spectrum Analyser, with Tracking Generator, Bench, FPC Series, 5kHz to 1GHz

FPC1500 (FPC-P1TG) is a 5KHz to 1GHz spectrum analyser with tracking generator. The R&S®FPC1500 combines the value of a spectrum analyser, a vector network analyser and a signal generator. The R&S®FPC provides the best dynamic range in its class. In combination with RBW settings down to 1Hz, it resolves the finest details, which are displayed on the high-resolution 10.1" WXGA display. The R&S®FPC not only features standard tracking generator measurements with frequency offset functionality, its signal source is independent to enable signal generator functionality. A CW signal can be set within the frequency range, or in a coupled mode to follow the centre frequency setting of the spectrum analyser mode. The R&S®FPC features an internal VSWR bridge that makes purchasing and mounting/dismounting an external bridge unnecessary. S11 reflection measurements are supported, including Smith chart and DTF features.

• Resolution bandwidth settings down to 1Hz
• Tracking generator and independent CW signal generator
• Built-in VSWR bridge
• One-port vector network analyser with smith chart display
• Wi-Fi-enabled, supported by included remote control software
• Independent signal source and silent operation
• Small footprint and low power consumption

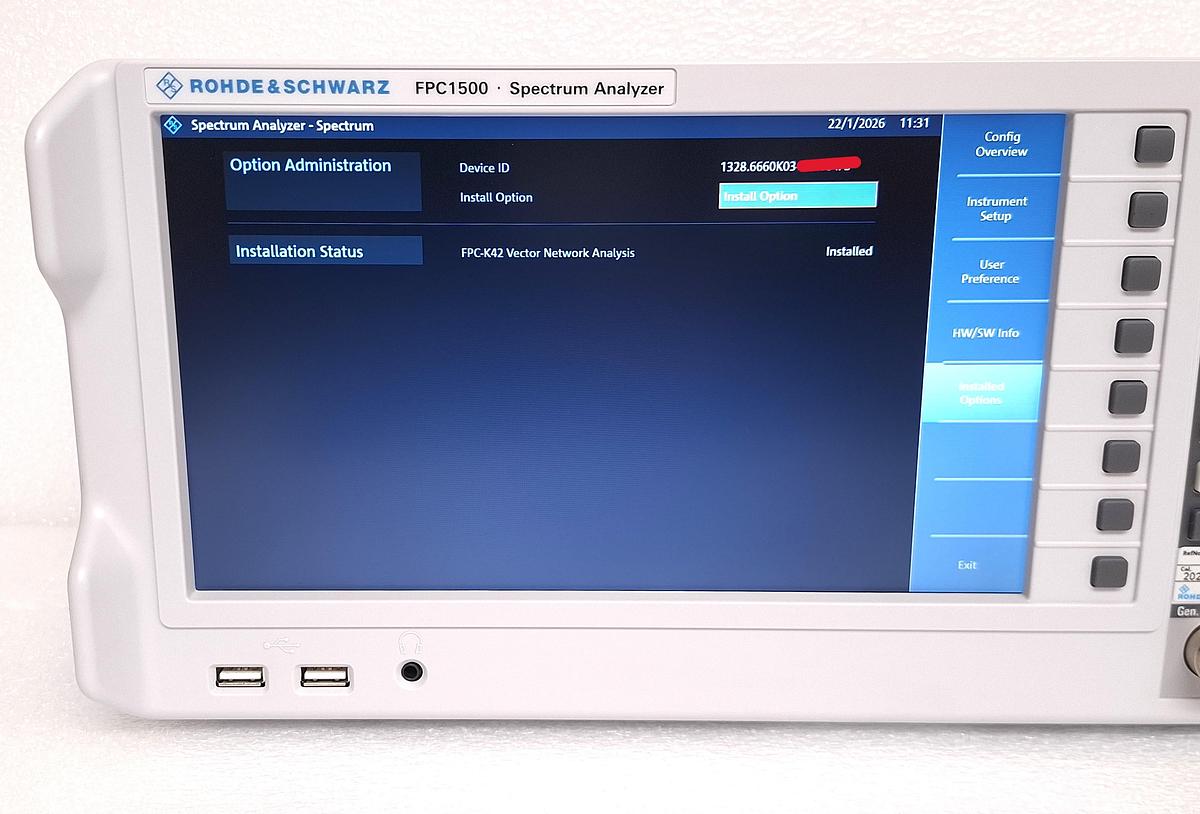

Options installed as part of FPC-COM2 package:

• FPC-K42 : Vector Network Analysis
