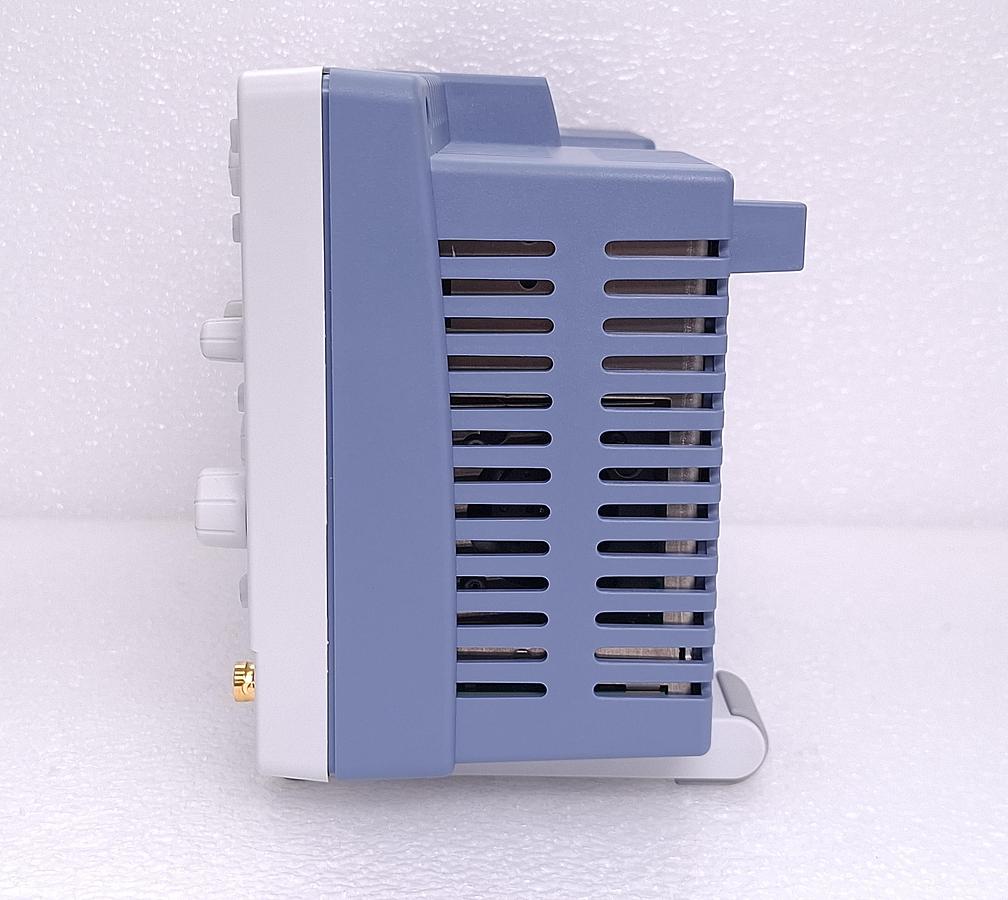

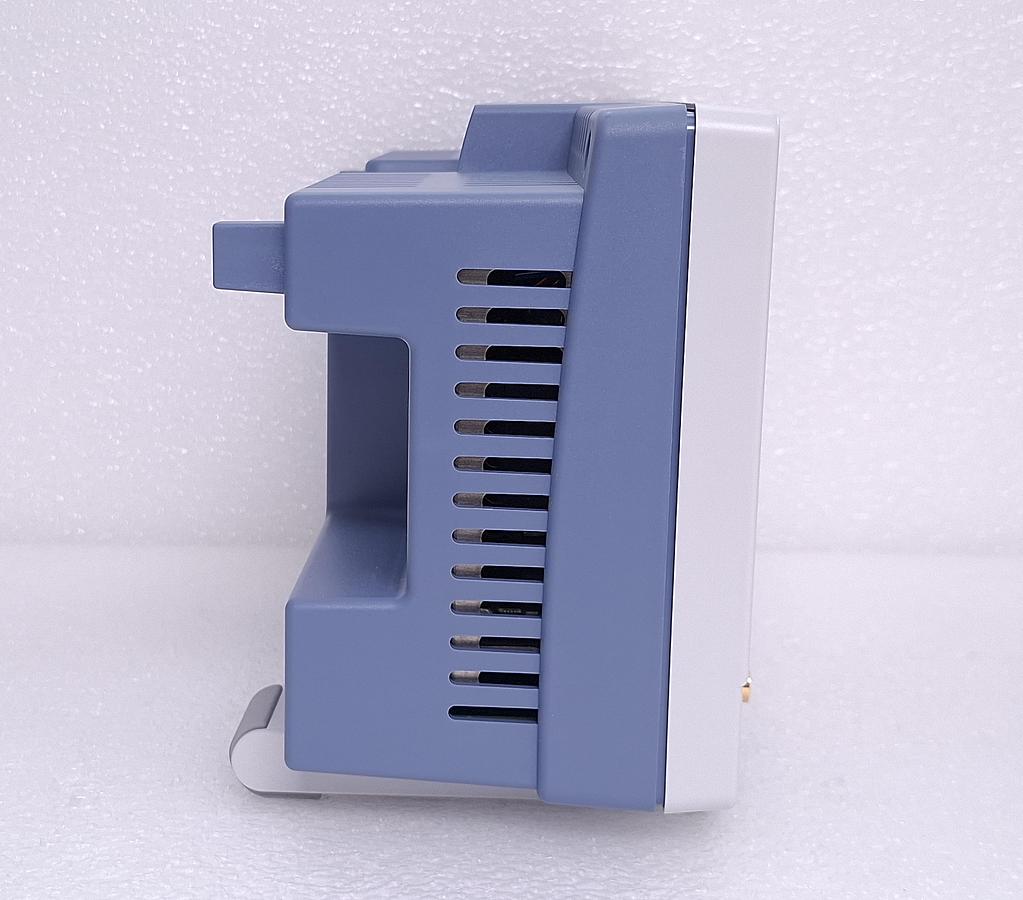

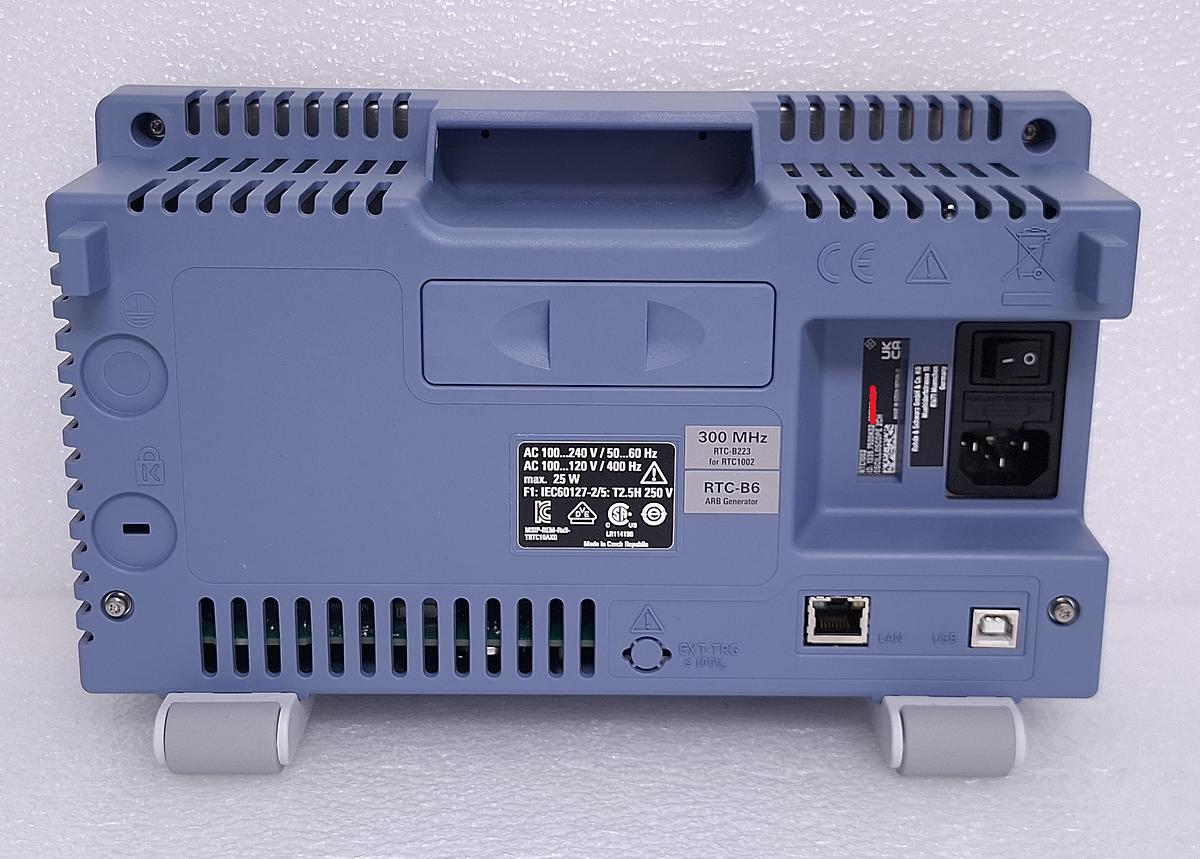

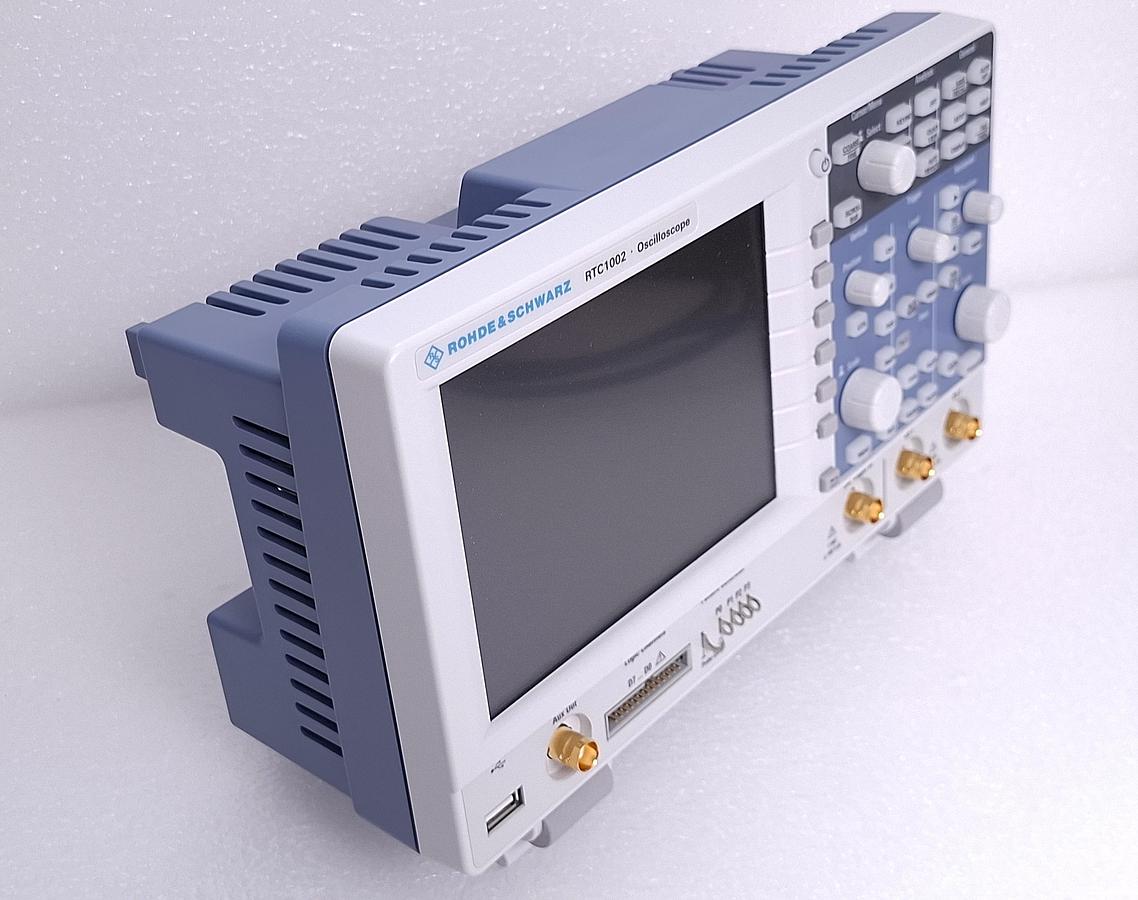

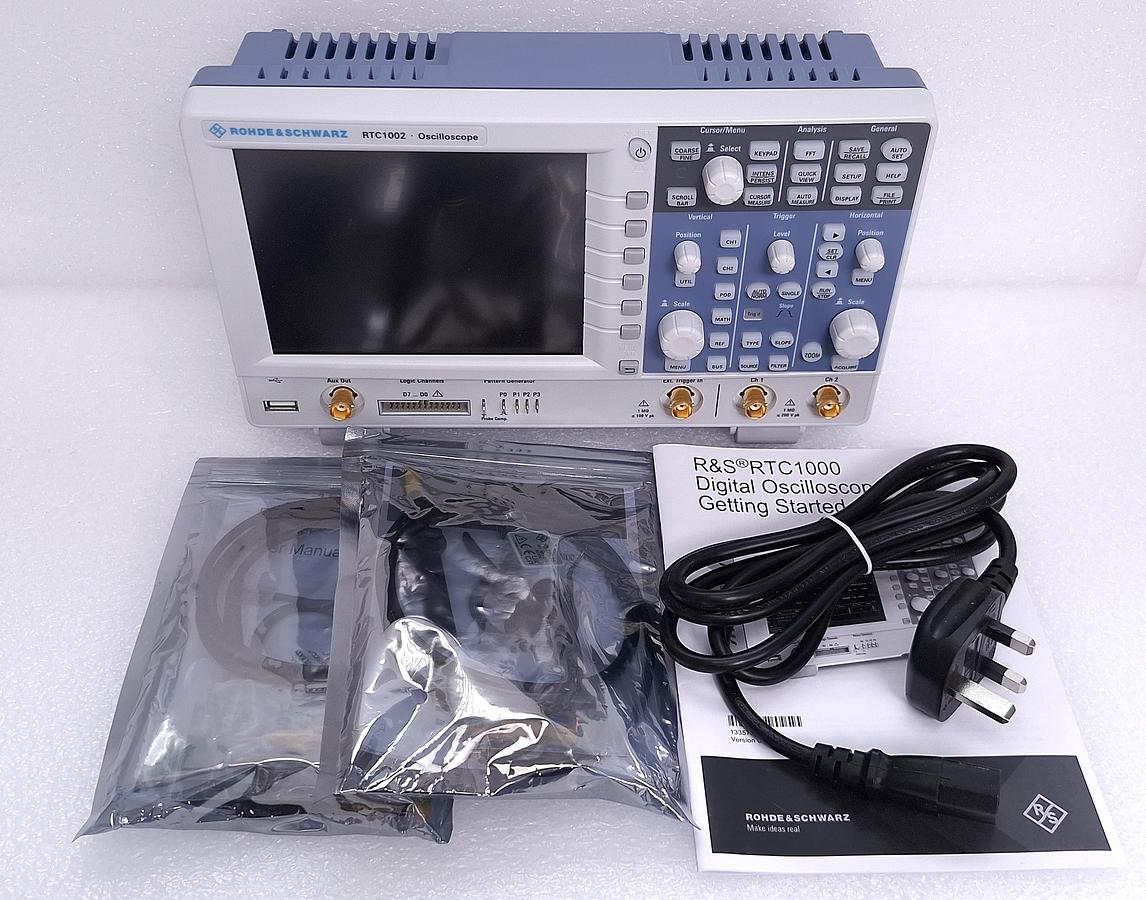

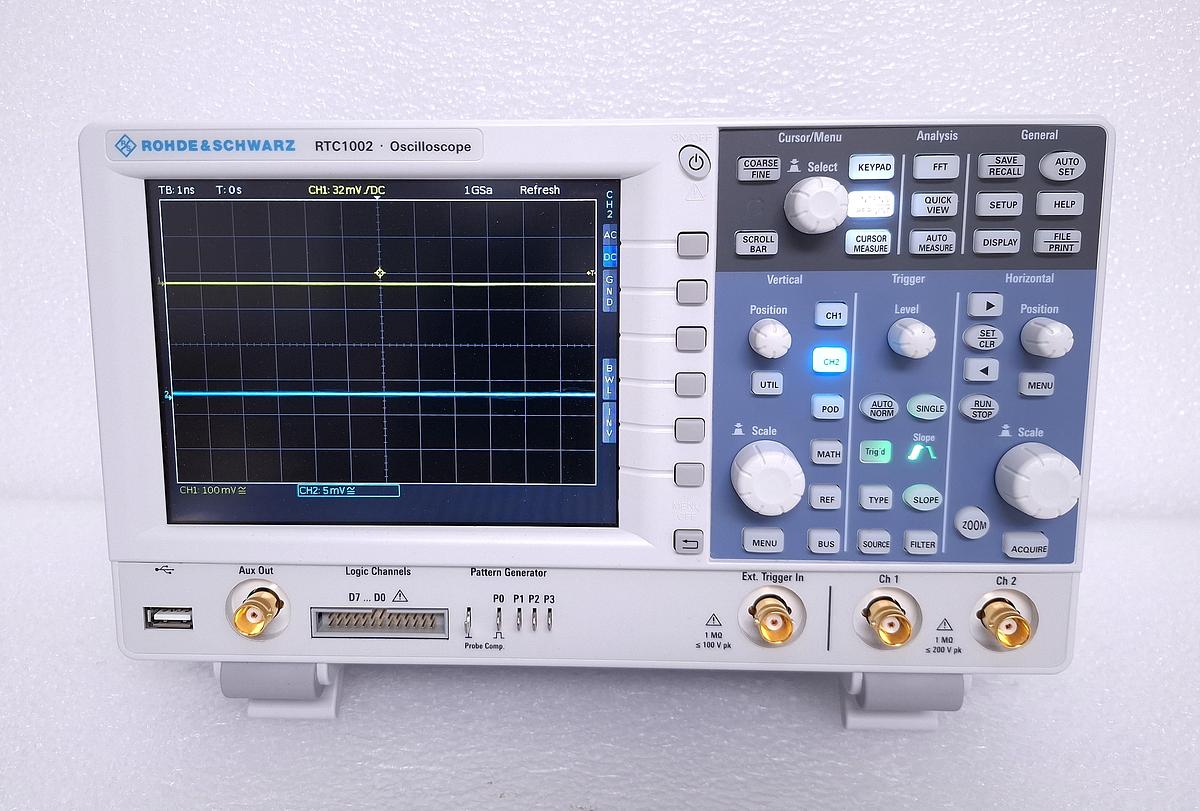

Rohde & Schwarz (R&S) RTC-BNDL RTC1000 Series 300MHz Digital Oscillscope Pkg

Rohde & Schwarz (R&S) RTC-BNDL RTC1000 Series 300MHz Digital Oscillscope Pkg

Contact us for price

Location:England, United Kingdom

Description

Rohde & Schwarz (R&S) RTC-BNDL RTC1000 Series 300MHz Digital Oscillscope Pkg

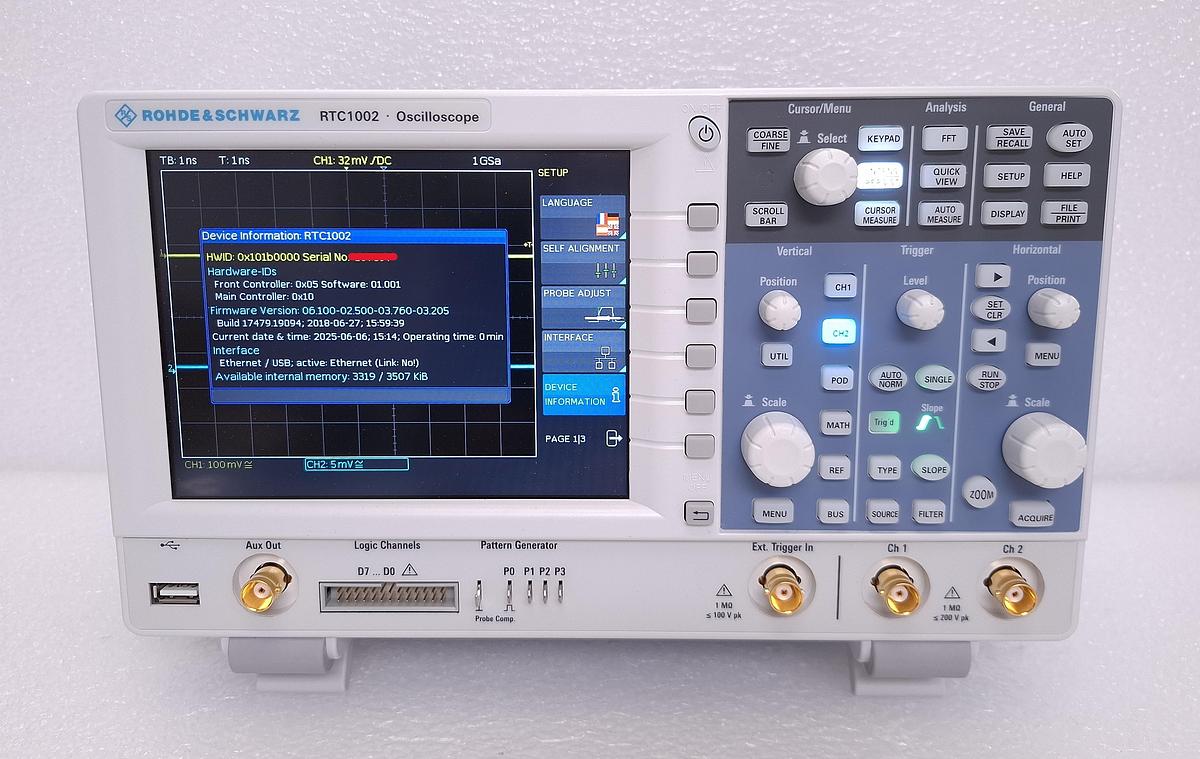

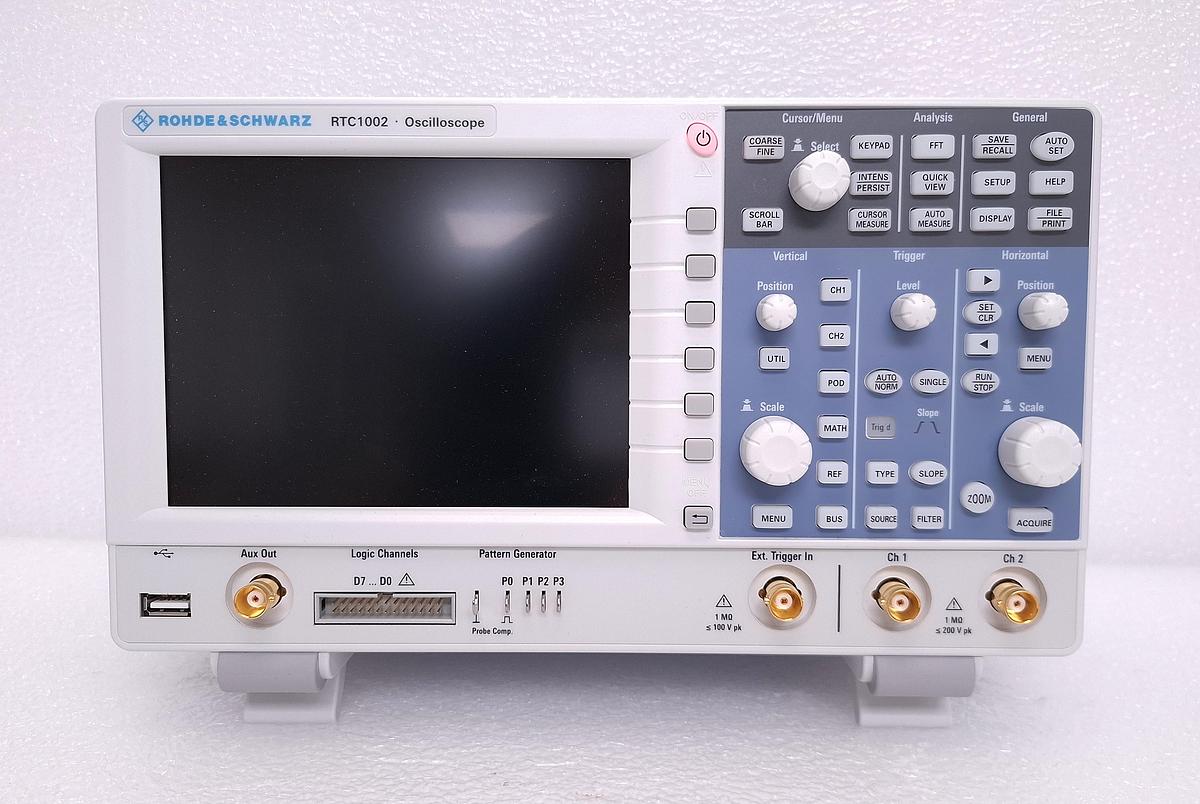

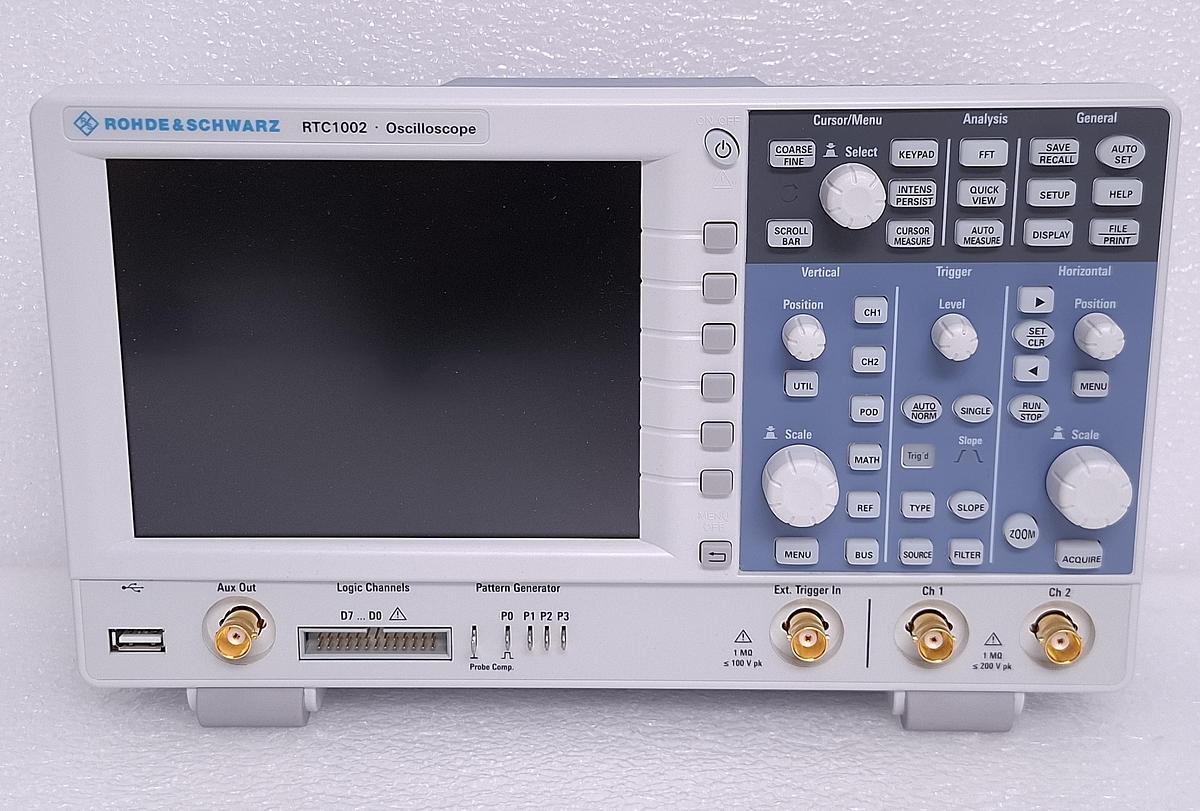

RTC-BNDL is an oscilloscope package consisting of RTC1002 Oscilloscope 2 channel 50MHz, RTC-B223 300MHz Bandwidth option and RTC-PK1 Application Bundle (RTC-B6 ARB GENERATOR, RTC-K1 I2C/SPI Trigger & Decode, RTC-K2 UART/RS232 Trigger & Decode, RTC-K3 CAN/LIN Trigger & Decode). High sensitivity and multifunctional R&S®RTC1000 base model oscilloscope. This is an X-in-one instrument that offers the functionality of an oscilloscope, logic analyser, protocol analyser, frequency analyser, pattern generator, function generator, digital voltmeter and component tester in a single instrument.


  • 6.5" VGA colour display (640 x 480 pixel) display (two displays instead of one)
  • Edge, width, video (PAL, SECAM, PAL-M, SDTV, HDTV), pattern, timeout standard triggers
  • I2C, SPI, UART/RS-232/RS-422/RS-485, CAN, LIN protocol (optional)
  • 1 x USB host, USB device, LAN interfaces
  • Top-class hardware-based acquisition for precise measurement results
  • QuickView key results at the press of a button
  • Mask test, easy creation of a new mask with just a few keystrokes
  • FFT, the easy way to analyse the signal spectrum

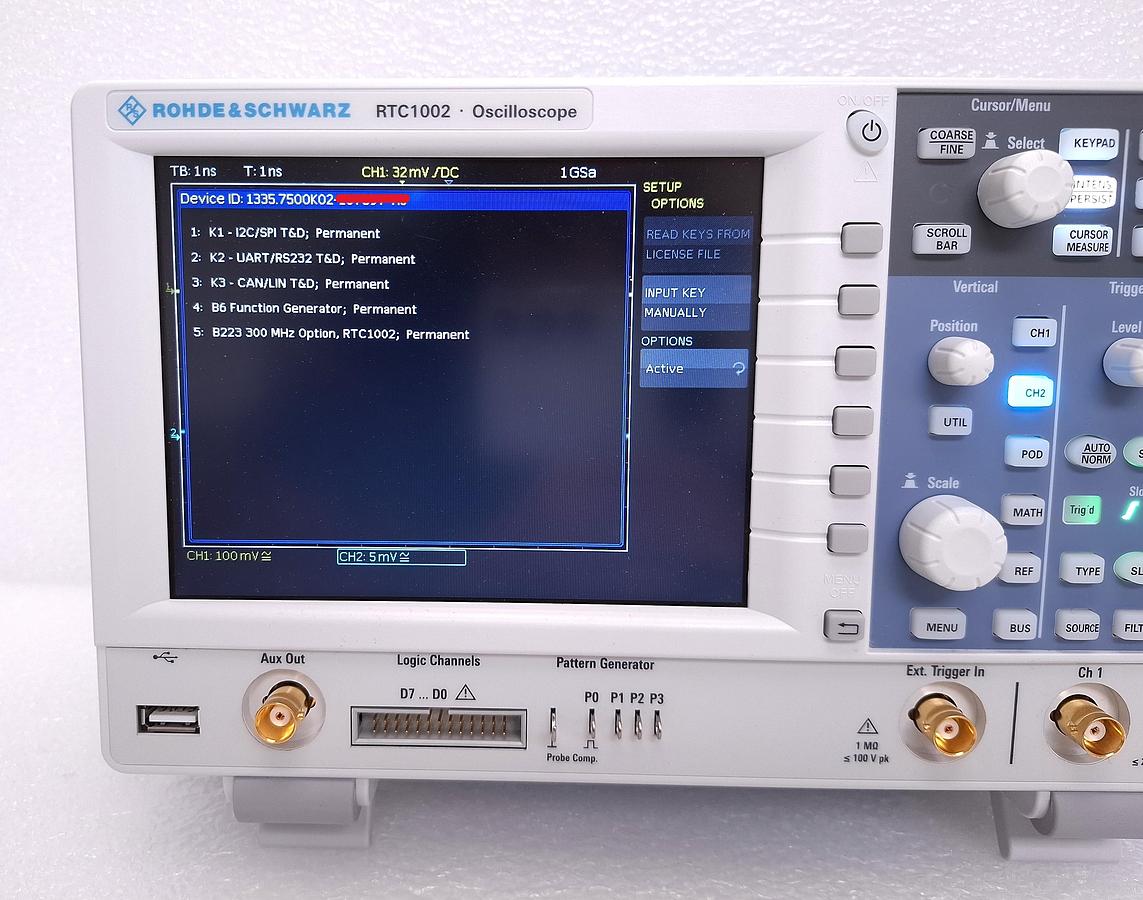

Options fitted as part of the Bundle:


  • RTC-B223 300MHz Bandwidth option
  • RTC-PK1 Application Bundle containing:
  • RTC-B6 Arb Generator
  • RTC-K1 I2C/SPI Trigger & Decode
  • RTC-K2 UART/RS232 Trigger & Decode
  • RTC-K3 CAN/LIN Trigger & Decode

Specifications

ManufacturerRohde & Schwarz (R&S)
ModelRTC-BNDL
Stock Number7757
