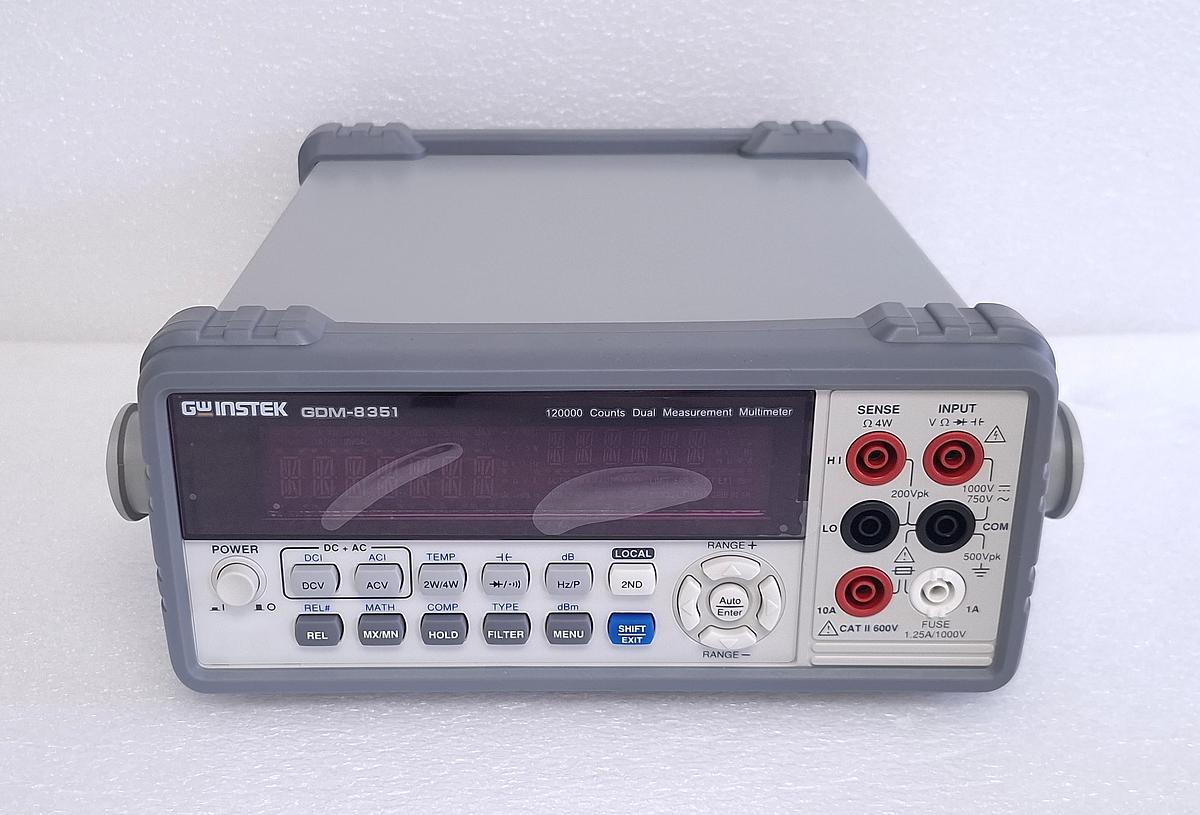

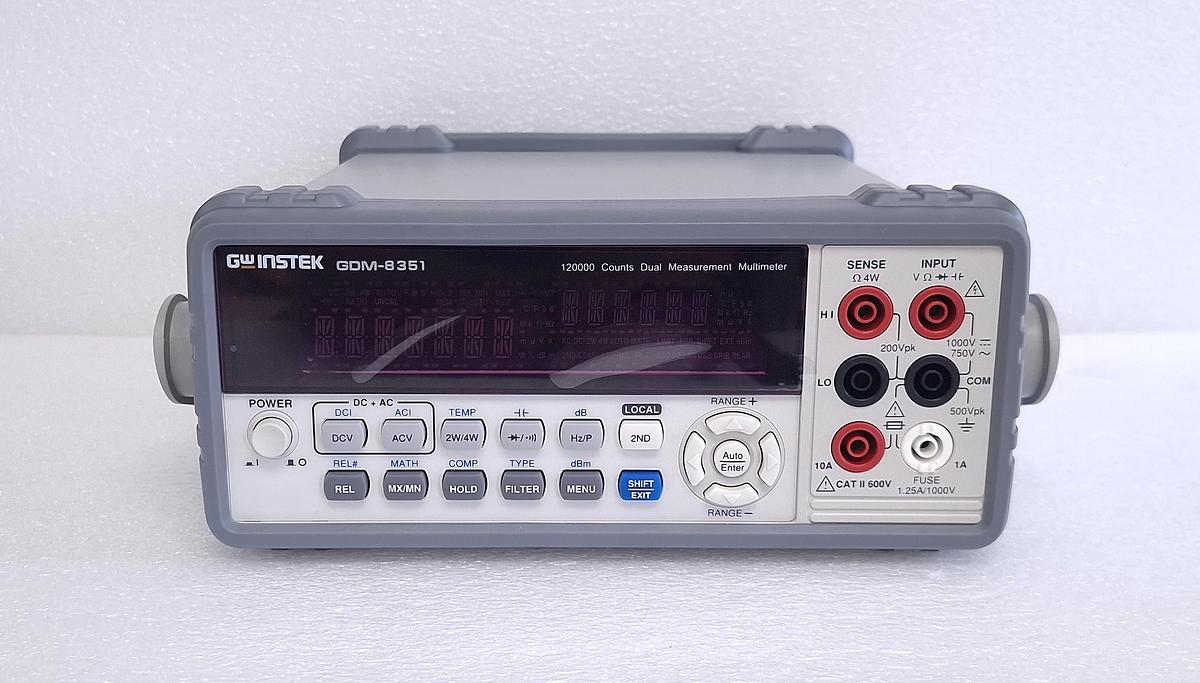

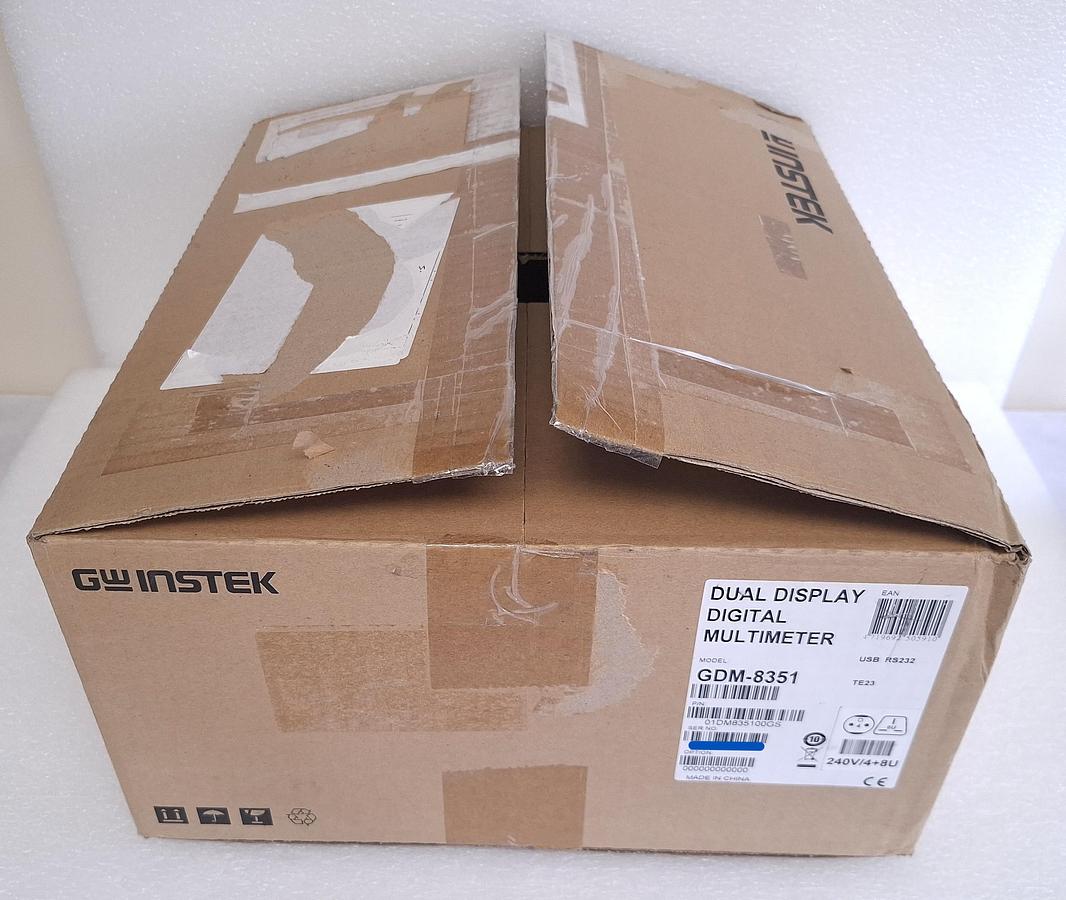

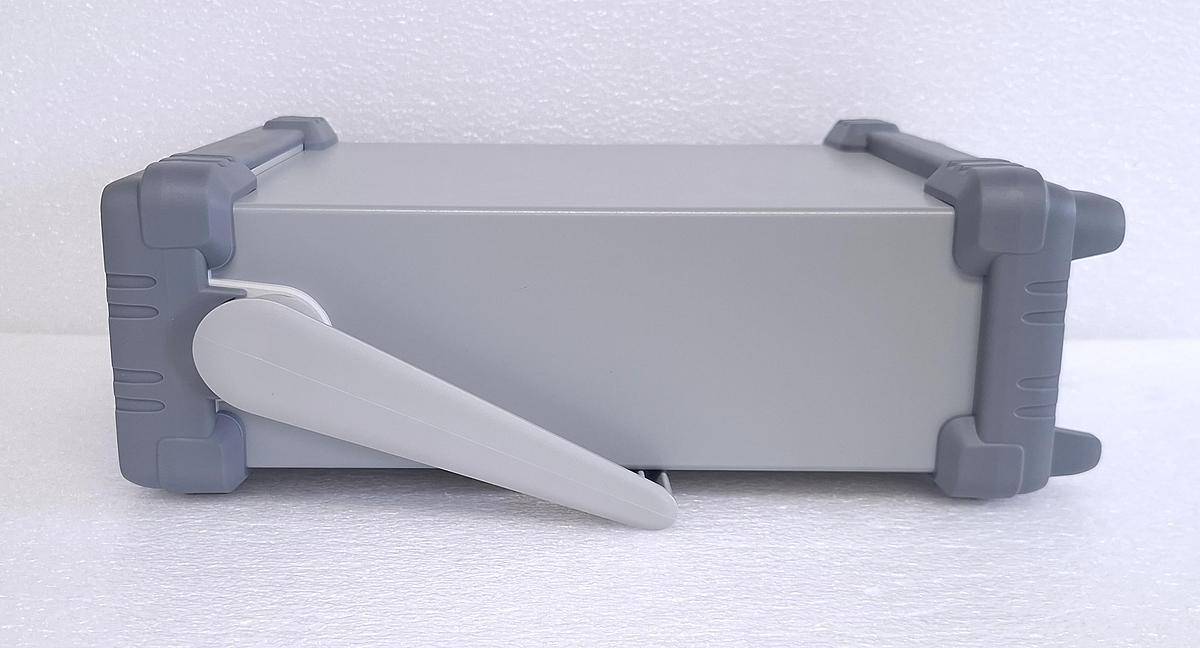

GW Instek GDM-8351

GW Instek GDM-8351 Bench Digital Multimeter, Dual Digit

The GDM-8351 from GW Instek is a brand new 5 1/2 digit dual measurement multimeter. It features VFD dual-display, maximum 120000 counts, 0.012% basic DC voltage accuracy and USB/RS232C connectors to provide users with measurement precision, lucid data observation and the convenient connection with the personal computer. In addition to the fundamental measurement items such as AC/DC voltage, AC/DC current, AC+DC voltage/current, 2W/4W resistance, frequency, temperature measurement, continuity beeper and diode test it also equips with the capacitance measurement function. It provides many auxiliary functions, including maximum/minimum values, dB, dBm, compare, reading hold, algorithms (MX+B, 1/X, %) etc. To meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

• Dual measurement/dual display
• Basic precision of DC voltage of 0.012%
• Selectable measurement speeds, the maximum of 320 readings/s
• True RMS (AC, AC+DC) measurements & auto/manual selection

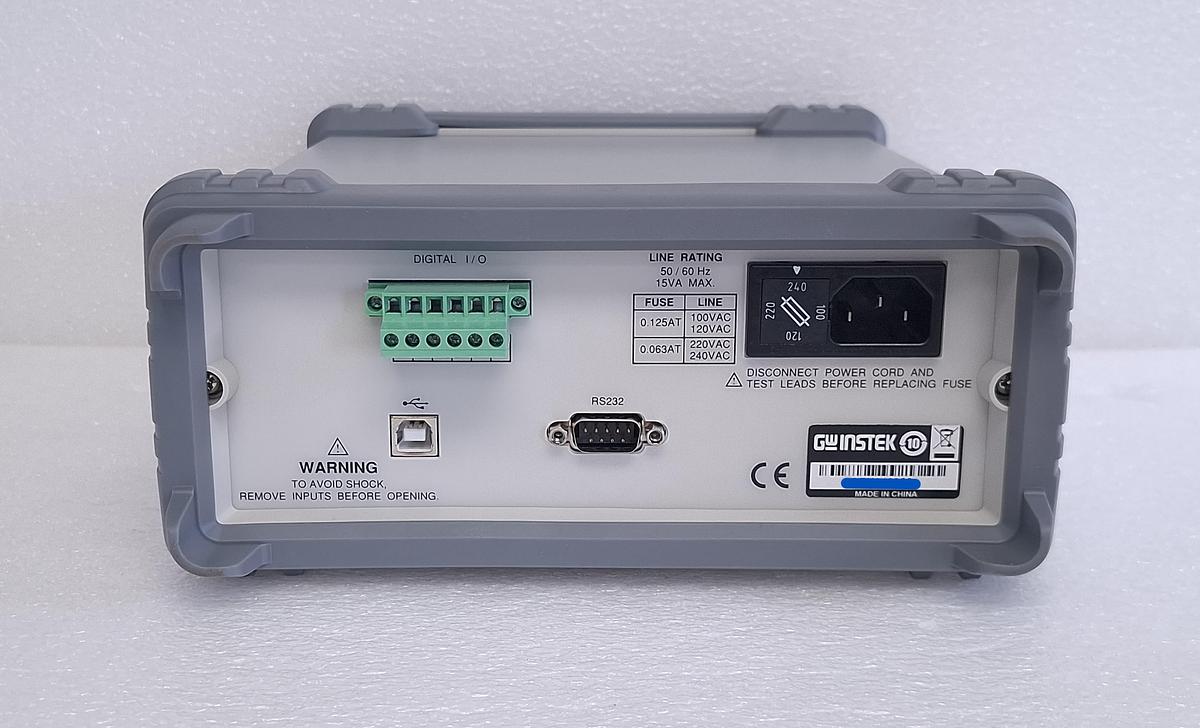

• Digital I/O provides dual mode (standard compare and user definition modes)
• Standard RS-232C and USB device interface (support USBCDC and USBTMC modes)
• Power source of AC 100V/120V/220V /240V ±10%, 50Hz/60Hz
• 15VA maximum power consumption
• Frequency range of 10Hz to 1MHz (voltage), 20Hz to 10KHz (current)
• Dimensions of 265mm x 107mm x 302mm (W x H x D), weight approximate is 2.9Kg
