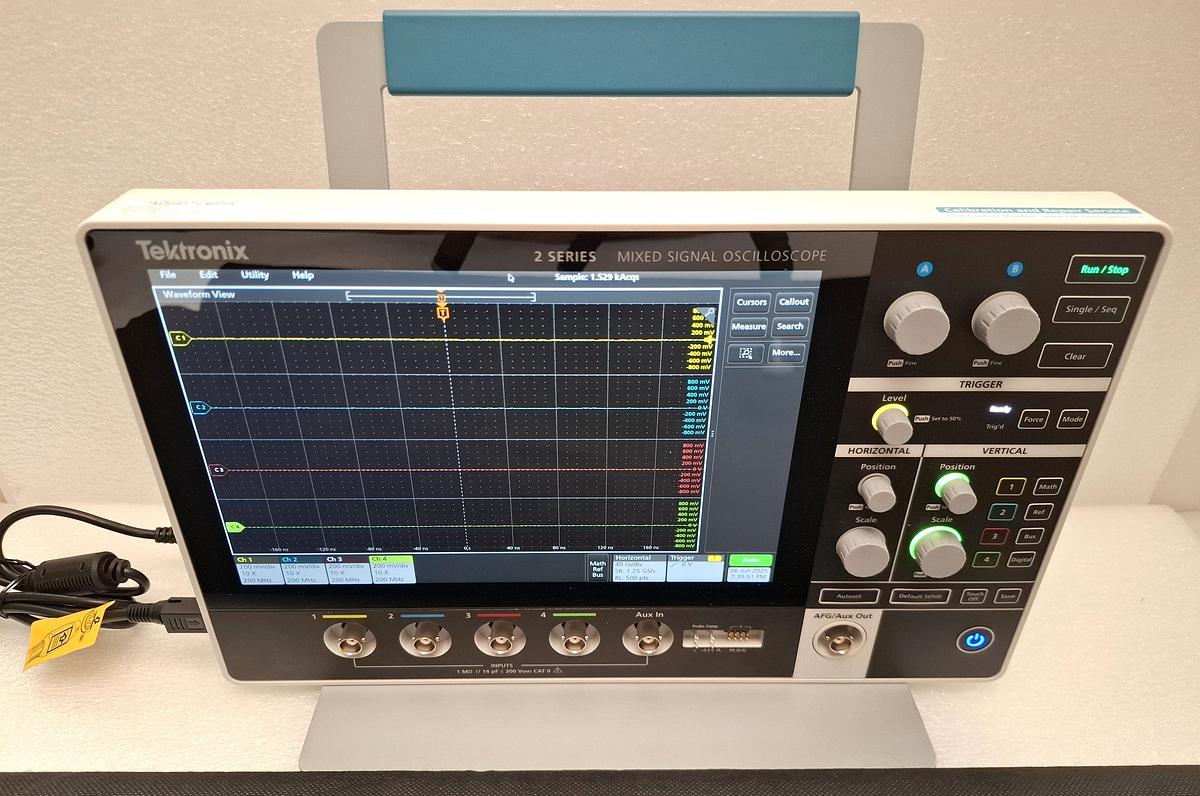

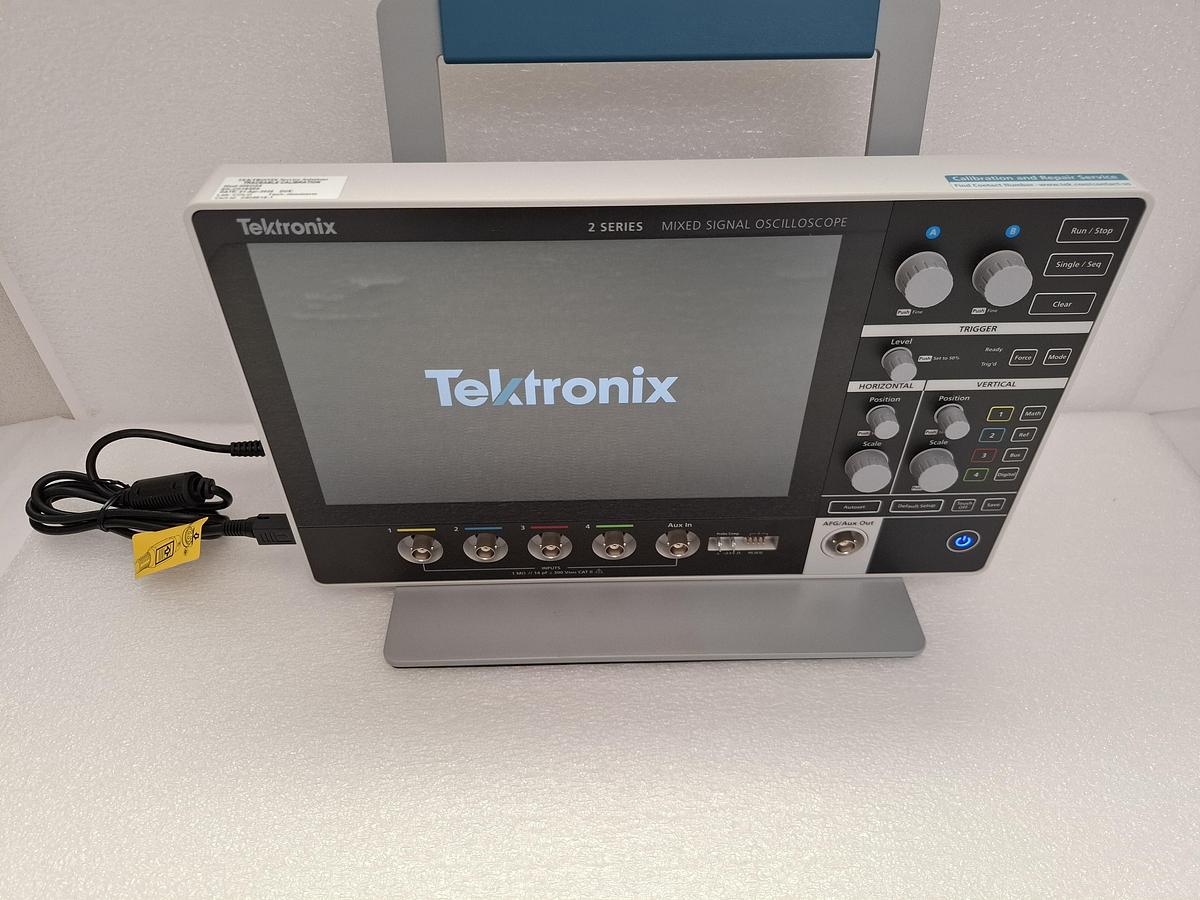

Tektronix MSO24 2-BW-200

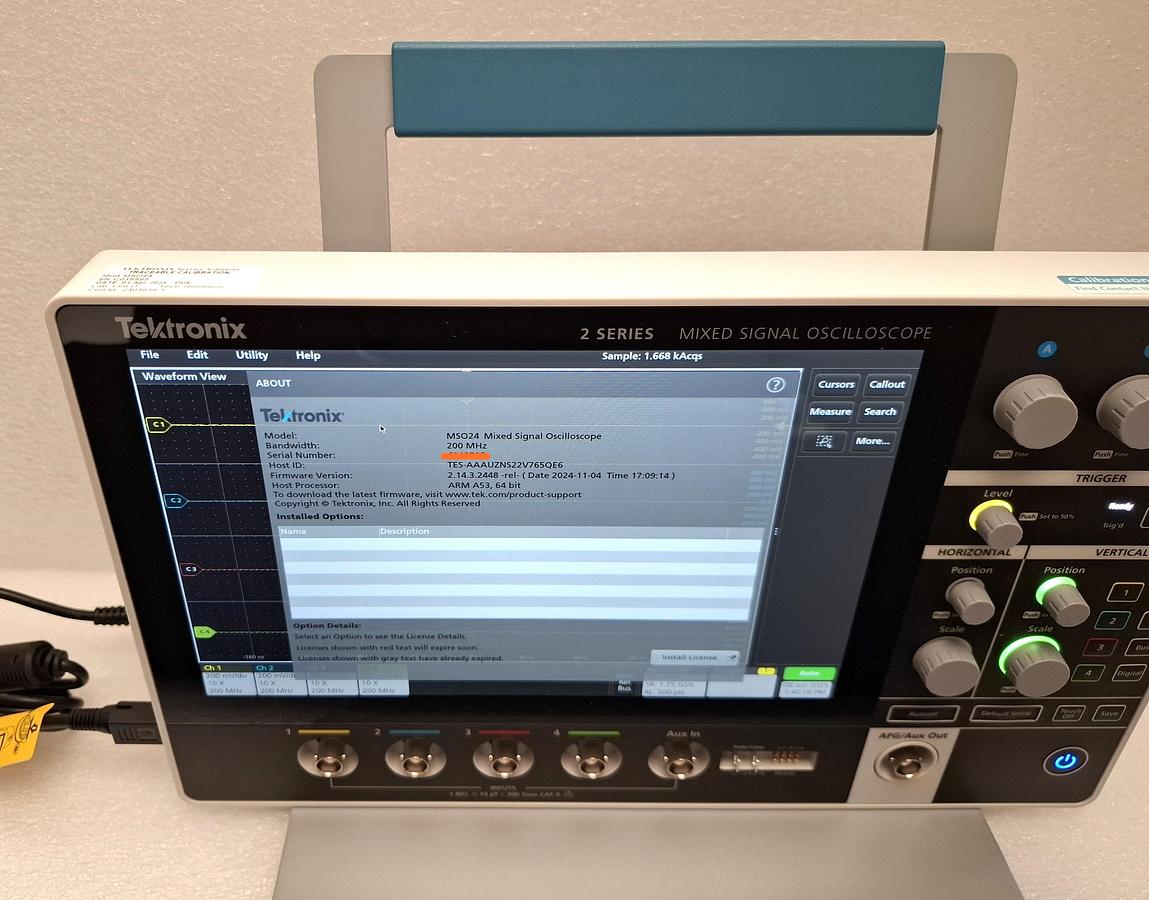

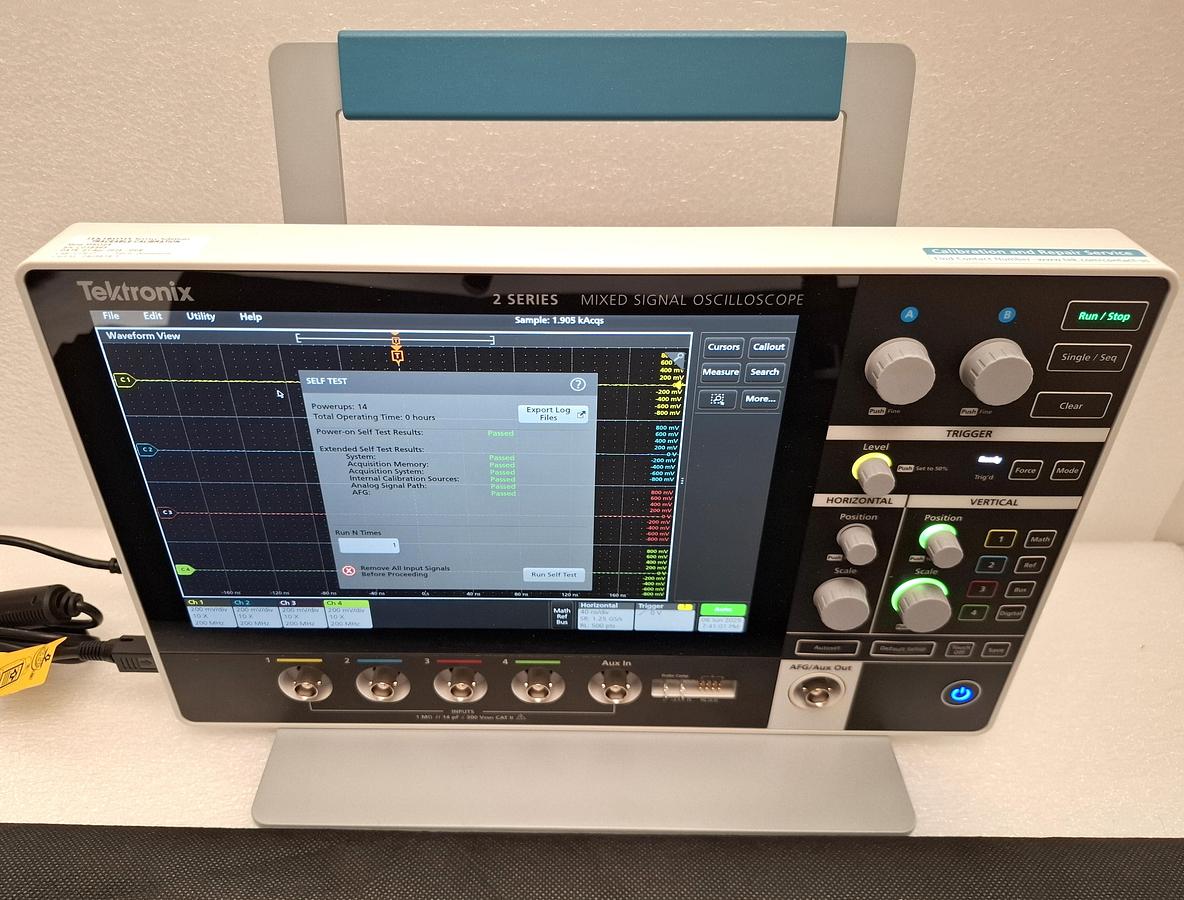

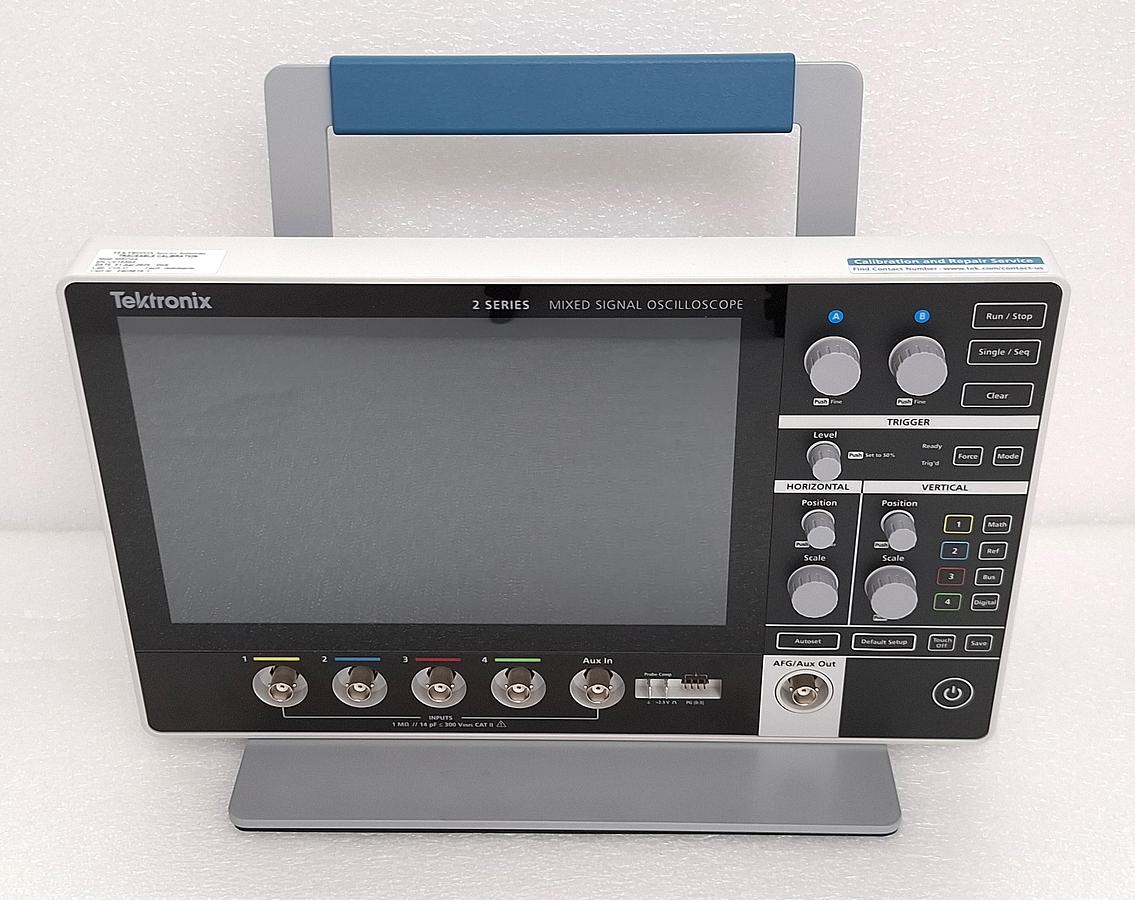

Tektronix MSO24 Mixed Signal Oscilloscope

With Option 2-BW-200 : Bandwidth range 200 MHz

The Tektronix MSO24 2-BW-200 is a 200MHz bandwidth 2 series Mixed Signal Oscilloscope. The compact, industry-leading form factor unlocks valuable bench space without compromising performance. Front and side I/O allow easy connectivity. Built-in support for TekDrive enables a collaborative data workspace and works with TekScope off-line analysis software.

• 4 analogue & 16 digital channel, 2.5GS/s sample rate(half channel interleaved), 10Mpts record length
• 8-bit ADC vertical resolution
• Edge, pulse width, runt, timeout, logic, setup & hold, rise/ fall time and parallel bus
• 36 automated measurements, advanced math, FFT with gating, search and mark, limit, and eye mask

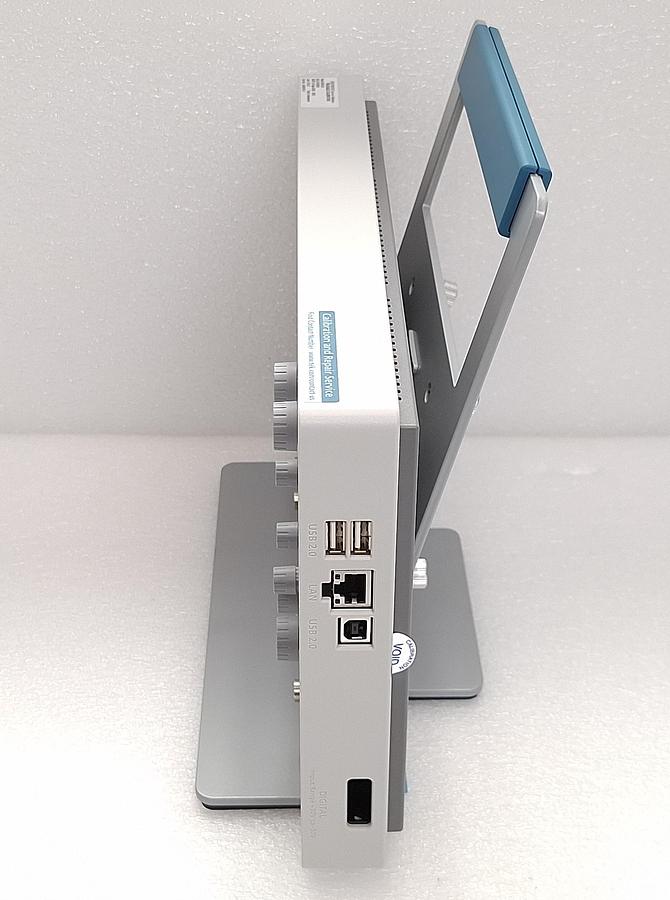

• USB 2.0 host, USB 2.0 device (2 ports), LAN (10/100 MB/s Base-T Ethernet) connectivity
• Remotely view and control the oscilloscope over a network connection through remote VNC

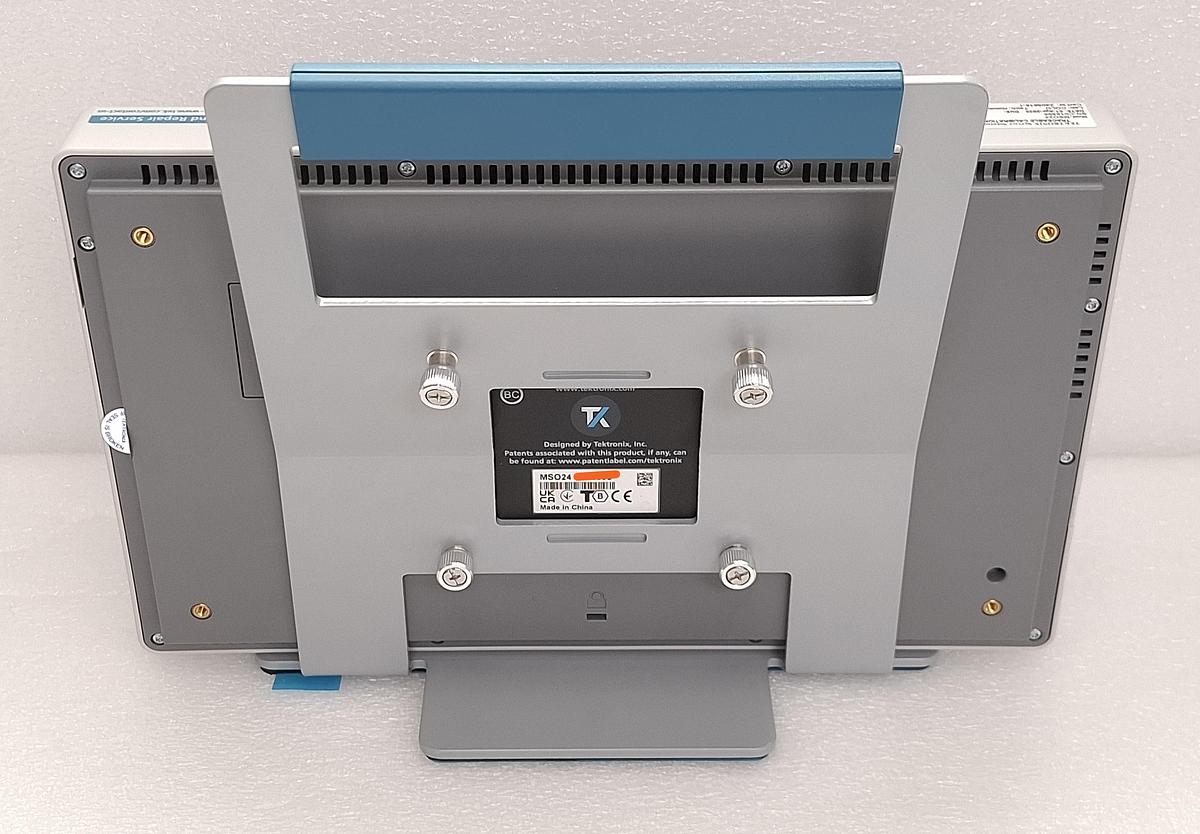

• Standard (VESA MIS-D 100) 100 mm x 100 mm VESA mounting points on rear of instrument
• Rear-panel security slot connects to standard Kensington-style lock
• Option 2-BW-200 : Bandwidth range 200 MHz
