GW Instek GPS-3030DD

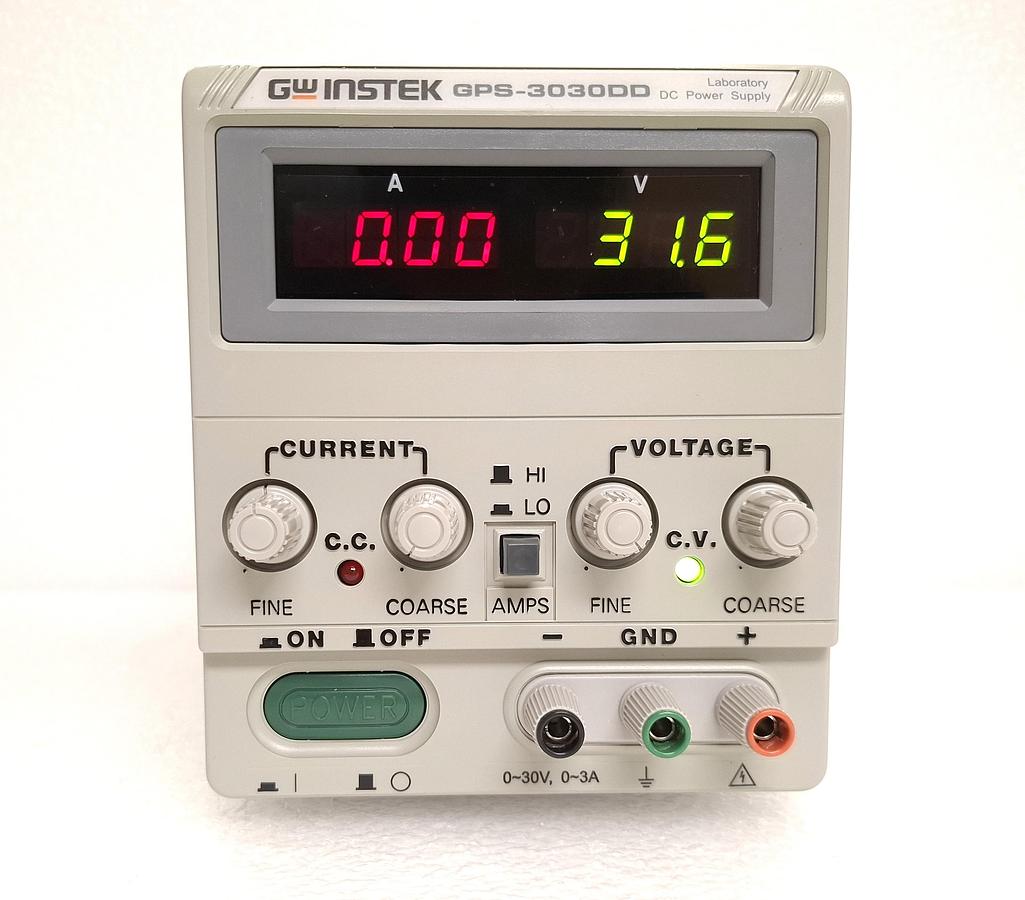

GW INSTEK GPS-3030DD Bench Power Supply

(1 Output, 0V, 30V, 0A, 3A)

The GPS-3030DD from GW Instek is a GPS series single output 90W linear DC power supply with 3 digits 0.39" digital LED display. It features overload and reverse polarity protection as well as high regulation and low ripple/noise that are maintained at 0.01% and <lt/> 1mVrms, respectively. Continuous or dynamic internal load selection accommodates applications such as pulsed current. Remote control terminals offer programming and operation from an external device. The power supply operates in constant voltage (CV) and constant current (CC) modes. It has line regulation ≤ 0.01% + 3mV (CV), ≤ 0.2% + 3mA (CC), load regulation of ≤ 0.01% + 3mV (current ≤ 3A), ≤ 0.01% + 5mV (current <gt/> 3A) (CV) and ≤ 0.2% + 3mA (CC). The ripple & noise is ≤ 0.5mVrms 5Hz ~ 1MHz (rating current ≤ 3A), ≤ 1mVrms 5Hz ~ 1MHz (rating current <gt/> 3A) (CV) and ≤ 3mArms ripple current (CC). It has insulation resistance of 20Mohm or above (DC 500V, chassis and terminal), 30Mohm or above (DC 500V, chassis and AC cord).

• 0V to 30V output voltage, 0A to 3A output current
• Light and compact design
• 0.01% high regulation, series or parallel operation
• 100V/120V/220V/240V±10%, 50/60Hz AC power source
• Remote control for external programmability
• Internal select for continuous or dynamic load, low ripple and noise
• Recovery time of ≤ 100μS ( 50% load change, minimum load 0.5A) in CV mode
• Temperature coefficient of ≤ 300ppm/°C in CV mode
