Keysight / Agilent 8485D

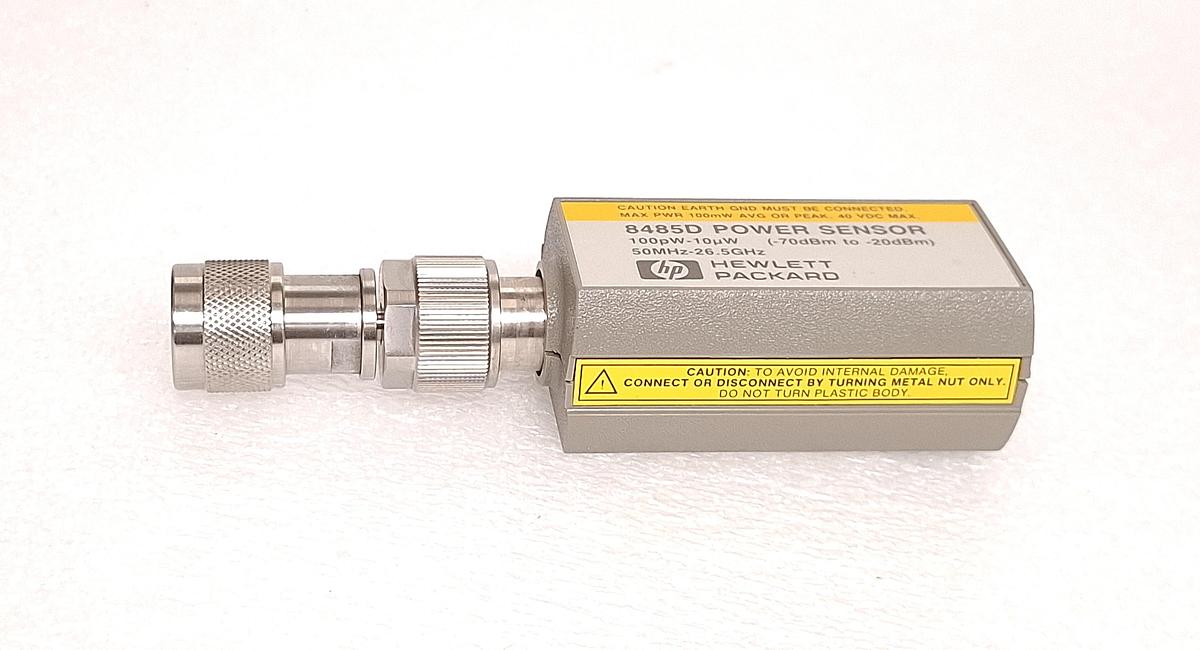

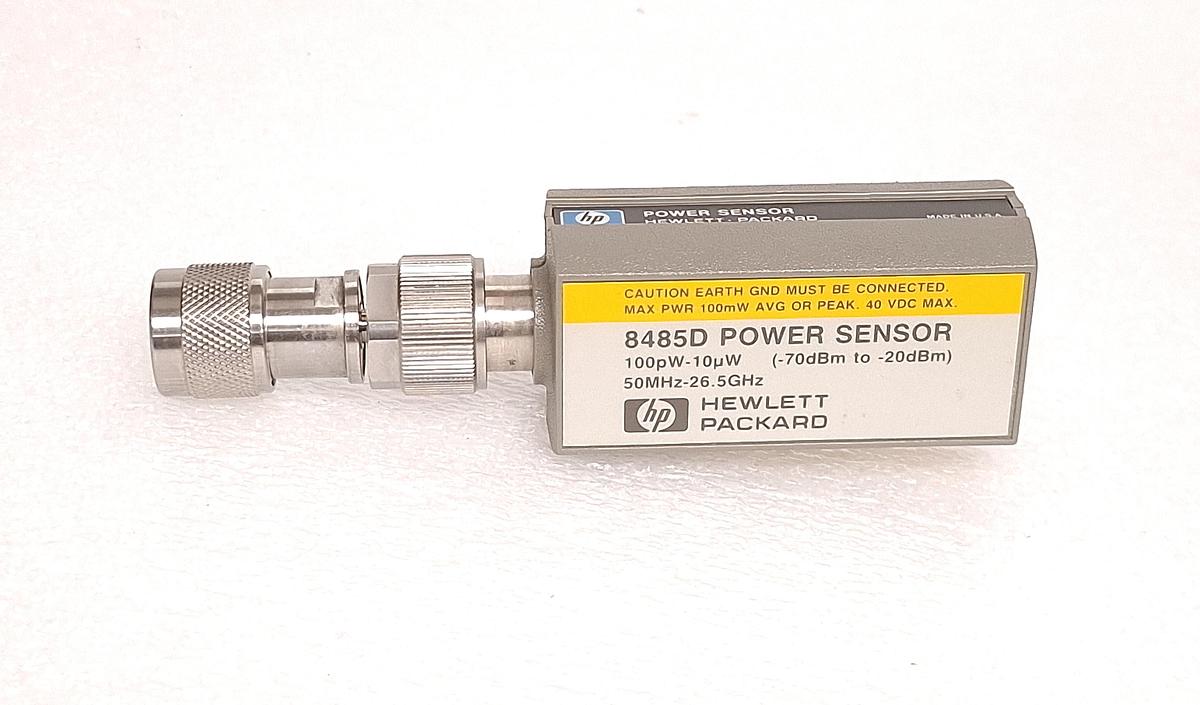

Keysight / Agilent 8485D High Sensitivity Power Sensor

• Frequency Range: 50MHz - 26.5GHz
• Power Measurements over -70dBm to -20dBm
• 3.5mm Connector
• Excellent SWR for reducing mismatch uncertainty
• Accurate calibration and traceability to US National Institute of Standards and Technology (NIST)
• Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
• Diode power sensing element

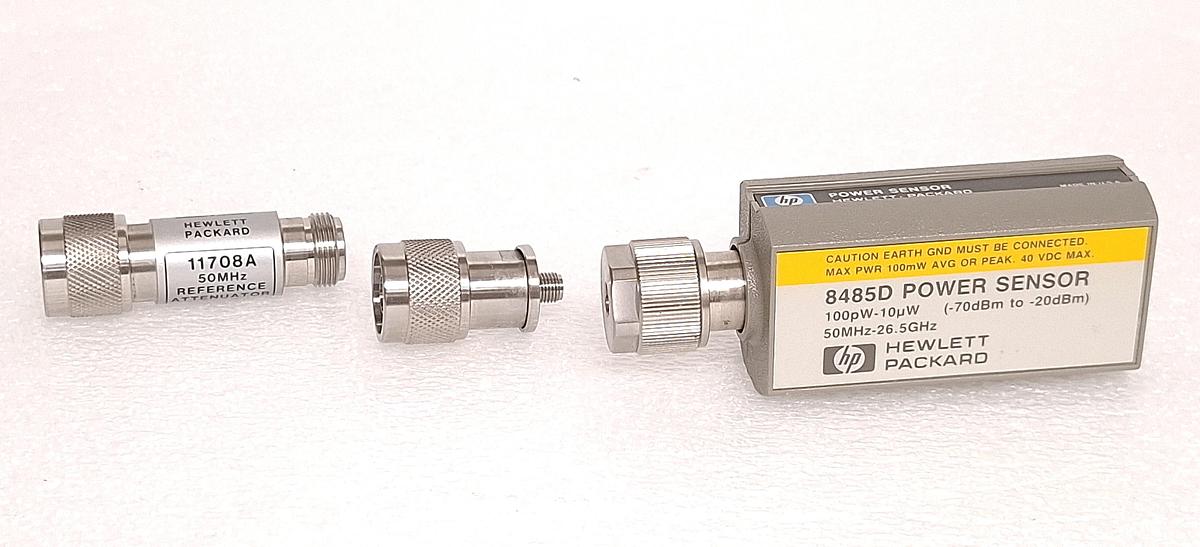

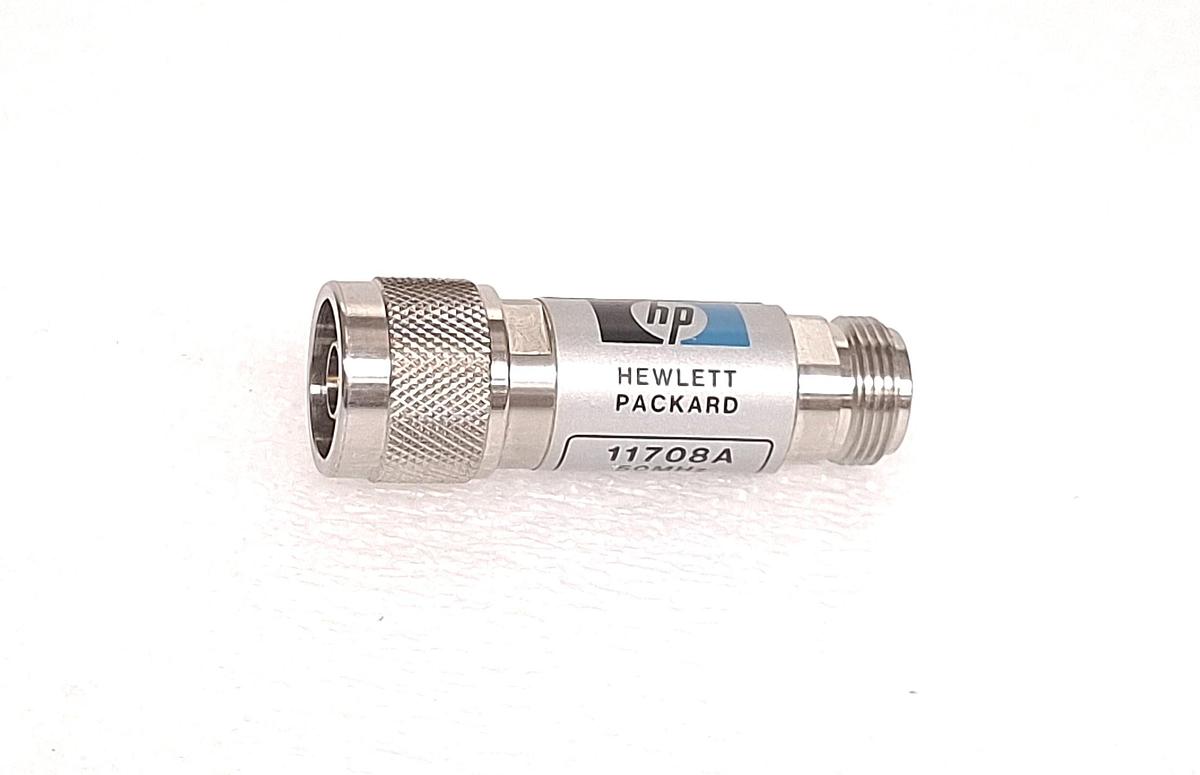

• The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the "D" suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
• Supplied with 3.5mm to N-type adapter
