Aim-TTi TG5012A

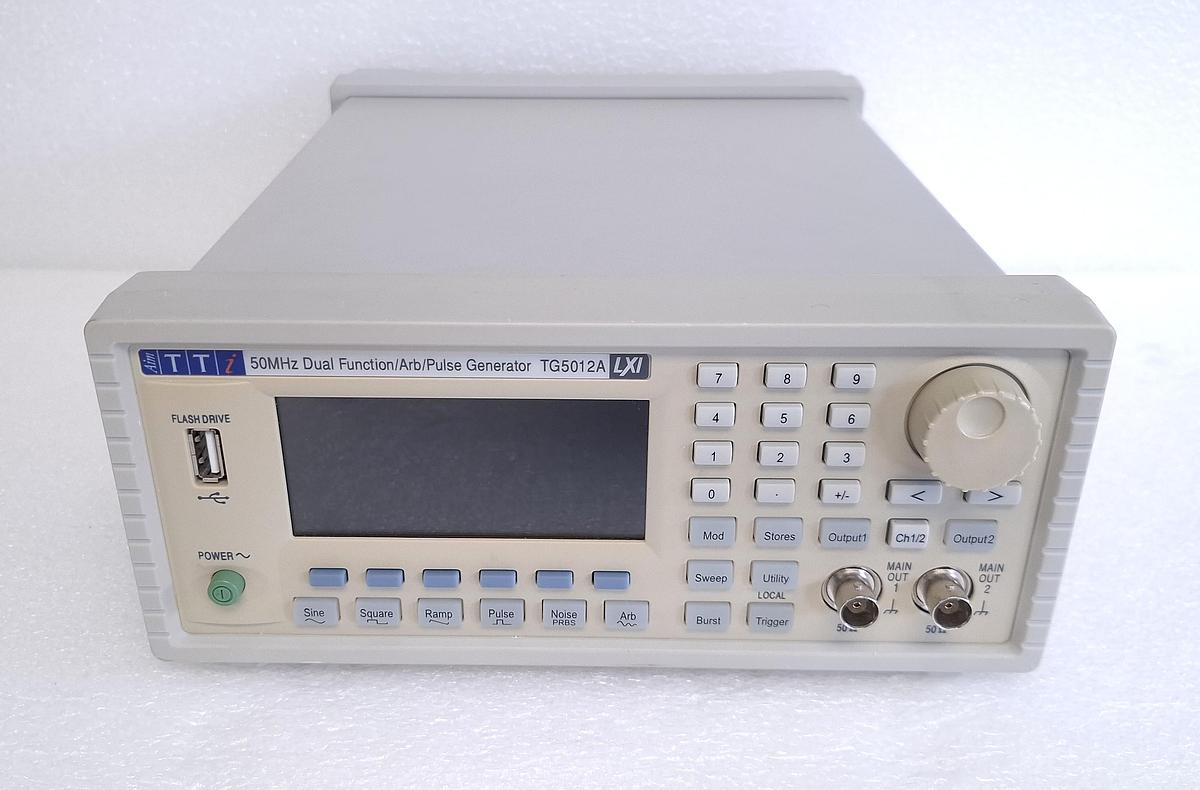

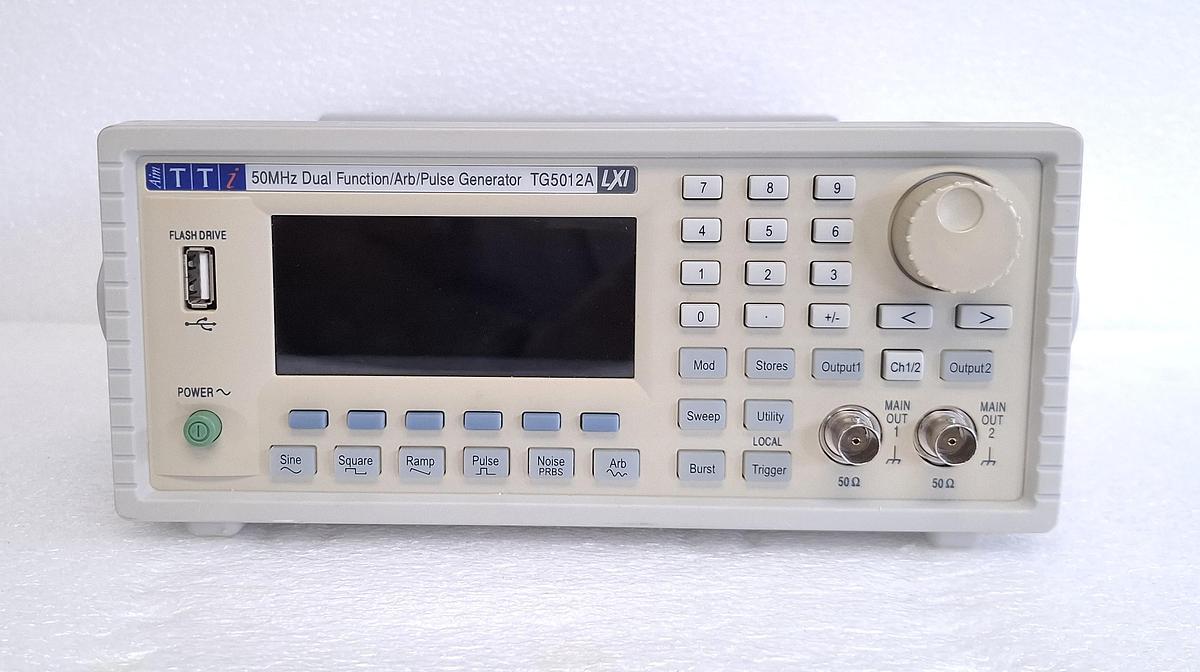

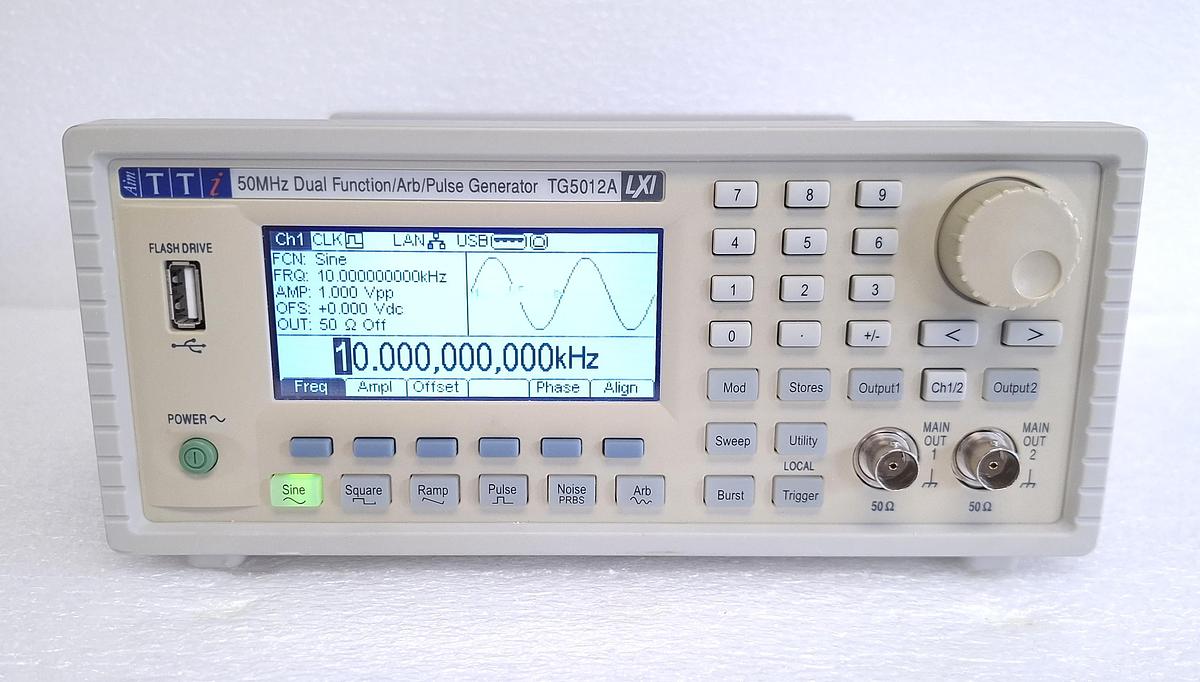

Aim-TTi TG5012A 50MHz Two Channel Function/Arbitrary/Pulse Generator

The TG5012A is a two channel version of the TG5011A and has identical features augmented by multi-channel capabilities including coupling for frequency and/or level, full tracking, and defined phase offset. The channels can also be used as completely independent generators and they represent excellent value for money when compared with buying two generators.

• One or two channels
• 0.001mHz to 50MHz; 14 digits or 1uHz resolution.
• Standard waveforms include sine, square, ramp, pulse, sin(x)/x, noise, exponential, logarithmic and PRBS.
• True pulse generator with variable delay and variable rise/fall.
• Arbitrary waveforms of up to 128K points at up to 125MS/s.
• Waveform storage using USB flash drives.

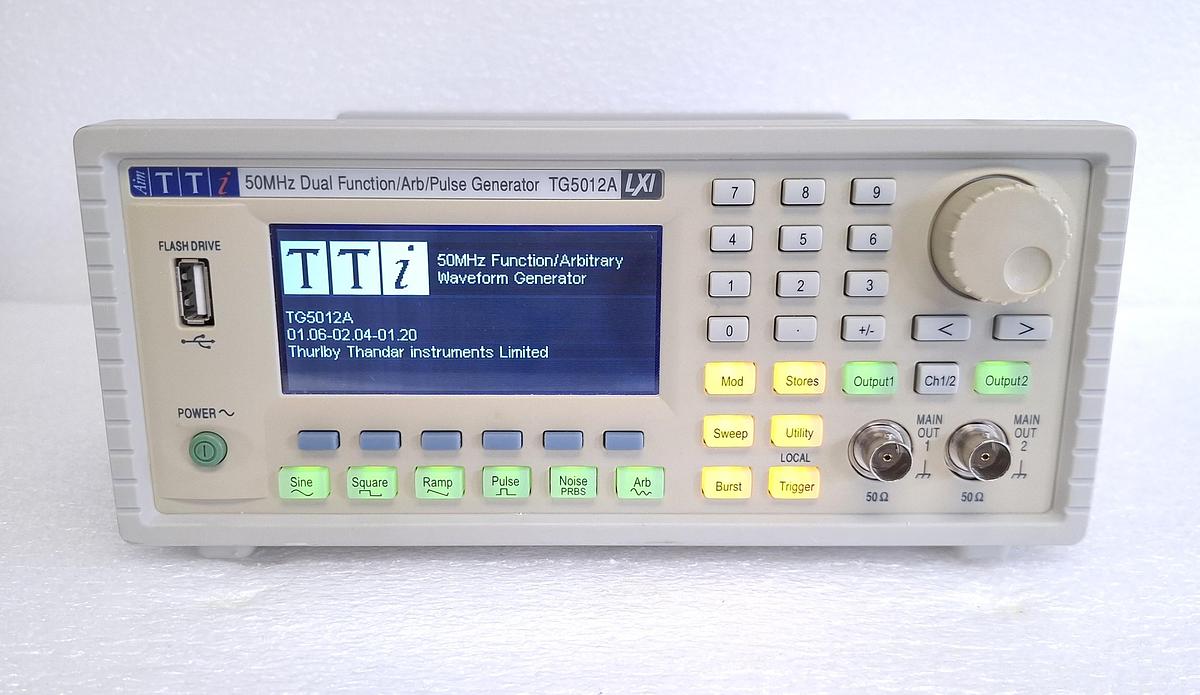

• Large graphic LCD with simultaneous text and waveform display.
• Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS.
• 20mV to 20V pk-pk output from 50Ohms ; plus multi function aux. out.
