Pico Technology PicoSource AS108

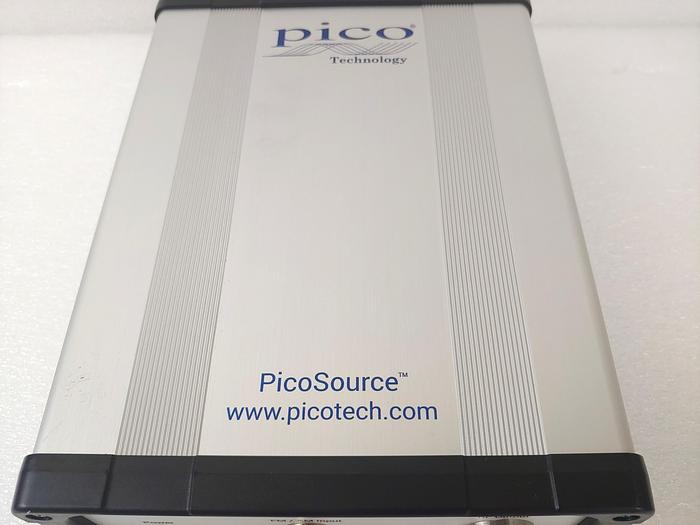

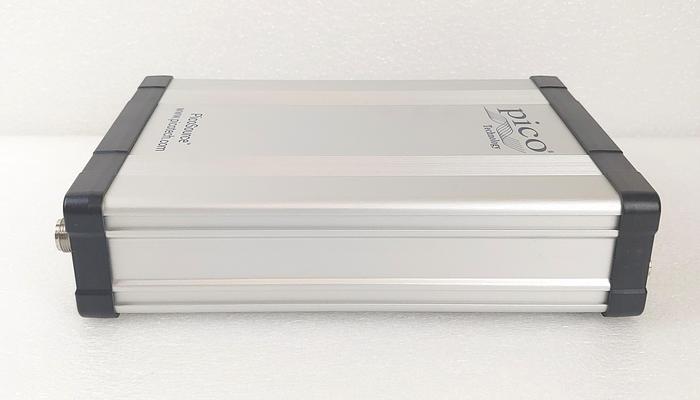

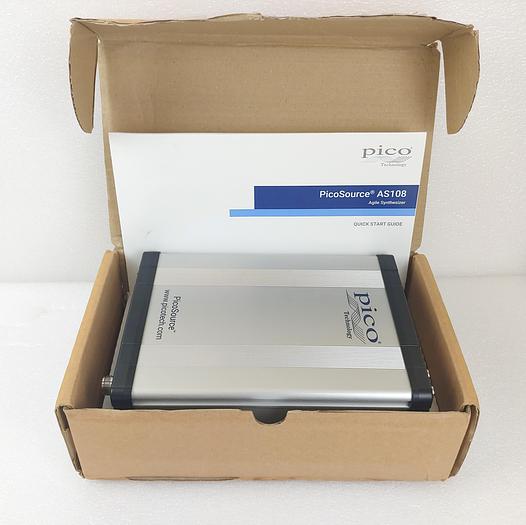

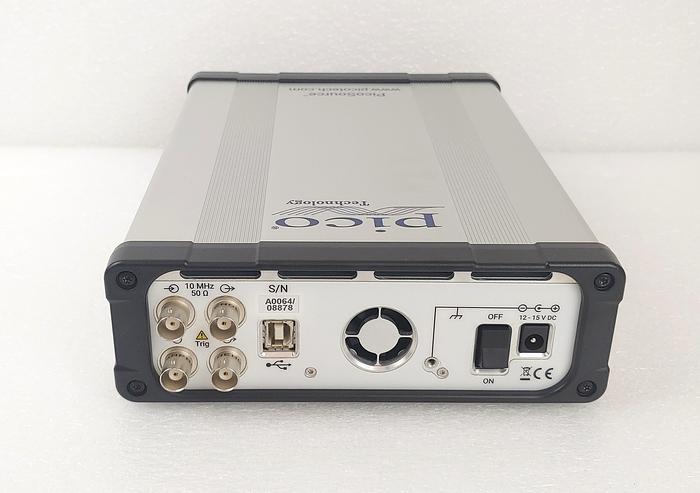

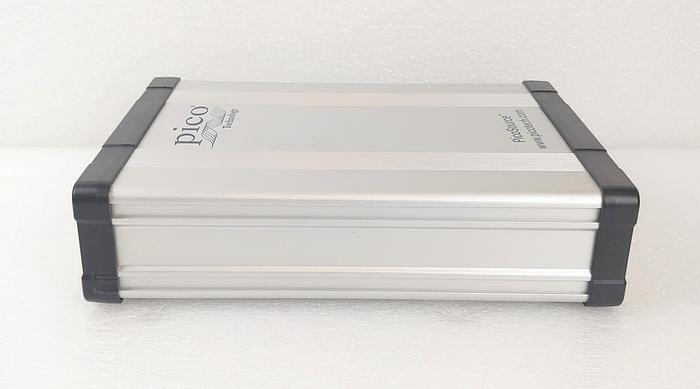

Pico Technology PicoSource AS108 Agile Synthesizer

The PicoSource™ AS108 Agile Synthesizer generates signals to meet the needs of both benchtop and integrated module applications. Its broad 300 kHz to 8 GHz frequency range, fast settling and programmable phase, frequency and amplitude match it to a wide range of applications, with the added advantages of low cost, small footprint and 12 to 15 V power requirement.

• 300 kHz to 8 GHz operation
• –15 dBm to +15 dBm dynamic range
• Fast 55 µs frequency settling time to 10 ppm
• Fast amplitude settling: < 25 µs to 1 dB and < 200 µs to 0.1 dB

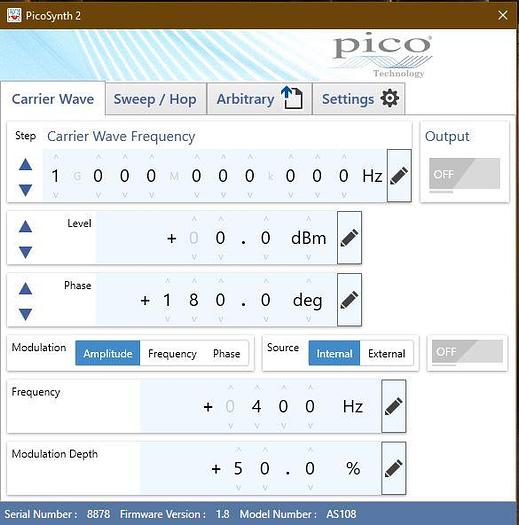

• Sweep, hop and list of frequency and level or list phase and level
• -100 dBc/Hz phase noise typical at 1 GHz and 10 kHz offset
