Pico Technology TA167

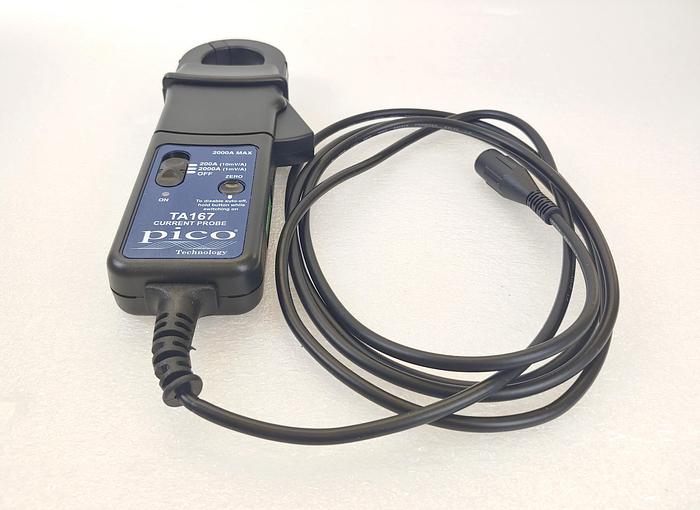

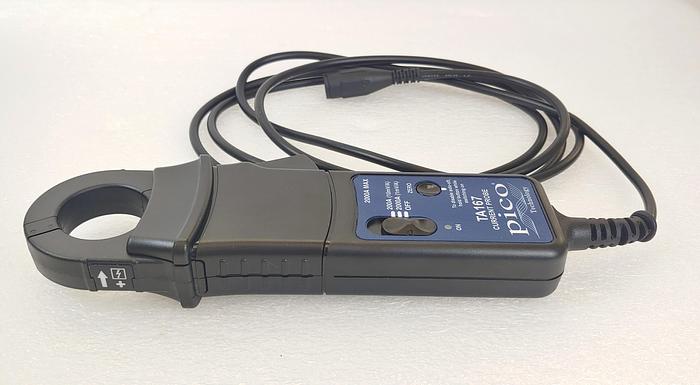

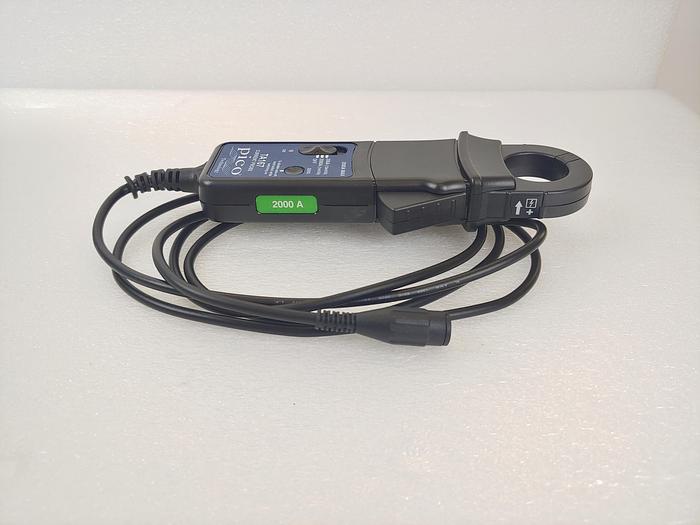

Pico Technology TA167 dual range AC/DC current probe

• Nominal current of 2000A AC PEAK or DC
• Overload capacity of 2200A (60s)
• Output sensitivity of 10/1mV/A
• ±100/±500mA resolution
• Frequency range from DC to 20kHz (-1dB)
• 9V alkaline battery PP3, MN 1604 or IEC6LR61
• Load impedance (minimum) 100Kohm and ≤ 100pF
• 32mm diameter conductor size
• 2m long coax terminated with safety BNC connector
• Operating temperature range from 0°C to +50°C
