Rohde & Schwarz (R&S) RTB2K-COM4

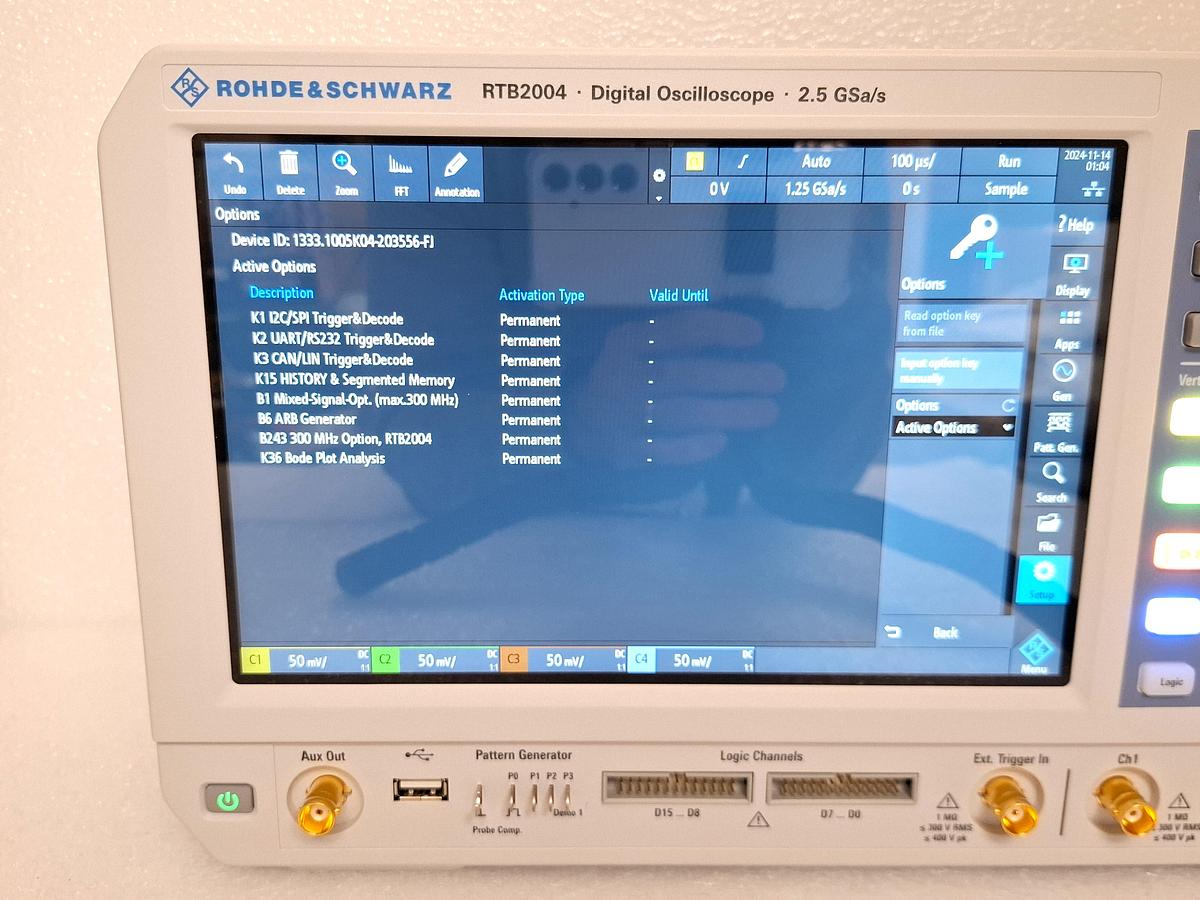

Rohde & Schwarz (R&S) RTB2K-COM4 (RTB2004+B243+B1+B6+PK1)

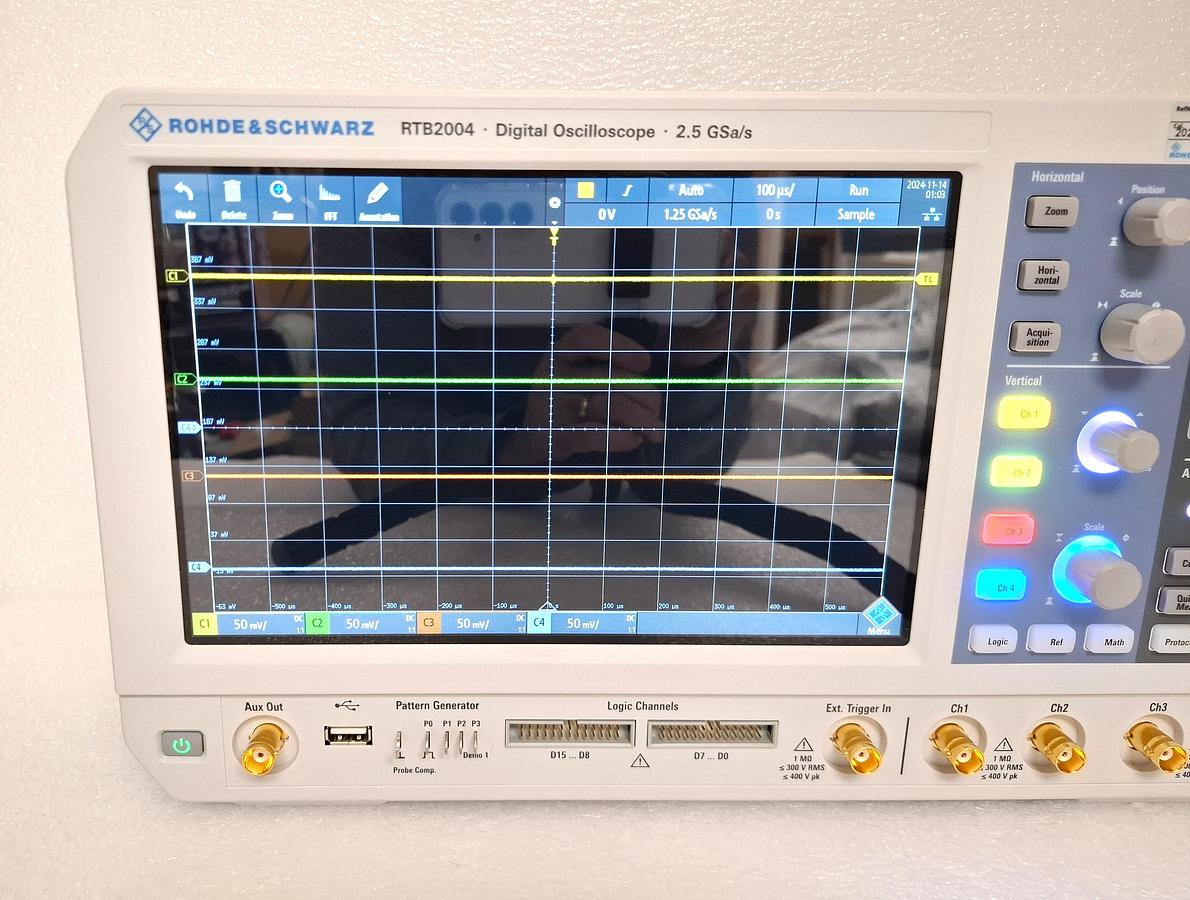

RTB2K-COM4 is a bundle of RTB2004 oscilloscope with software options (300MHz option, mixed signal option (MSO), ARB generator, application bundle). RTB2004 is a RTB2000 series 70MHz, 4 channel digital oscilloscope. It also includes a logic analyser, protocol analyser, waveform and pattern generator and digital voltmeter. This oscilloscope has 10.1" high resolution 1280 x 800 pixel capacitive touchscreen TFT display. Applications include education, general purpose, general R&D market, design and validate power conversion (e.g. DC-DC converter), power supply stability, R&D debugging – power supplies, R&D debugging serial buses, manufacturing test and repair this package includes protocol analyser, pattern and waveform generator, integrated digital voltmeter, frequency response analyser, trigger counter, trigger & decoding (I2C/SPI, UART/RS-232/422/485 an CAN/LIN).

• 10Msample standard and 20Msample interleaved, 50000 waveforms/s update rate
• Offers an outstanding sensitivity down to 1mV/div, full measurement bandwidth & low noise
• Math functions such as +, -, *, /, FFT (128Kpoints), autoset functions
• Maintain fast sampling rates of 1.25Gsample/s at all times
• Easily customizable waveform display with R&S SmartGrid technology
• Dimension of 390mm x 220mm x 152mm (15.4" x 8.66" x 5.98") (W x H x D), 2.5Kg weight
• Optimized parallel button operation, 16 digital channels
• Edge, width, video, pattern, line, serial bus standard trigger types
• USB host with MTP, USB device, LAN and powerful web server for remote display and operation
• Capture the longest time periods with class-leading 160Msample memory
