Keysight / Agilent DSOX1204G

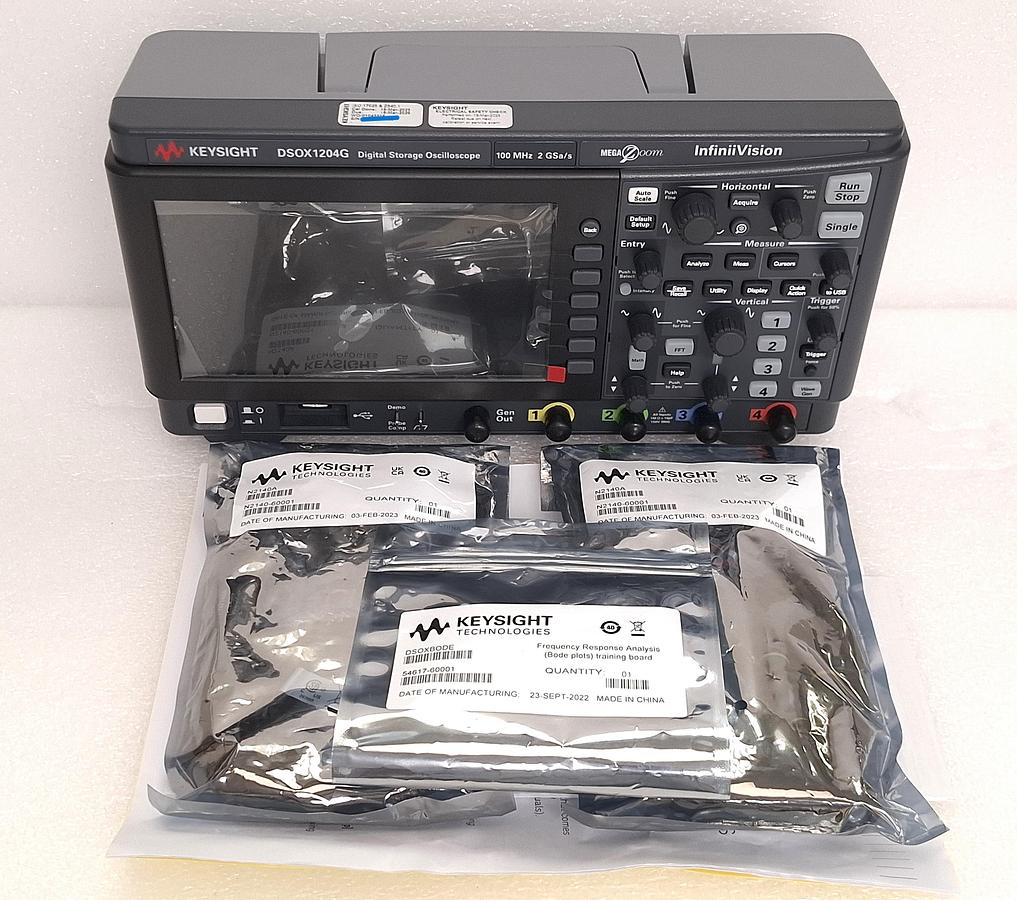

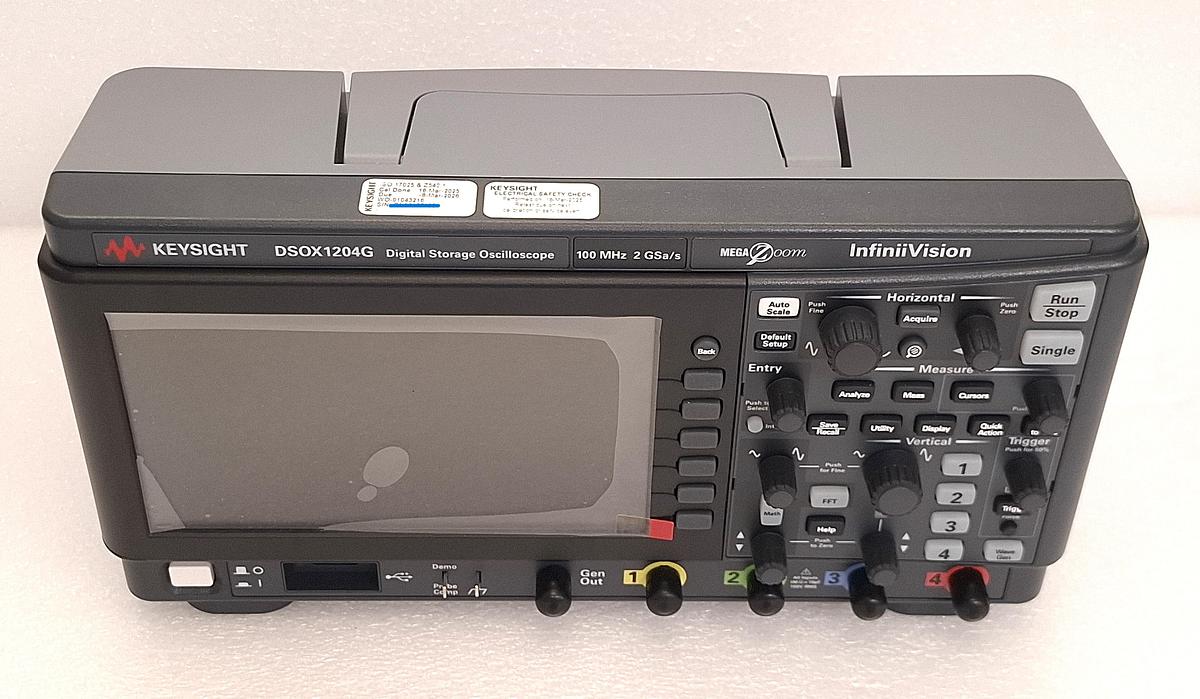

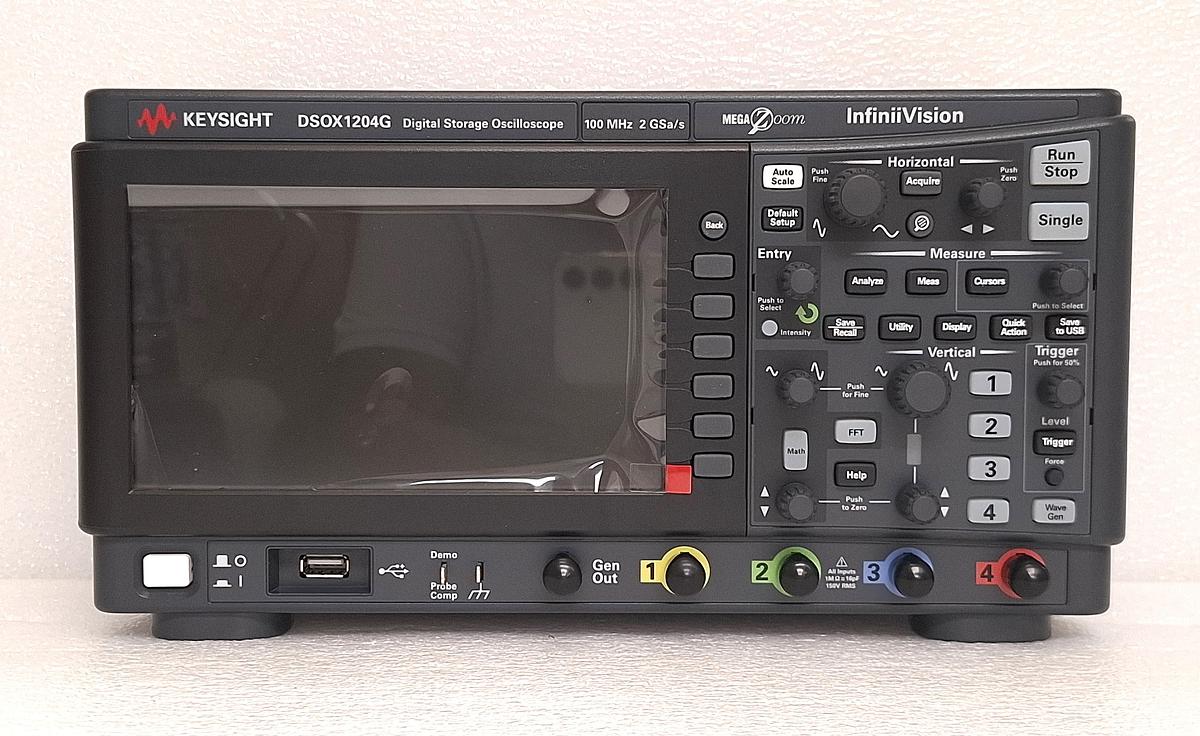

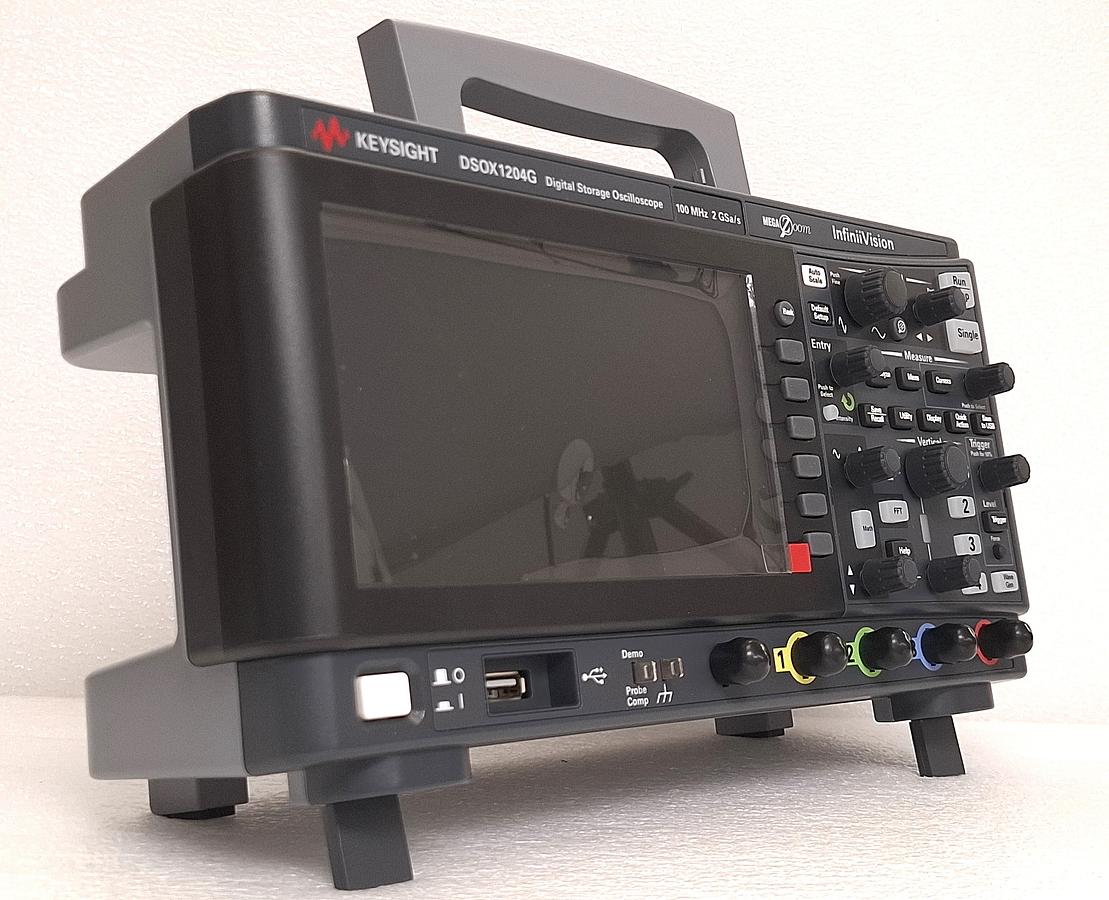

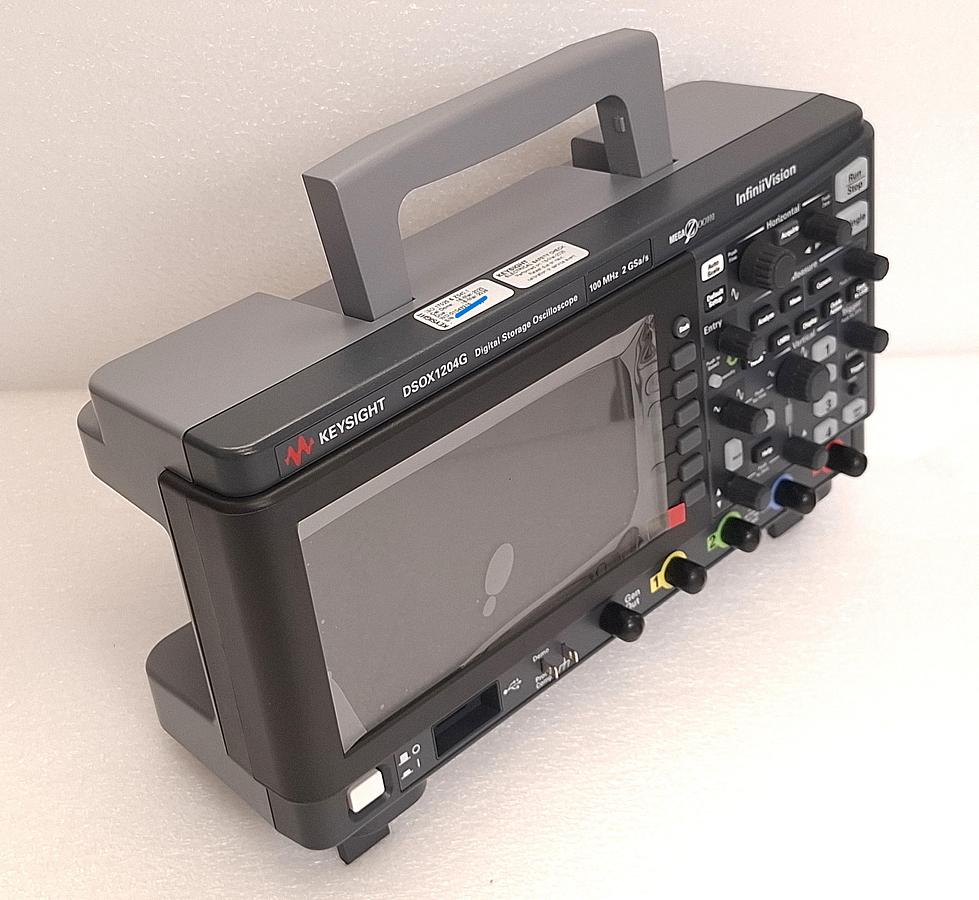

Keysight / Agilent DSOX1204G InfiniiVision Digital Oscilloscope

4 Channel, 100 MHz, 2 GSa/S

The DSOX1204G is an InfiniiVision 1000 X-series 4-channel, 70MHz (upgradeable with bandwidth options) digital signal oscilloscope with 20MHz function generator. The 1000 X-Series is a family of low-cost oscilloscopes that don’t compromise on quality. The 1000 X-Series offers an integrated 20MHz function generator with modulation capability. It’s ideal for educational or design labs where bench space and budget are at a premium. The integrated function generator provides stimulus output of sine, square, ramp, pulse, DC and noise waveforms to your device under test. Add modulation to the signal with customizable AM, FM and FSK settings.

DSOX1204G + DSOX1200A-100 is a InfiniiVision 1000 X-Series DSO with integrated function generator and 100MHz bandwidth upgrade (DSOX1200A-100 pre-installed). Ideal for industry, hobbyist, manufacturing and educators. Built-in training signals, free lab guides and on-board help enable you to set-up, capture, measure and document with ease.

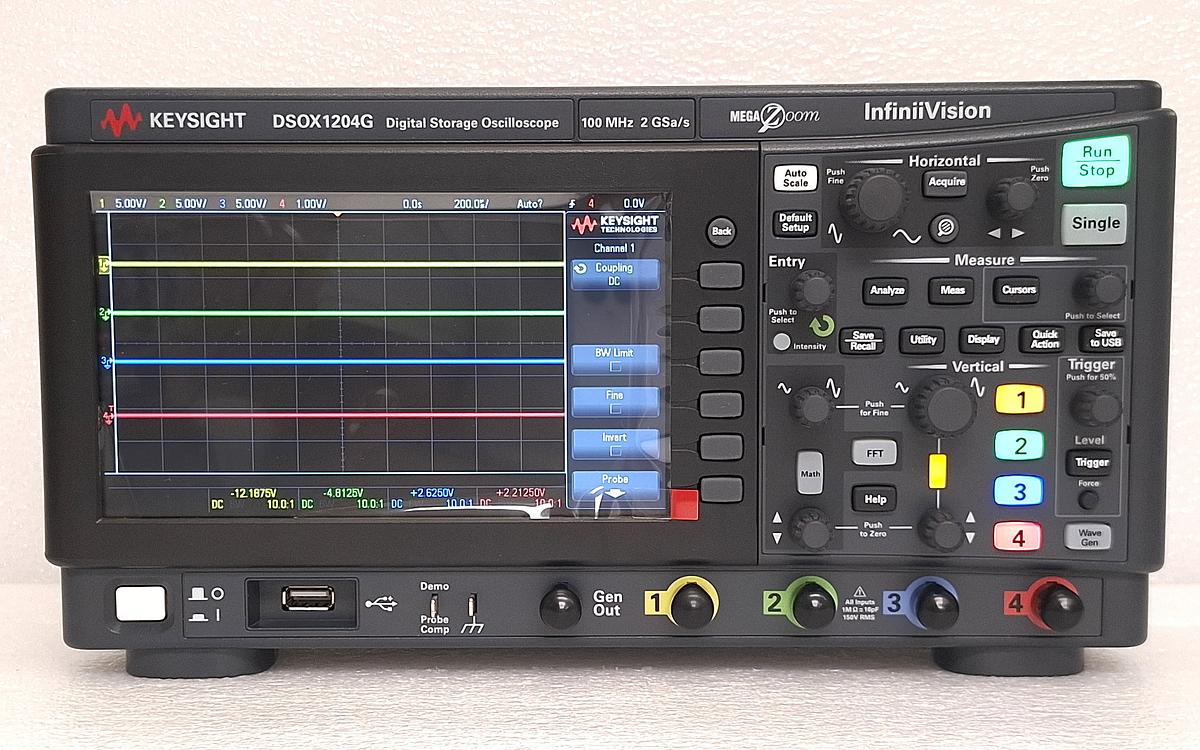

• 4 analogue channels with function generator
• Maximum sample rate is 2GSa/s
• Maximum memory depth is 1Mpts
• Fast 50,000 waveforms/second update rate enhances signal visibility
• Enhanced usability with BenchVue software to quickly capture and log measurement data

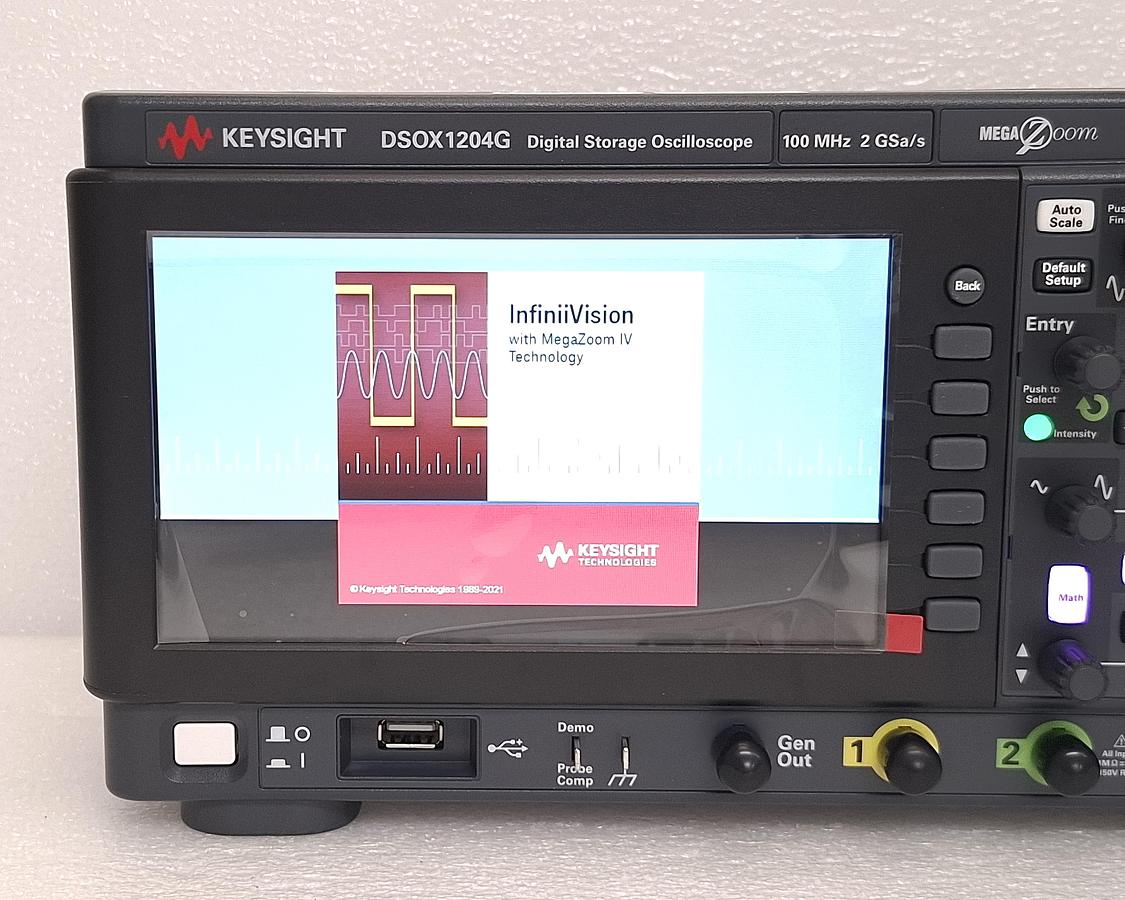

• 7inch TFT LCD WVGA display

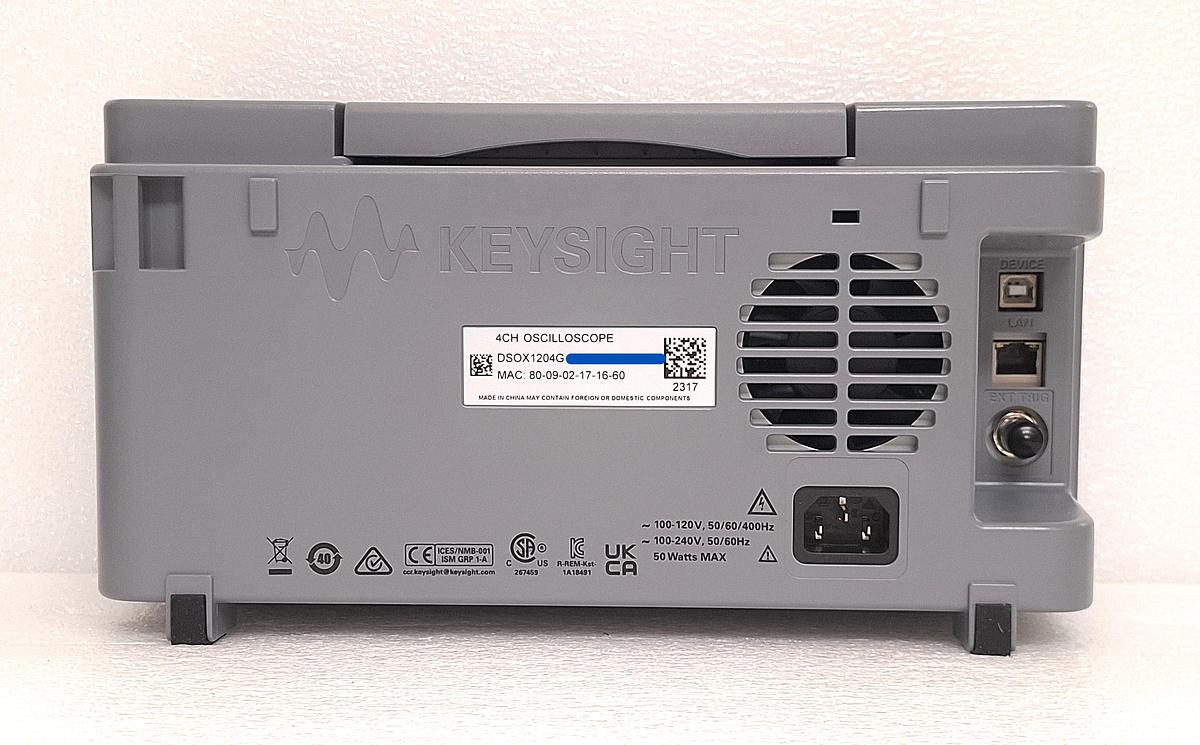

• External trigger : back panel input (not displayed)
• 200,000 waveforms per second waveform update rate
• I²C, SPI, UART/RS-232, CAN, LIN standard serial protocol analysis
• Features segmented memory, mask/limit testing
• Features built-in training signals, integrated digital voltmeter
• Features frequency counter
• Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter waveform math
• Automatic measurements as 14 amplitude, 14 timing and 4 pulse count measurements
• USB 2.0 (host and device), LAN connectivity
