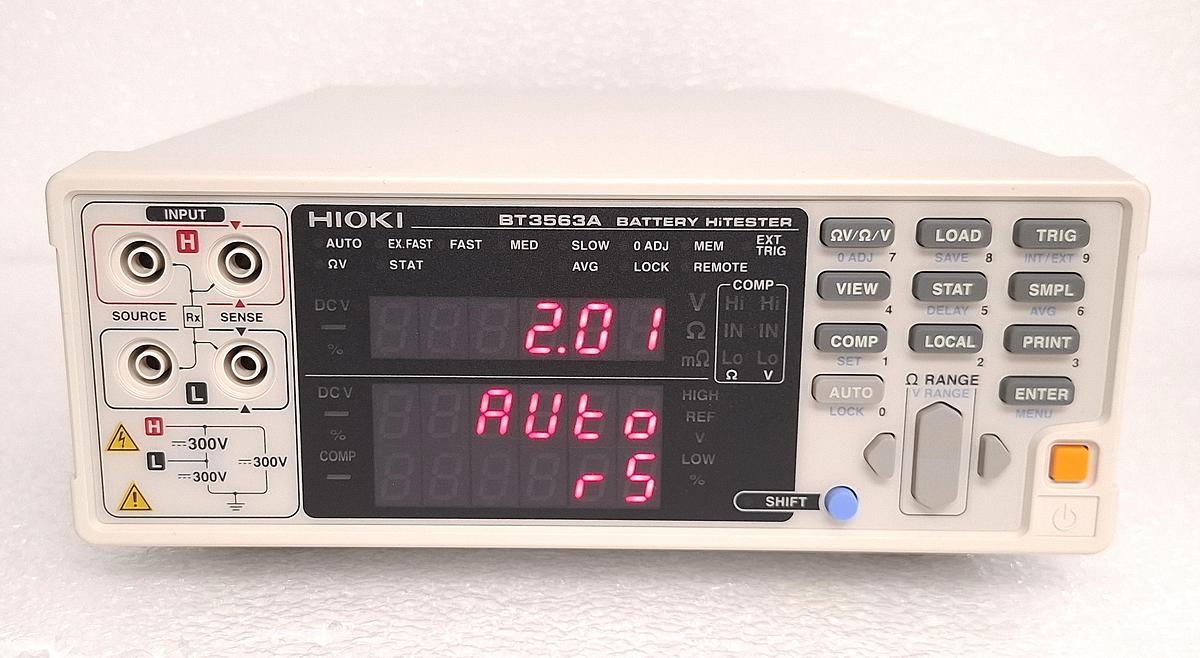

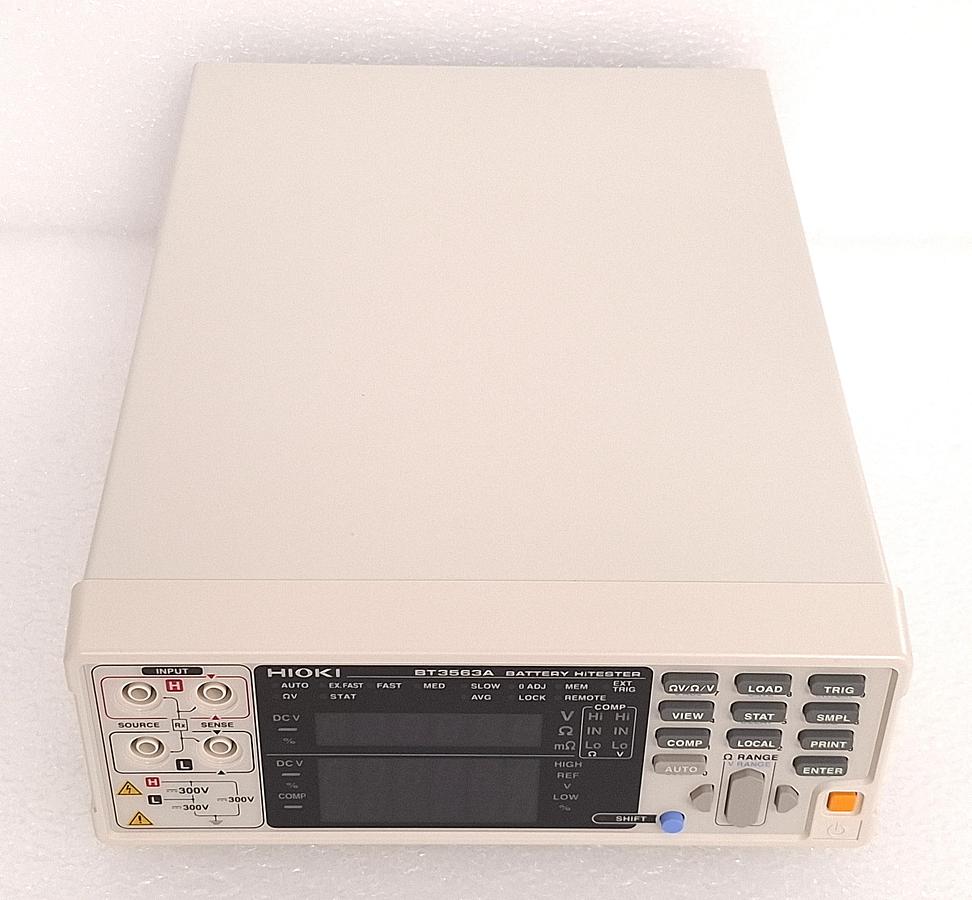

Hioki BT3563A

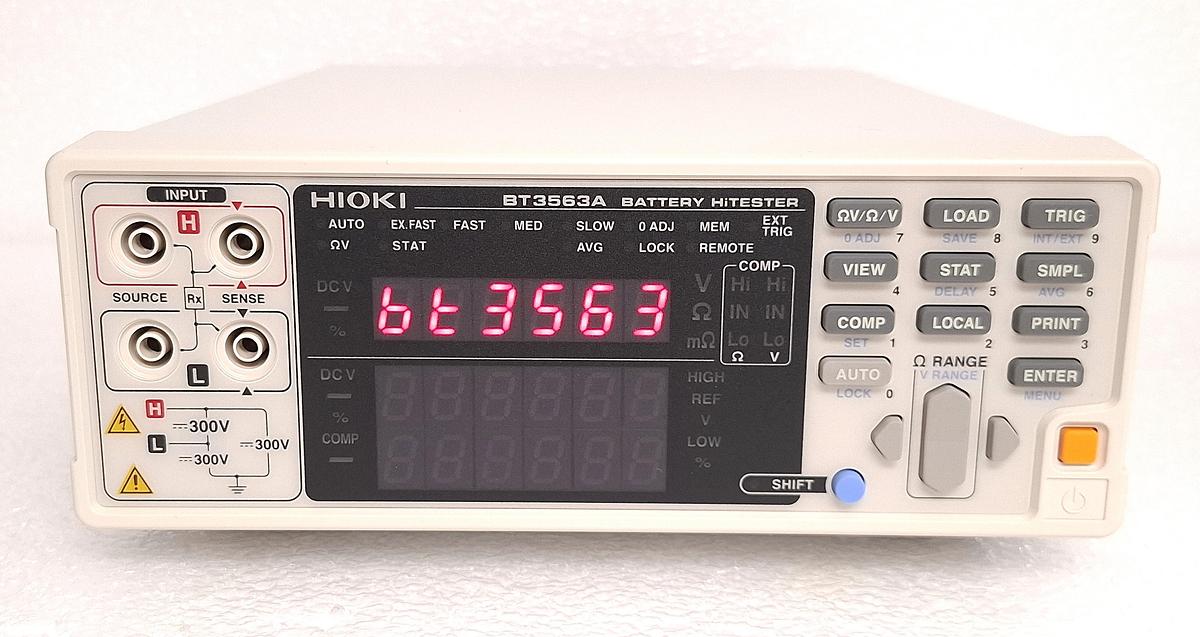

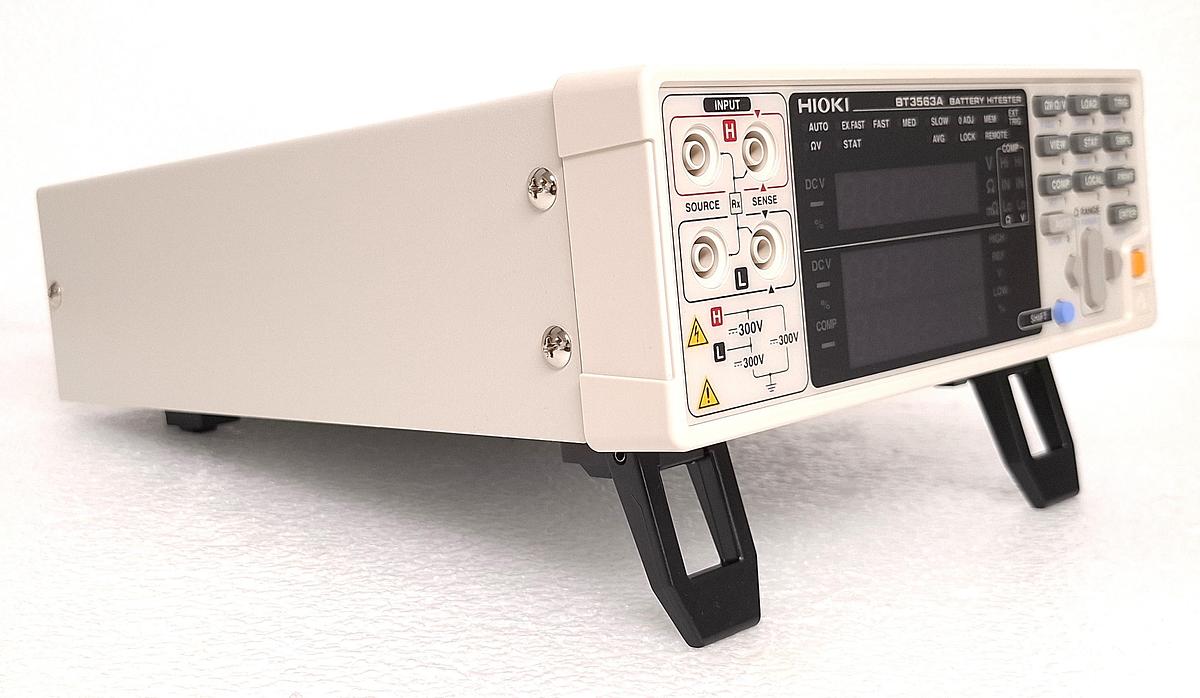

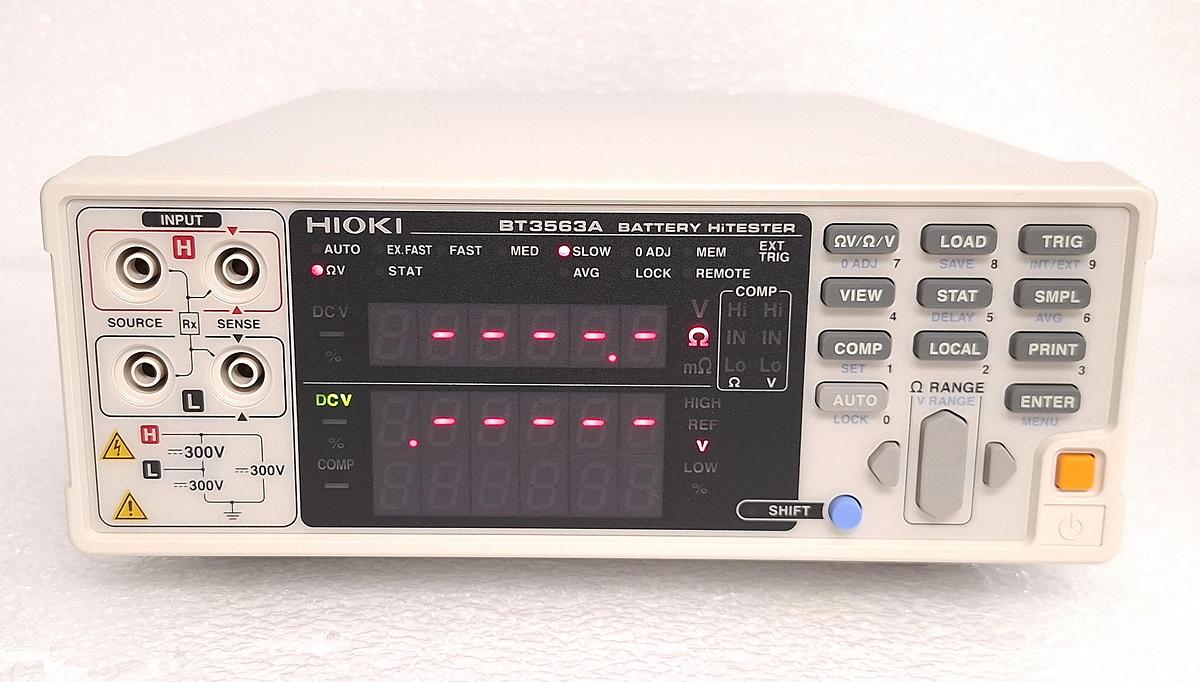

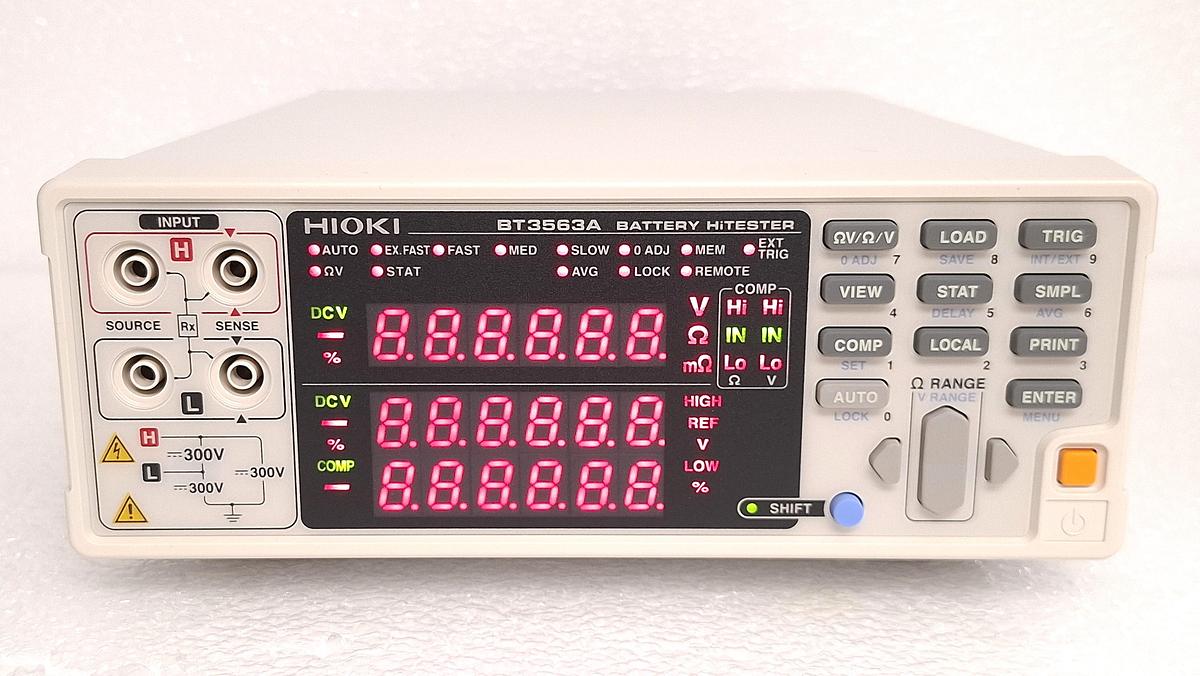

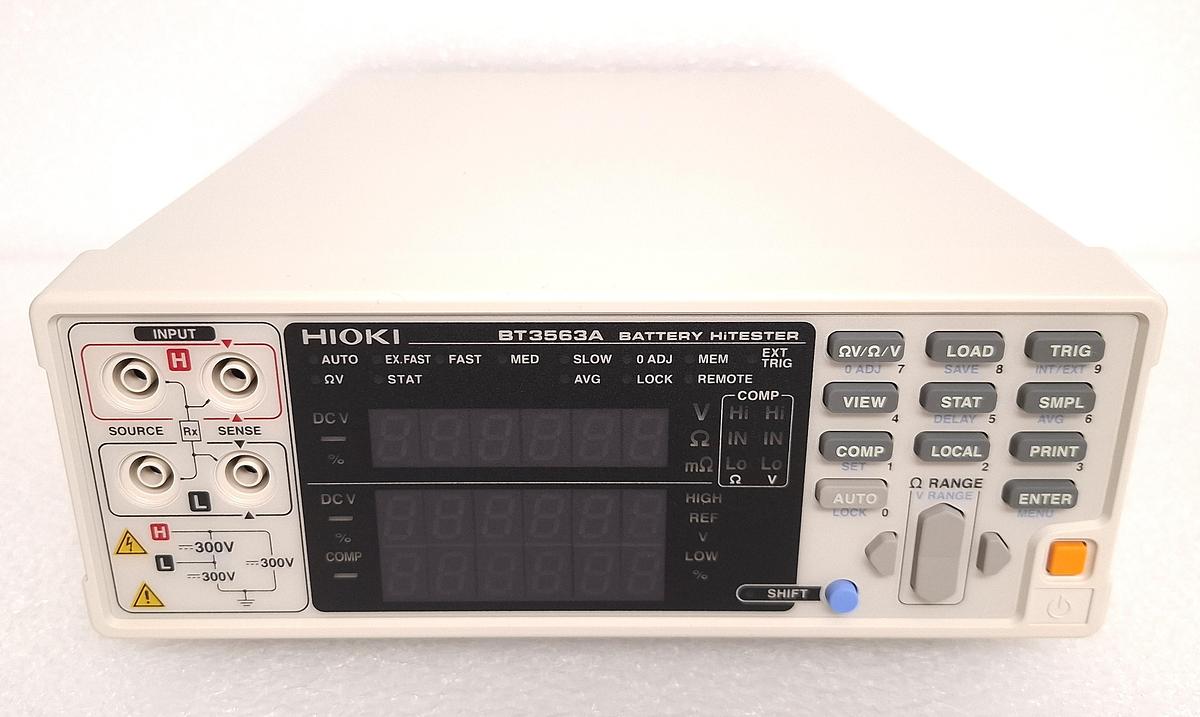

Hioki BT3563A Battery Tester, Lead Acid, Li-Ion, 300V

The Hioki BT3563A is a battery Hitester measure battery internal resistance using a four-terminal, 1-KHz AC method, while simultaneously measuring DC voltage (electromotive force [emf]). The high-precision, fast measurement performance and extensive interface capabilities make this model ideal for incorporating into battery testing production lines.

• Fully automated production line testing of large packs for xEVs or large packs of up to 300V
• Simultaneous measurement of internal resistance and open circuit voltage
• Resistance measurement ranges: 3mohm/30mohm/300mohm/3ohm/30 ohm/300 ohm/3Kohm
• Voltage measurement ranges: 6V/60V/300V

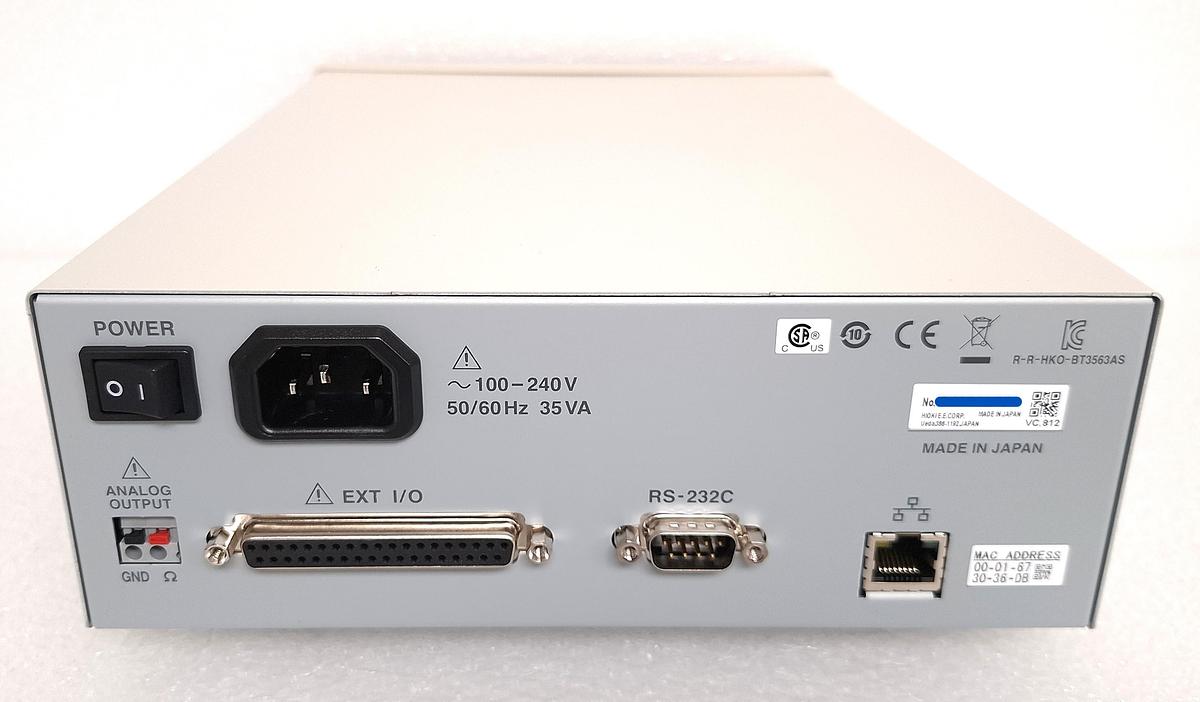

• EXT I/O, RS-232C and LAN interface
• Features contact check, zero adjustment (±1000counts), pulse measurement
• Comparator functions, statistical calculation functions, measurement value memory function
• Printing measurement values and statistical results
