Hioki CT6710

Hioki CT6710 Current Probe, 30A, BNC

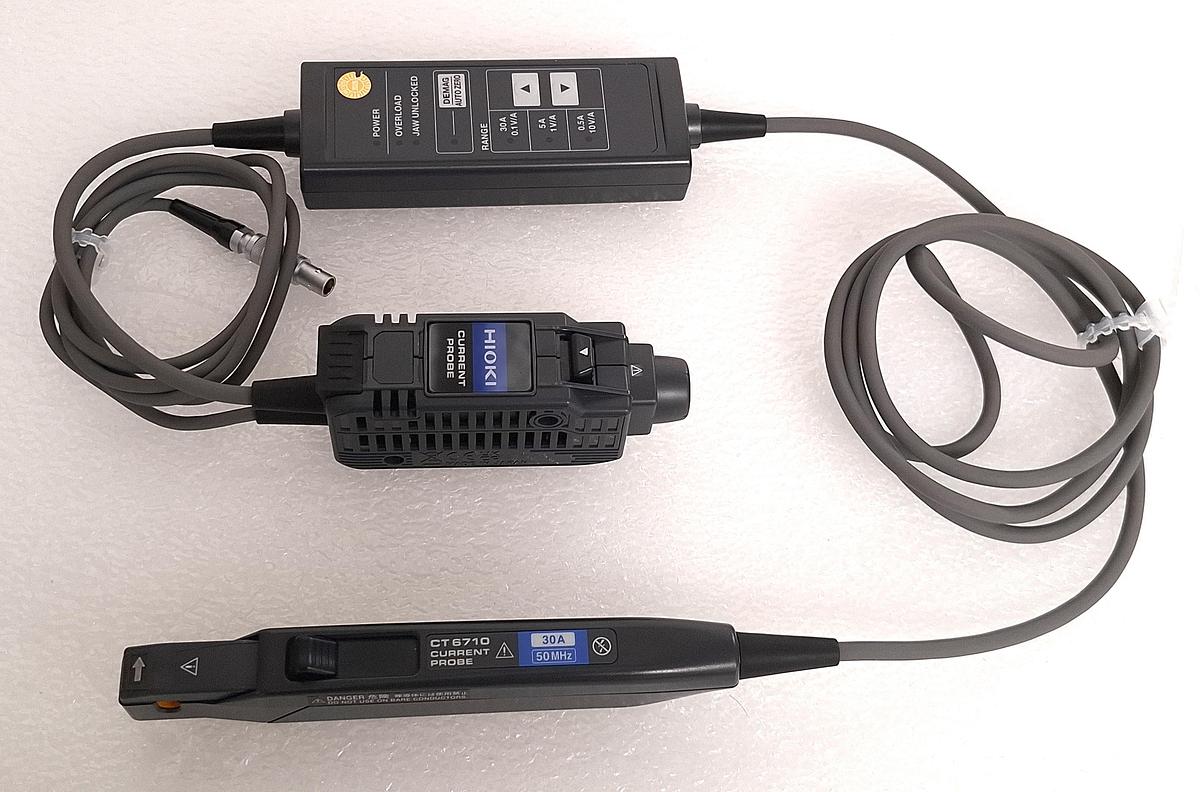

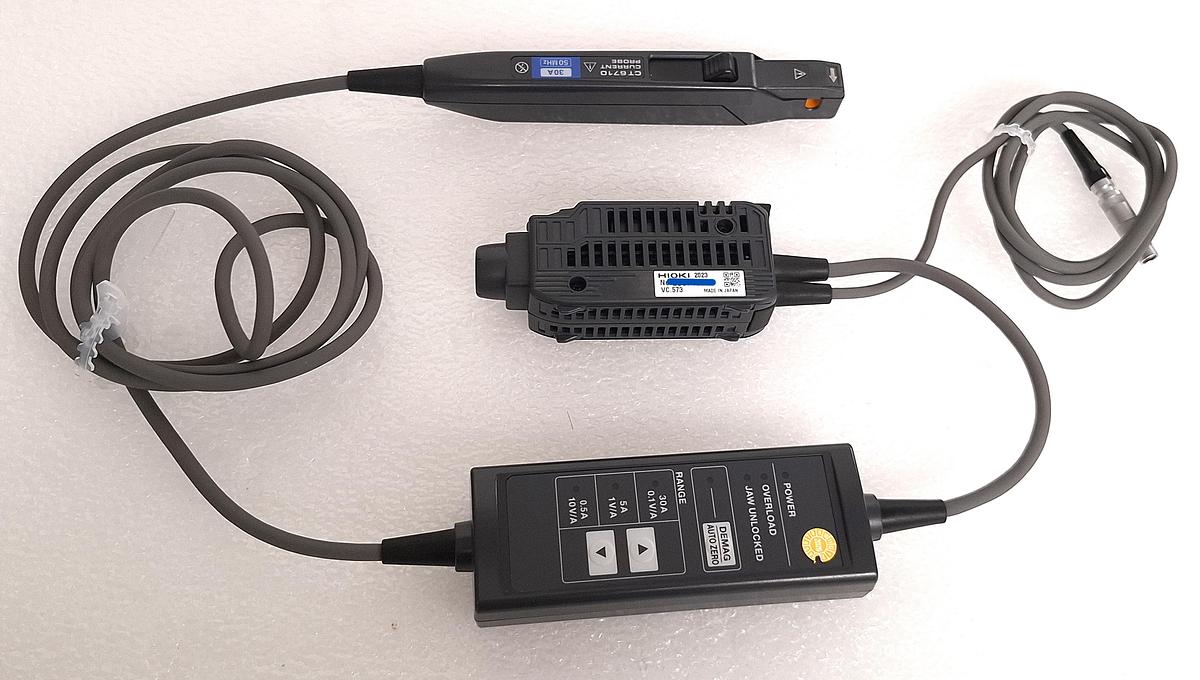

The Hioki CT6710 is a clamp-on current probe that features high current-detection sensitivity and broad frequency band. The probe uses three current ranges to detect current waveforms from 1mA to 50A. You can directly connect the termination unit to a BNC input terminal of your waveform measuring instrument such as an oscilloscope and recorder, and then clamp the sensor around a conductor to be measured to observe current waveforms easily.

• Capture inrush, micro and high-speed currents with a single probe
• 3 ranges in a single probe - 30A, 5A, 0.5A, observe a wide current range from micro currents to 30A
• High S/N ratio and 10 times output rate, observe waveforms at 100μA/div at oscilloscope
• Clamp-on sensor heads, sliding jaw retracting/extending mechanism
• Easy-to-connect output terminal
• Warning LED lights
• Broad frequency band range from DC to 50MHz
• Demagnetizing and automatic zero-adjustment functions
• Device automatically enters protection mode to prevent damaging itself when overheating
