Keysight E36103B

Keysight / Agilent E36103B Programmable Power Supply, 0-20V, 0-2A

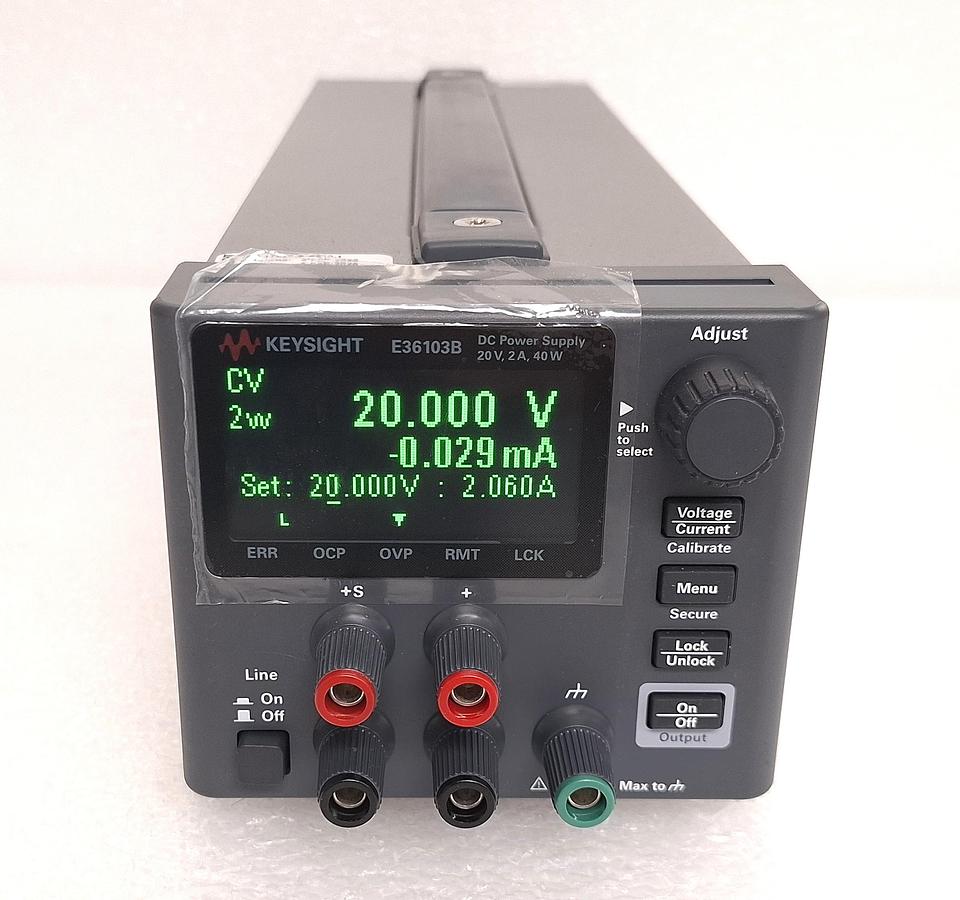

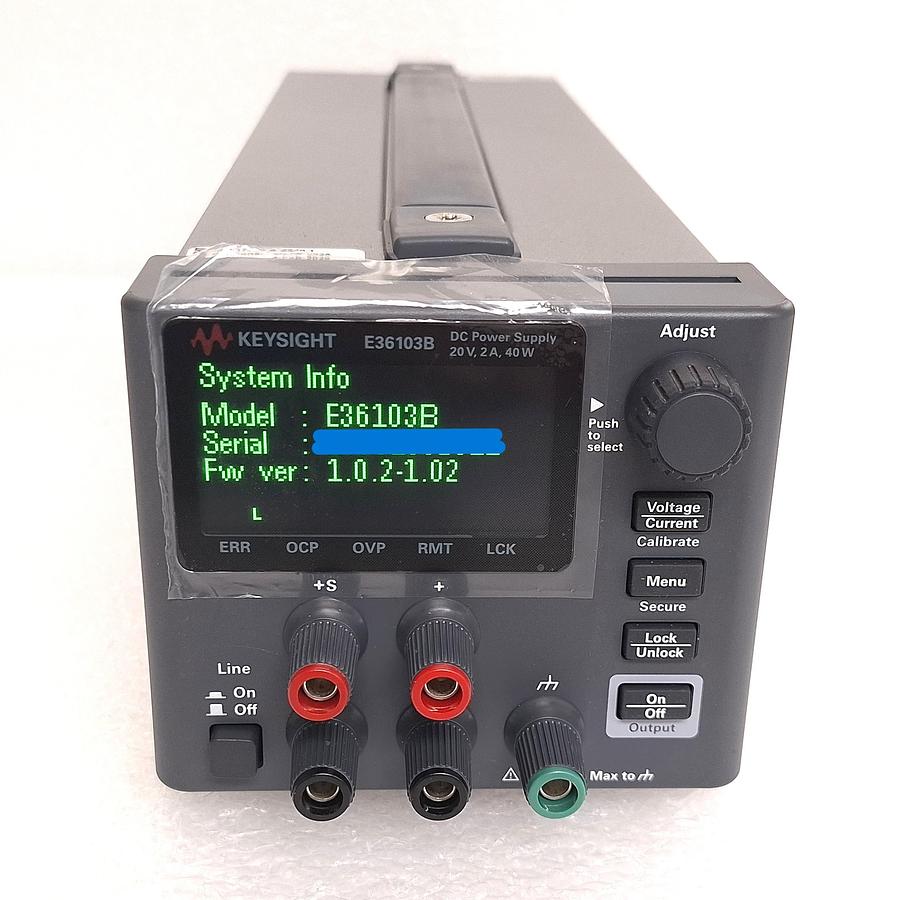

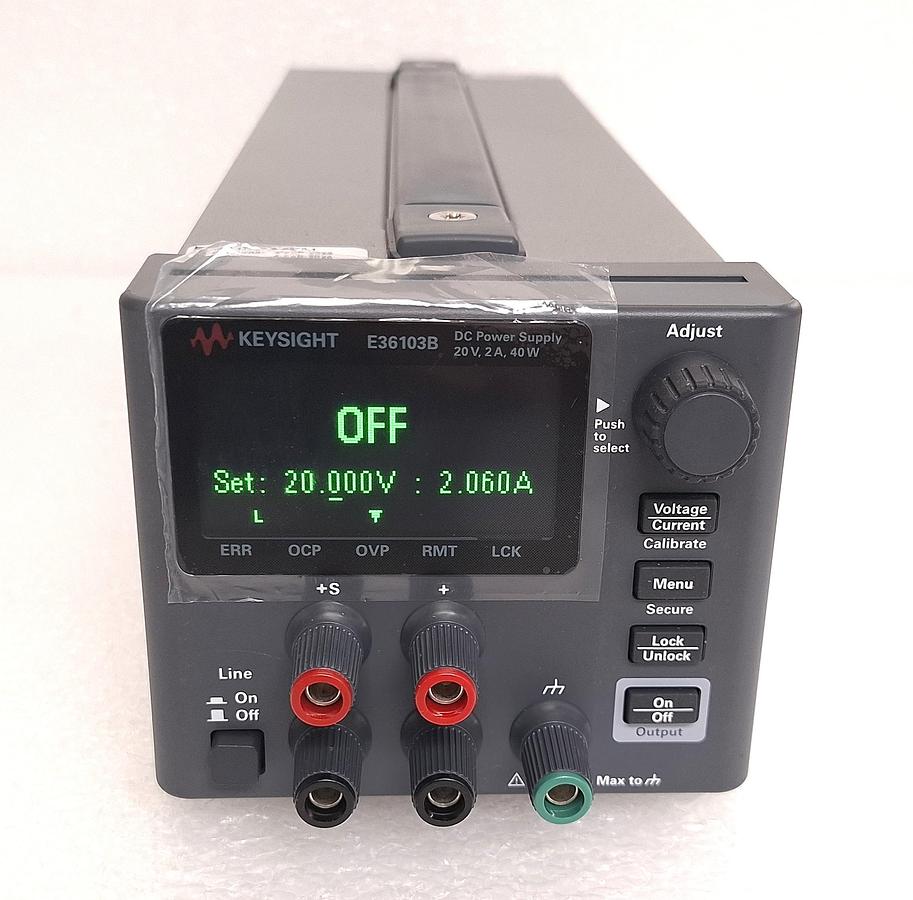

The Keysight E36103B is a single output programmable DC power supply. It is space saver on bench, 2U ¼-form factor power supply. It features a rotary knob for quick and easy configuration, connect for computer control with standard LAN (LXI Core) and USB connectivity, perform manual tasks quickly with the intuitive on-screen menu system, easily view the high contrast OLED display from anywhere on bench even from a sharp angle, protect device under test (DUT) with overvoltage and over-current detection, power DUT with confidence through excellent accuracy in programming and readback, accurate and reliable power, fast voltage/current setting and front-panel electronic calibration.

• DC output rating (0 to 40°C): 20V maximum voltage, 2A maximum current
• Output ripple and noise (20Hz to 20MHz): 0.8mV RMS, 15mV Pk-Pk
• Load regulation ±(% of output + offset): <lt/>0.01% + 3mV voltage, <lt/>0.02% + 100µA current
• Line regulation ±(% of output + offset): <lt/>0.01% + 2mV voltage, <lt/>0.02% + 100µA current
• Front panel lock prevents accidental changes during tests
• AC input: 100, 115 or 230V input (±10%), 47 to 63Hz, 200VA
• Operating temperature range from 0 to 40°C, ability to measure small currents
• Output terminals, sense terminals, dual-position power switch
• Earth ground reference point, output enable/disable switch to protect your DUT quickly
