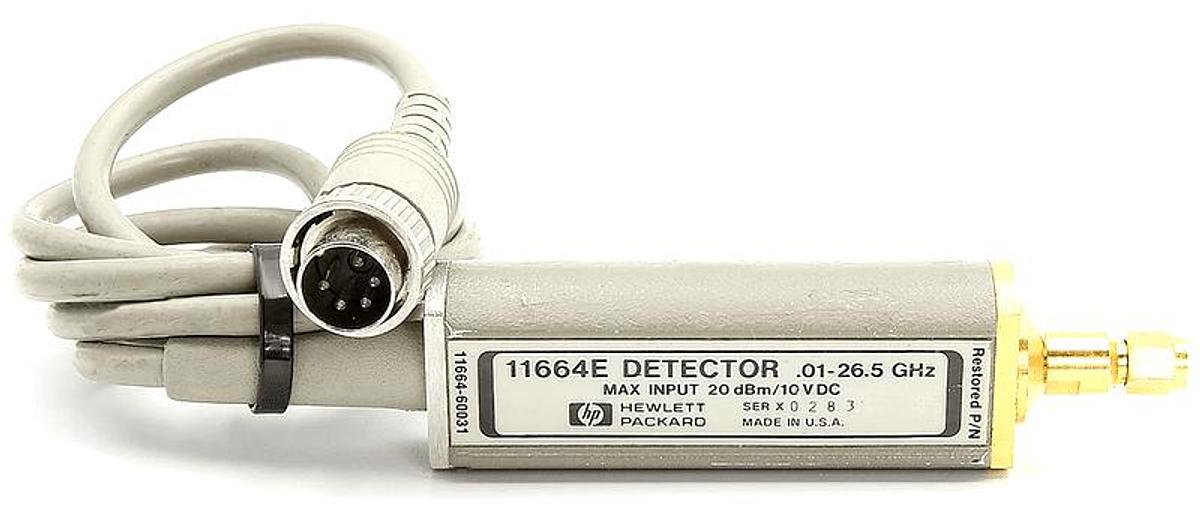

Agilent / HP 11664E

HP / Agilent 11664E Detector .01 to 26.5 GHz

The HP 11664E Detector is designed to operate with the HP 8757, 8756, and 8755 Scalar Analyzers in AC mode only. The 11664E detects the envelope of the 27.8 kHz modulated RF signal to be displayed on the scalar network analyzer.

• Frequency Range: 10 MHz to 26.5 GHz
• Range: +16 dBm to -60 dBm
• Maximum input power: +20 dBm (100 mW)
• Input impedance: 50 ohms
• Connector: APC-3.5 mm(m)
