Agilent / HP 11664A

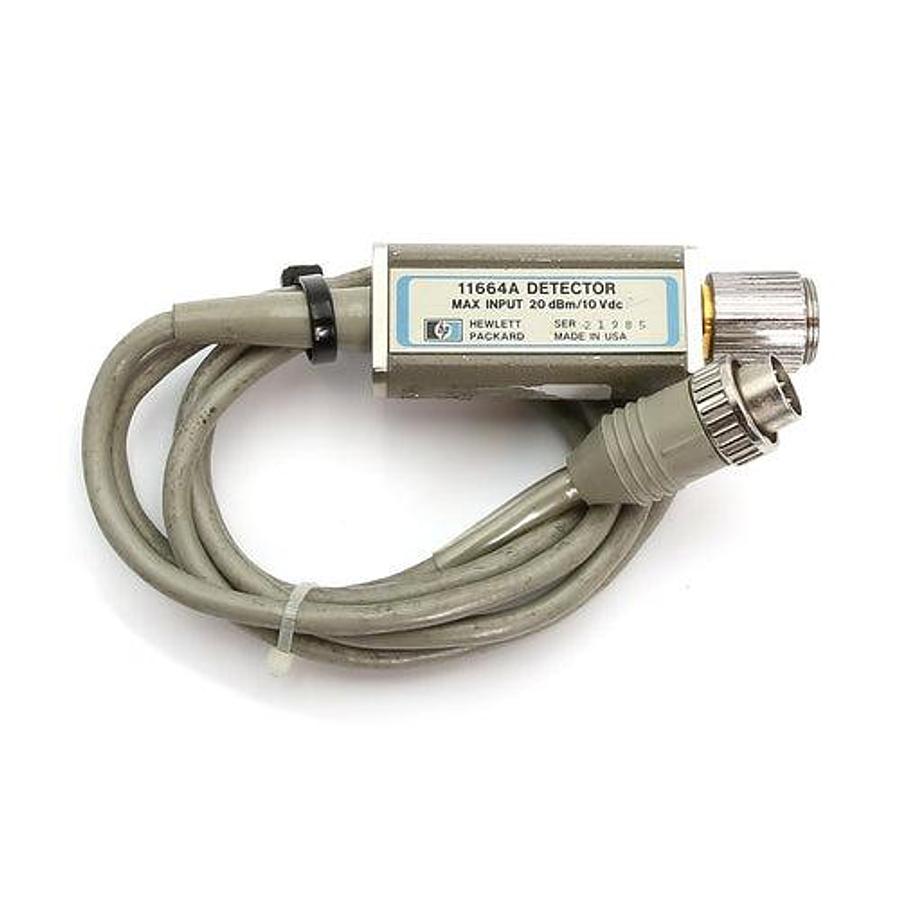

Agilent / HP 11664A Detector, 10 MHz to 18 GHz

The HP 11664A Detector is designed to operate with the Agilent 8757, 8756, and 8755 Scalar Analyzers in AC mode only. The 11664A detects the envelope of the 27.8 kHz modulated RF signal to be displayed on the scalar network analyzer.

• Frequency Range: 10 MHz to 18 GHz
• Range: +16 dBm to -60 dBm
• Maximum input power: +20 dBm (100 mW)
• Input impedance: 50 ohms
