Agilent / HP 11666A

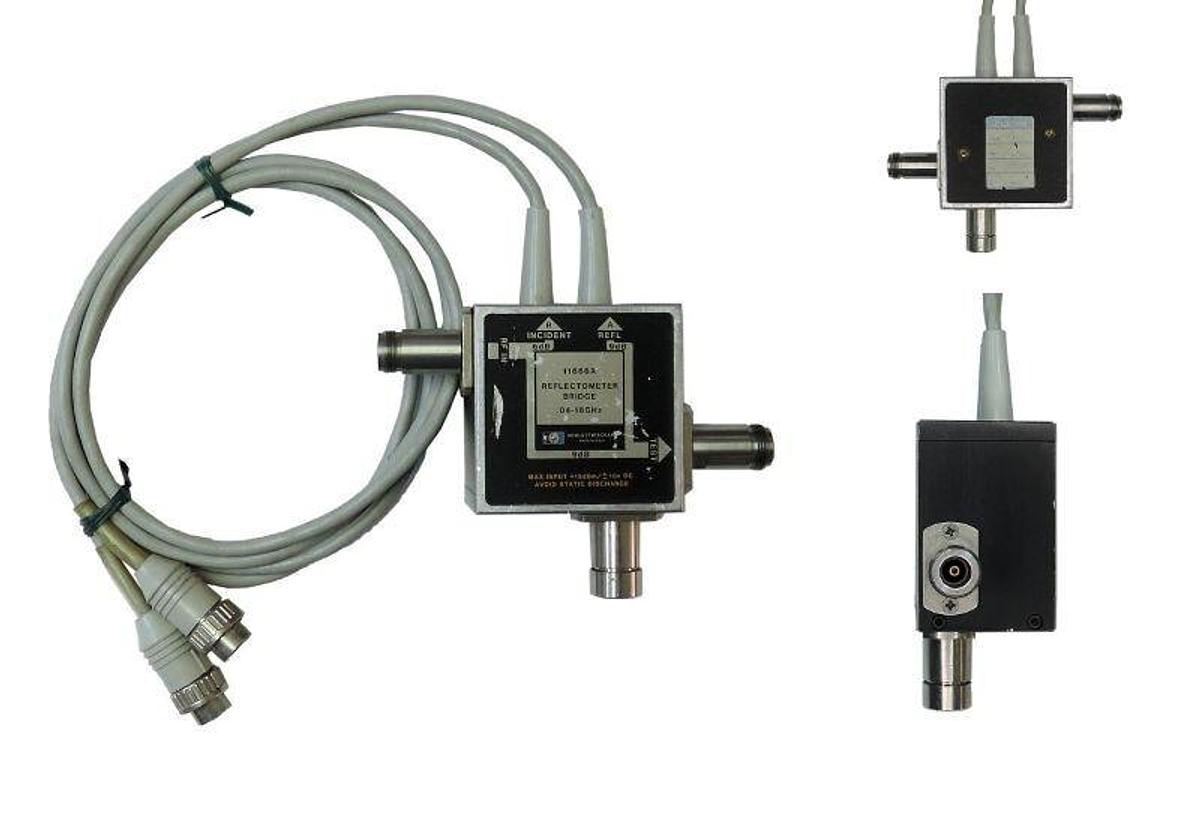

Agilent / HP 11666A Reflectometer Bridge, 40 MHz to 18 GHz

The HP 11666A is a 40 MHz to 18 GHz Reflectometer Bridge is designed to work with the HP 8755A Swept Amplitude Analyzer.The model 8755A with the 11666A, 11665B, and 11664A measures amplitude levels of -50 dBm to +10 dBm and amplitude ratios of 60 dB over a frequency range of 40 MHz to 18 GHz.

• Frequency Range: 40 MHz to 18 GHz.
• Input SWR: 1.92.
• Maximum Input Power: + 15 dBm
• Connectors: Type N-Female on input and output. APC-7 Optional.
