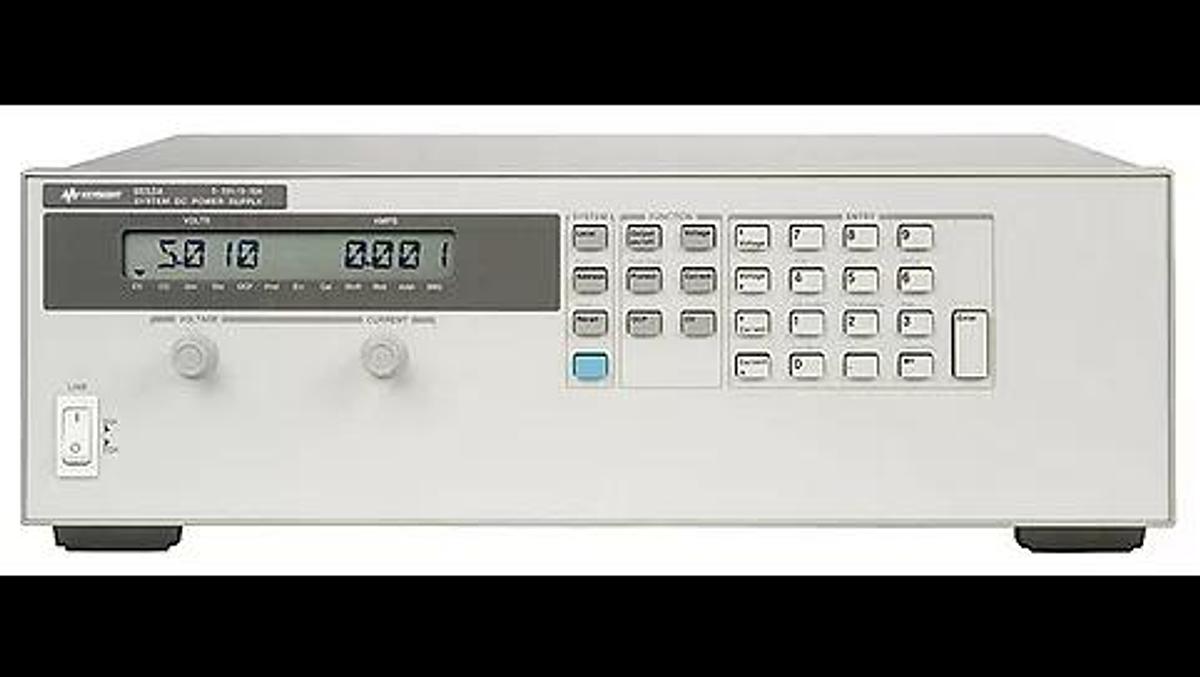

Keysight / Agilent 6653A

Keysight / Agilent 6653A 500 Watt System Power Supply, 35V, 15A

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 500W GPIB 665x series provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.

The Keysight 525W, single output 6653A is a fast and flexible power supply or automated testing, and is designed to increase test throughput with fast up- and down programming times.

Output Ratings

• Output voltage: 0 to 35 V
• Output current (40°C): 0 to 15 A
• Maximum current (50°C/55°C): 13.5 A/12.8 A

Programming Accuracy at 25°C ±5°C

• Voltage 0.06% + 15 mV
• Current 0.15% + 13 mA

Ripple & Noise from 20 Hz to 20 MHz

• Voltage rms: 400 µV
• Peak-to-Peak: 4 mV
• Current rms: 5 mA
