Anritsu MG3710A

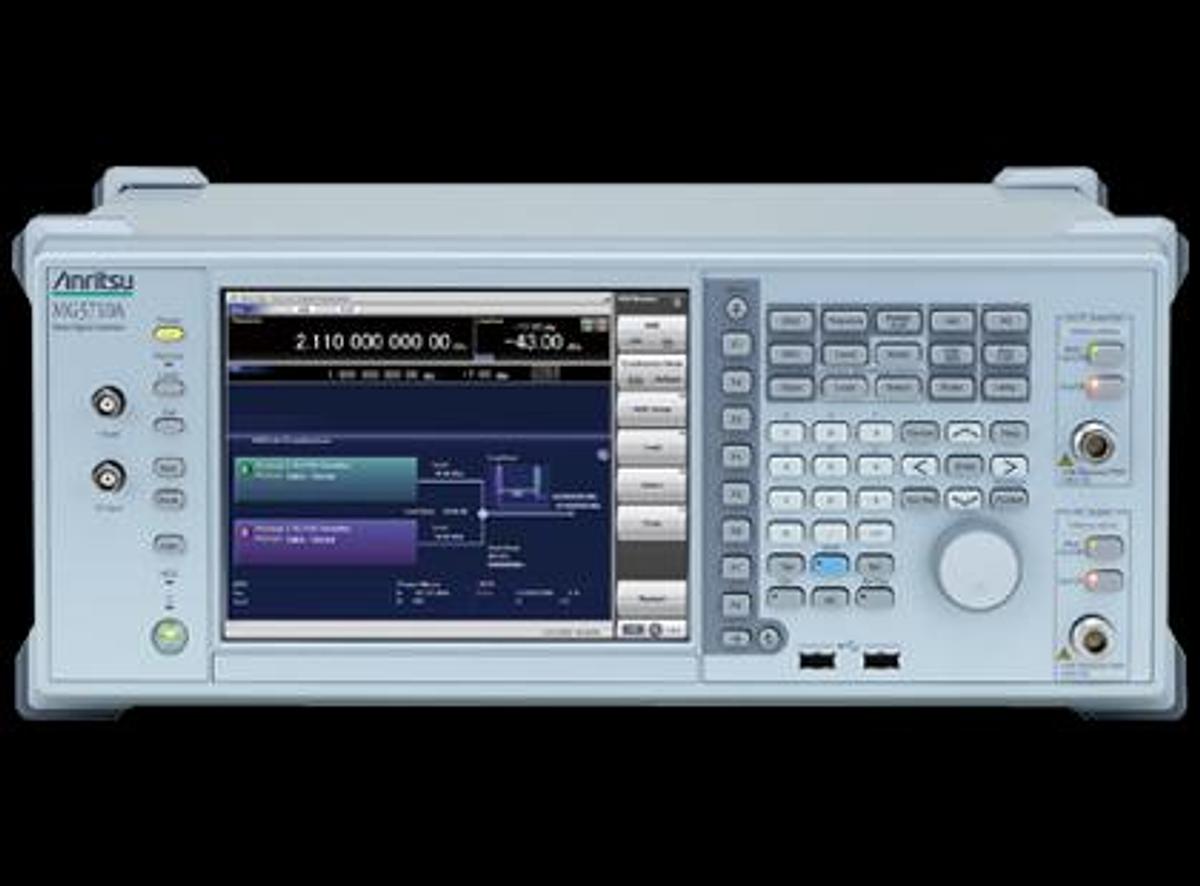

Anritsu MG3710A Vector Signal Generator (6GHz Dual output)

The Vector Signal Generator MG3710A is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710A features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single MG3710A to output up to four independently modulated signals. The MG3710A makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators, such as:

• Wanted + Interference Signals for Receiver Blocking Testing
• Wanted + Two CW Tones for Receiver Intermodulation Testing
• Wanted + Delayed Signals for Multipath Testing
• Multiple Wanted Signals for MIMO Testing
• Multiple Wanted Signals for LTE-Advanced Carrier Aggregation Testing

For these multi-signal applications, the MG3710A eliminates the cost of extra signal generators, simplifies equipment setup and calibration, streamlines system operations and speeds measurement times.

Options Available

036- 1stRF 100 kHz to 6 GHz

041- High Power Extension for 1stRF

046- ARB Memory Upgrade 1024 Msample for 1stRF

048- Combination of Baseband Signal for 1stRF

049 - AWGN for 1stRF

066- 2ndRF 100 kHz to 6 GHz

071-High Power Extension for 2ndRF

076-ARB Memory Upgrade 1024 Msample for 2ndRF

078-Combination of Baseband Signal for 2ndRF

079-AWGN for 2ndRF

Software Available: IQproducer, MX370108A - LTE IQproducer, MX370110A - LTE TDD IQproducer
