Anritsu MS2692A

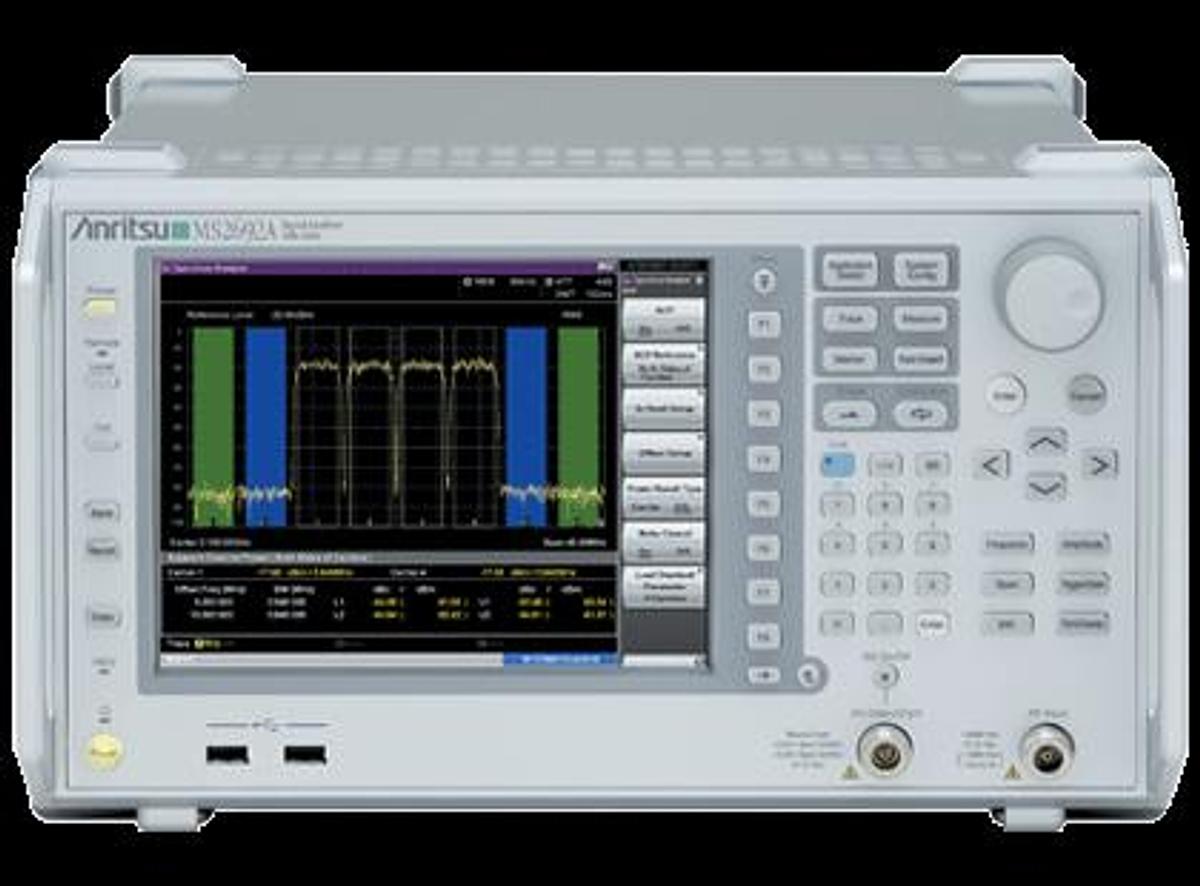

Anritsu MS2692A Signal Analyzer (50 Hz to 26.5 GHz)

The MS269xA Series Signal Analyzers support a standard analysis bandwidth of 31.25 MHz that can be extended to 62.5 MHz /125 MHz with optional hardware. Using a patented calibration process, the multipoint amplitude calibration and the phase calibration result in a level accuracy of ±0.5 dB across a 6 GHz span. No other analyzer on the market can meet that specification! These boxes are superlative in every way -- they measure the widest signals and using the latest technology, make measurements faster than ever before. The modular architecture ensures a box that grows as measurement requirements change.

Options Available:

001-Rubidium Reference Oscillator

008-6 GHz Preamplifier (100 kHz to 6 GHz)

020-Vector Signal Generator (125 MHz to 6 GHz)

277-Analysis Bandwidth Extension to 62.5MHz Retrofit

278-Analysis Bandwidth Extension to 125 MHz Retrofit

Measuremnt Software:

MX269000A - STANDARD SOFTWRE

LTE/LTE-Advanced (FDD)

MX269021A LTE Uplink Measurement Software

MX269021A-001 LTE-Advanced FDD Uplink Measurement Software
