NI USB-6009

National Instruments USB-6009 Multifunction I/O Device

(48 kSPS, 14 bit, 8 Input, 2 Output, DAQmx Device)

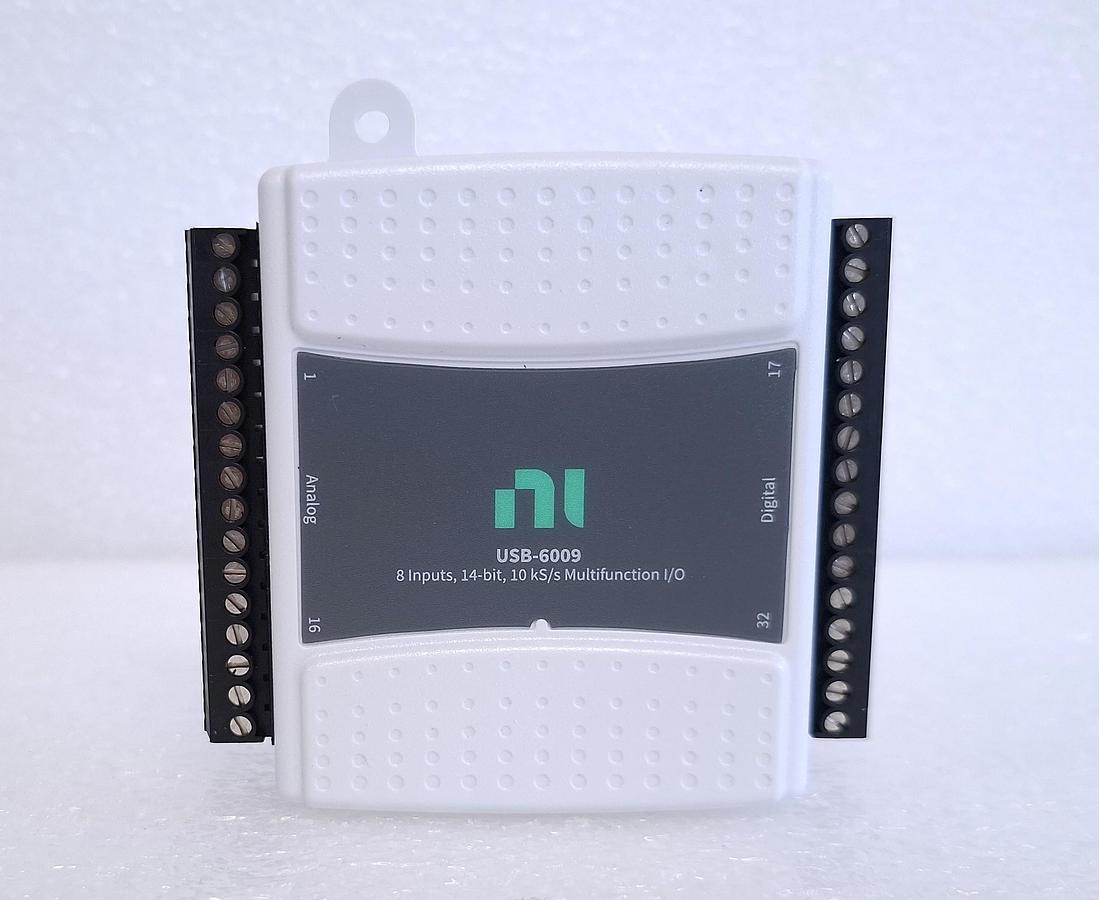

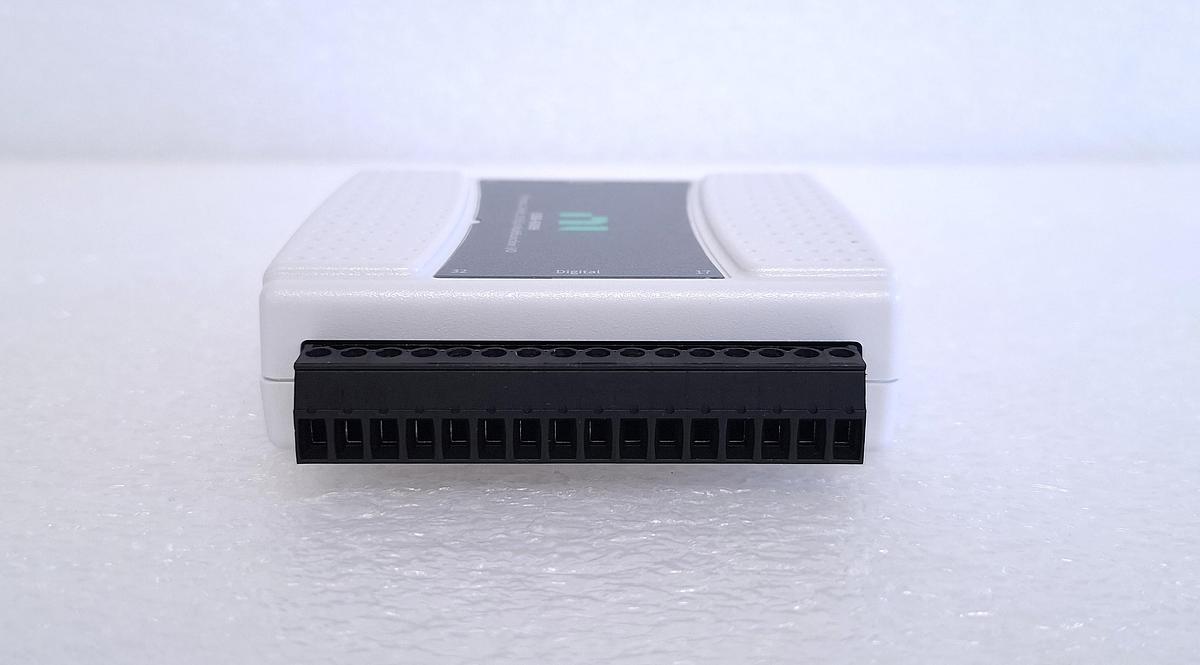

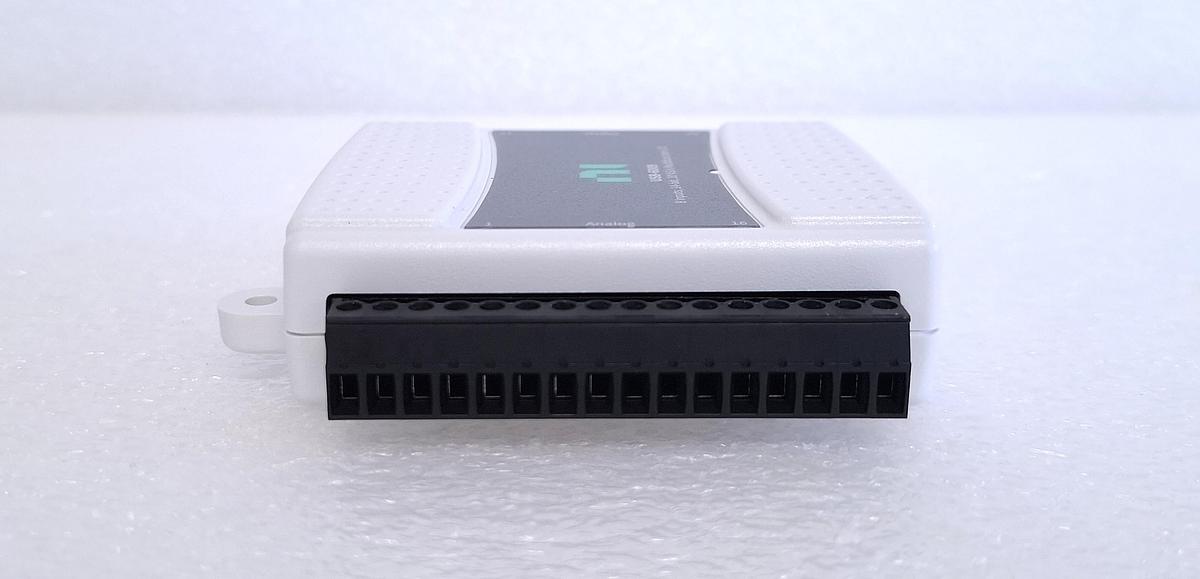

The USB-6009 is a low-cost, 8 Analog Input (14-Bit, 48kS/s), 2 Analog Output (150Hz), 13 Digital I/O USB multifunction I/O DAQ device. It offers analogue I/O, digital I/O, and a 32bit counter. The USB-6009 provides basic functionality for applications such as simple data logging, portable measurements, and academic lab experiments. The device features a lightweight mechanical enclosure and is bus-powered for easy portability. Users can easily connect sensors and signals to the USB-6009 with screw-terminal connectivity.

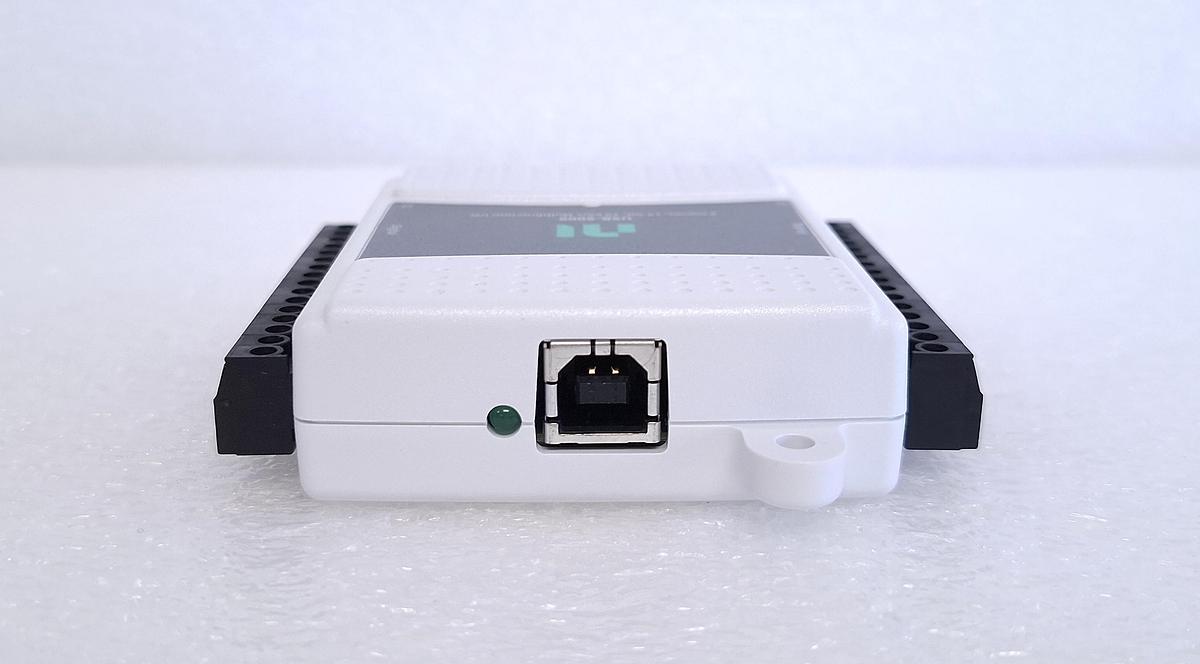

• USB 2.0 full-speed (12Mb/s) bus interface

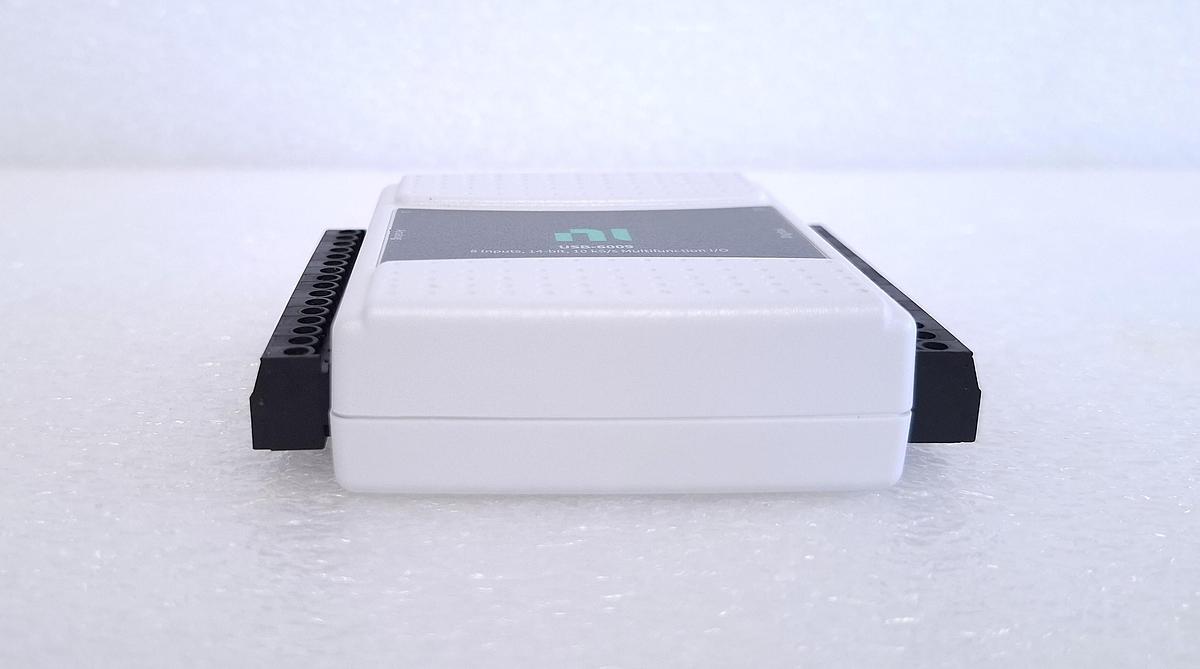

• Dimension is 81.78mm × 85.09mm × 23.11mm (with connectors)
• Operating temperature range from 0°C to 55°C (IEC 60068-2-1 and IEC 60068-2-2)
• Meets IEC 61010-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1
• 5V typical external voltage
• Reference temperature drift is 50ppm/°C maximum
• Power requirement is 150mA maximum (from USB, 4.30VDC to 5.25VDC)
