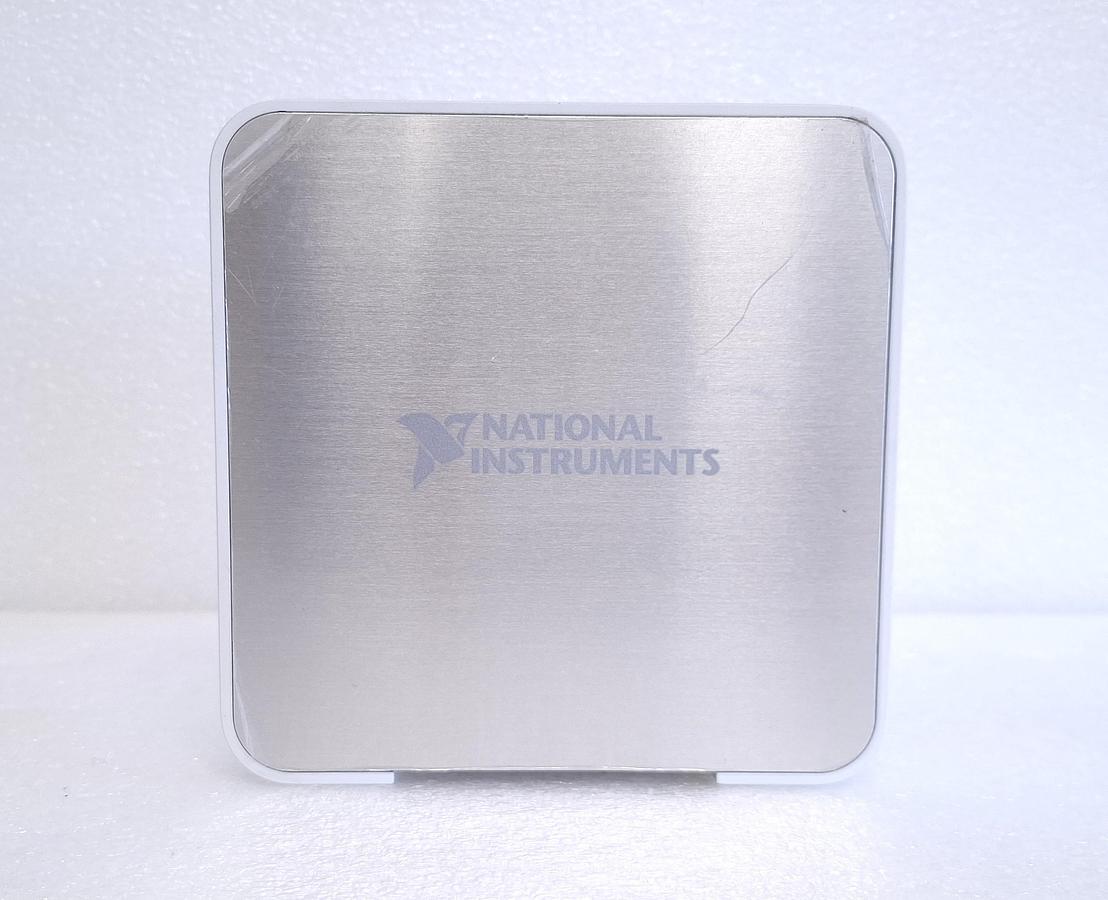

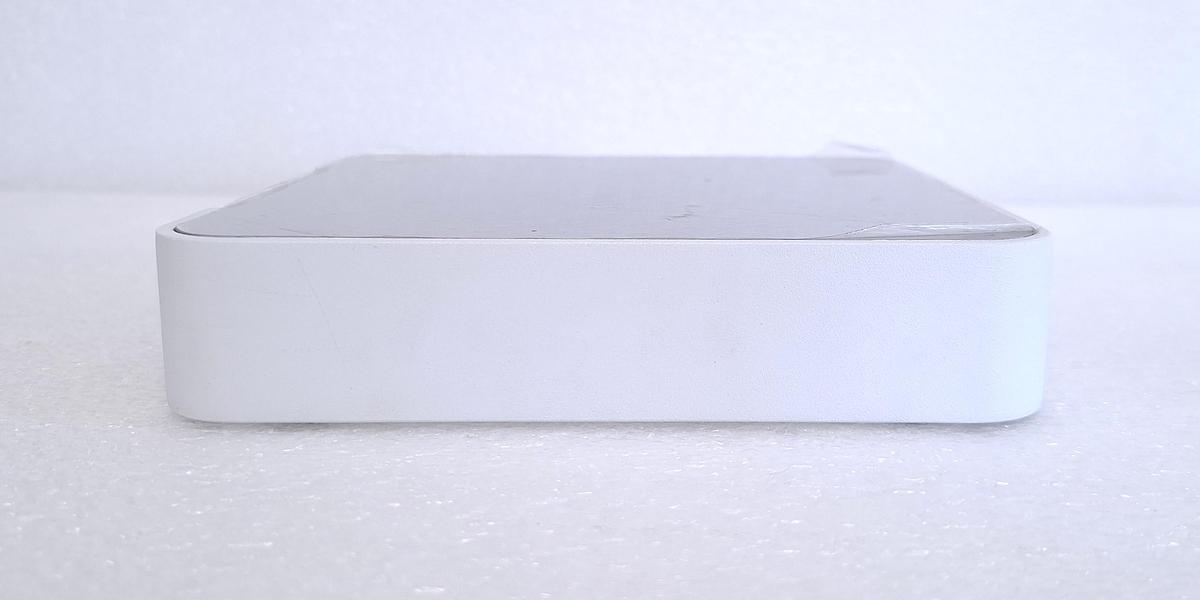

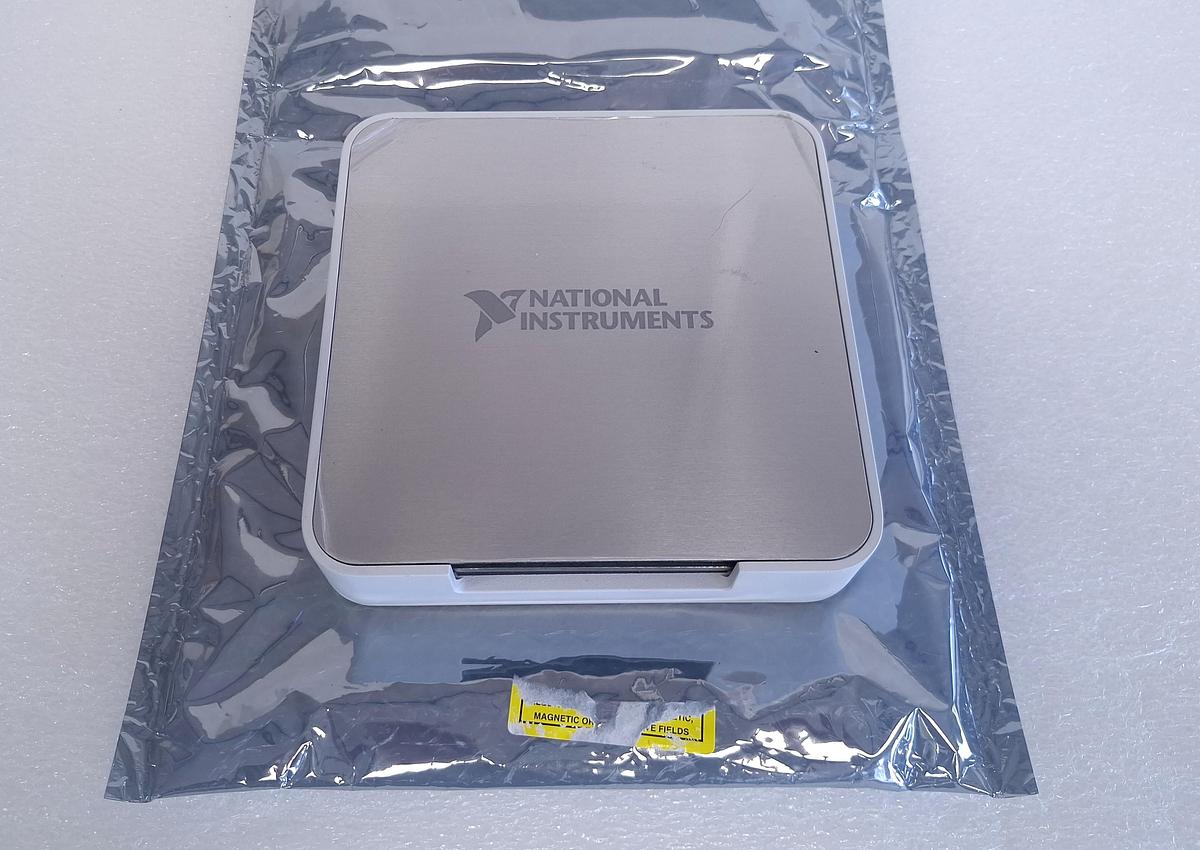

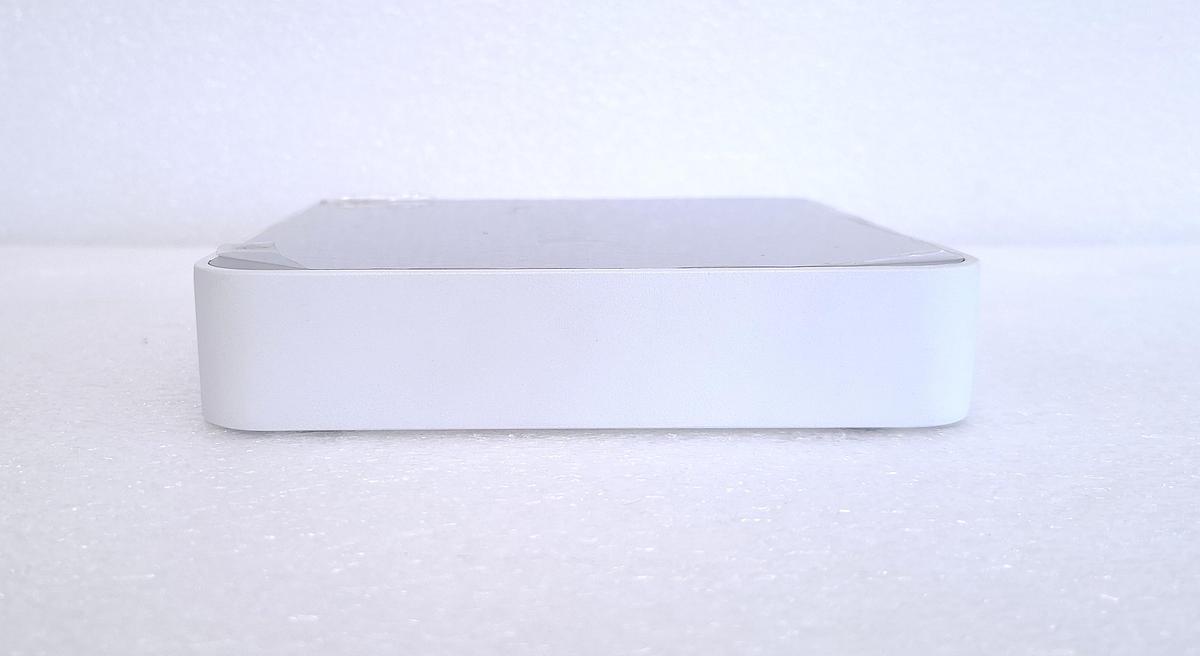

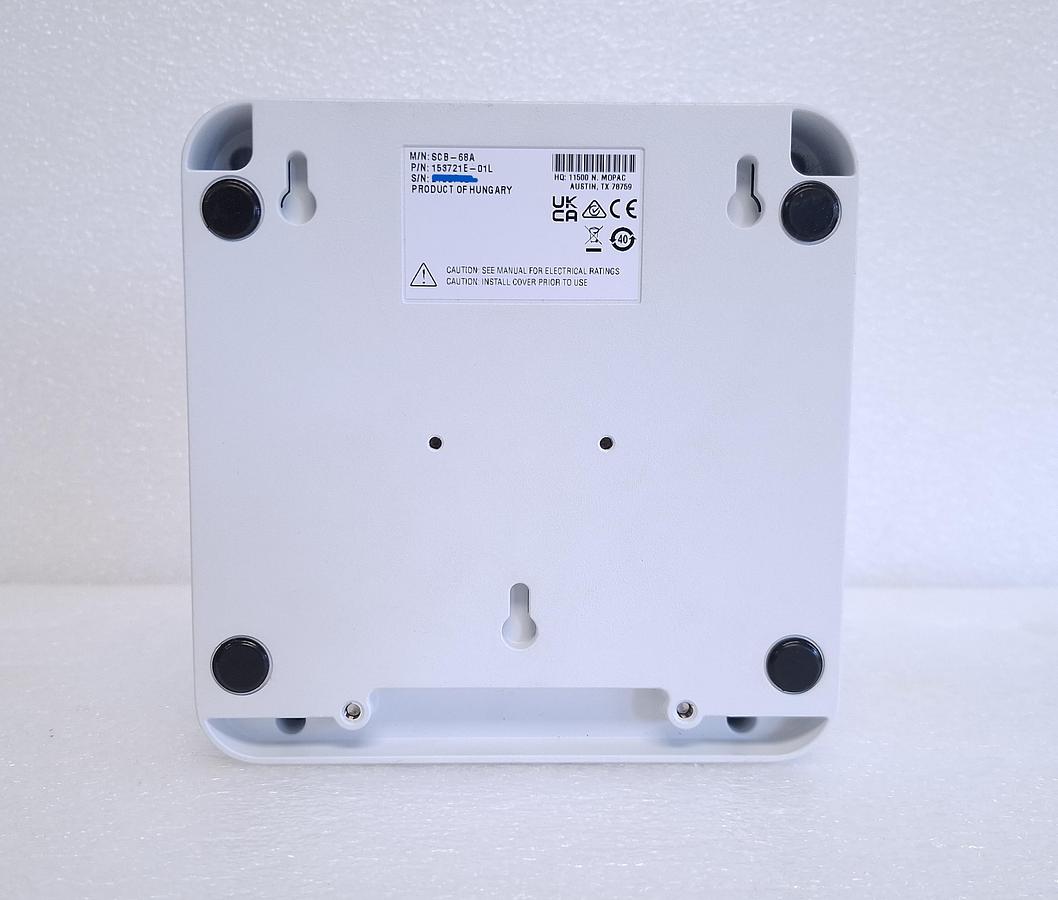

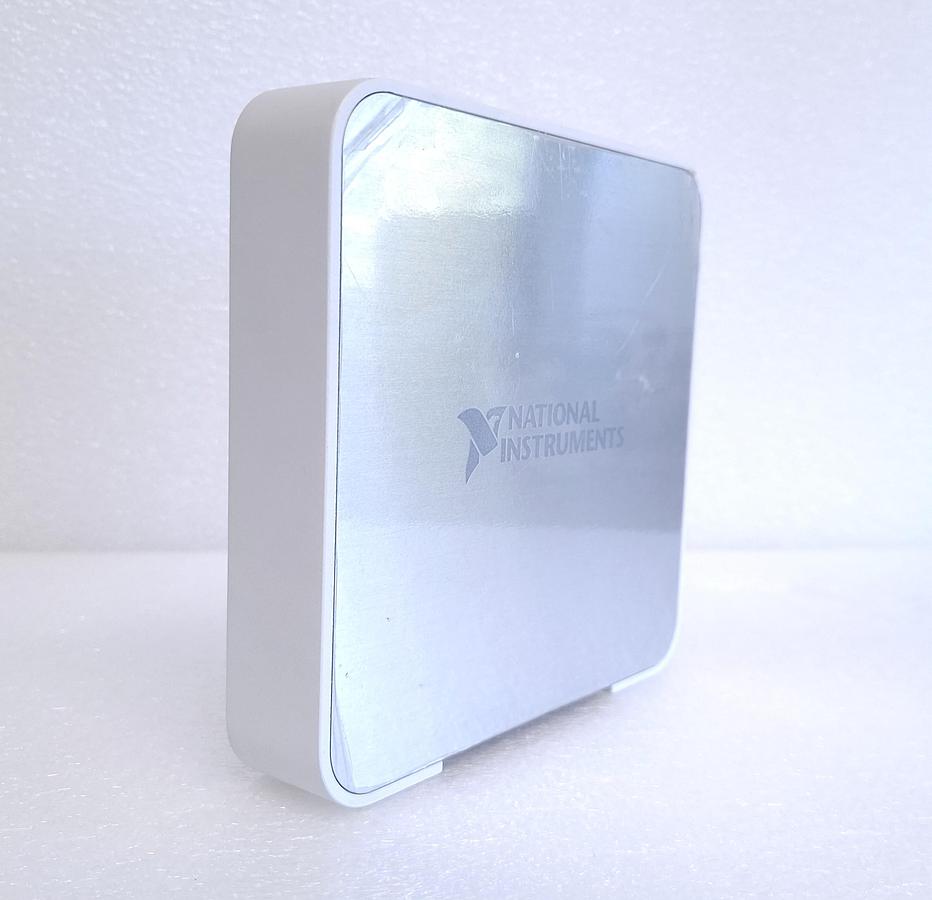

NI SCB-68A

National Instruments NI SCB-68A I/O Shielded, Noise Rejecting Terminal Block

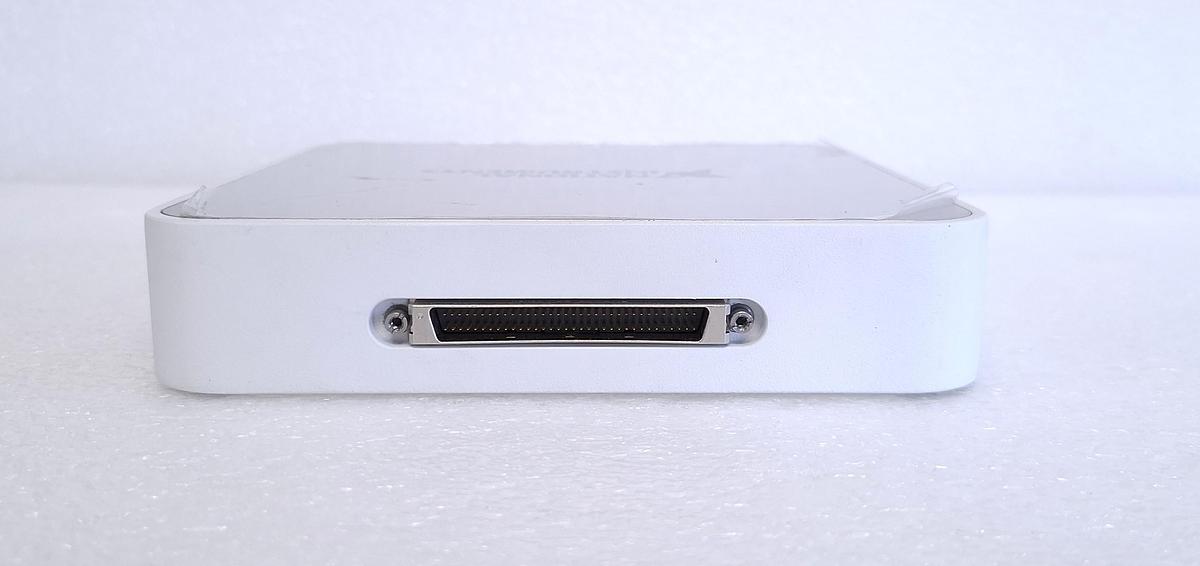

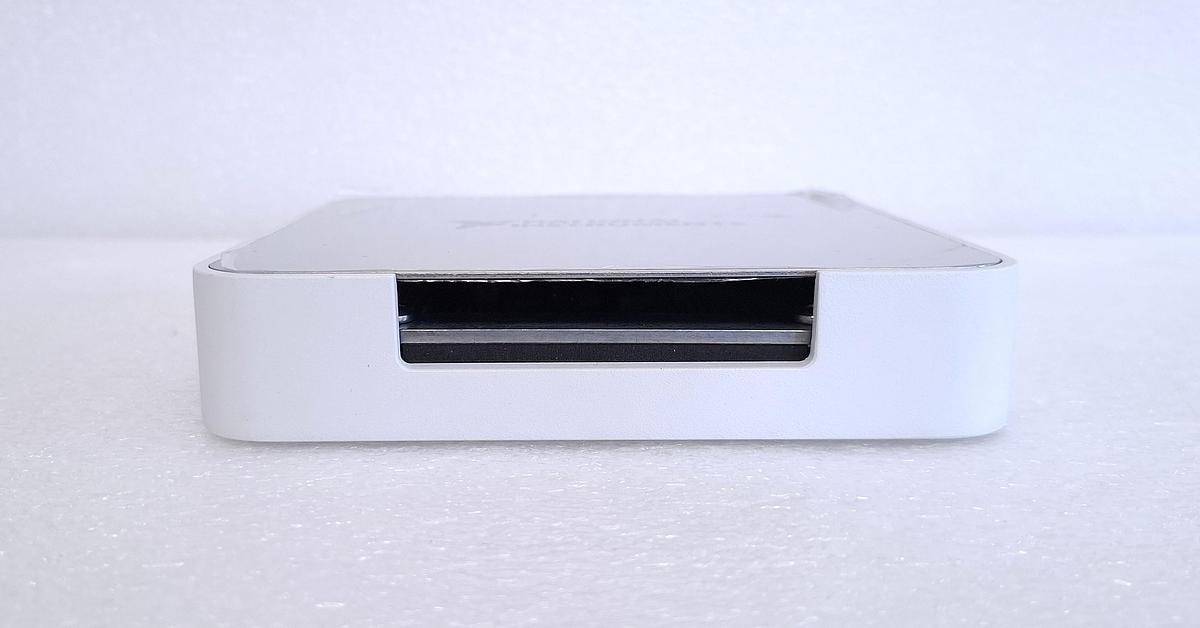

The NI SCB-68A is a 68-pin female screw terminal to 68-pin female D-SUB, DIN-rail, shielded I/O connector terminal block. The SCB-68A provides a shielded I/O connection for interfacing I/O signals to plug-in data acquisition devices with 68-pin connectors. This terminal block combines with shield cables to provide low-noise signal termination. The SCB-68A incorporates a completely redesigned mechanical enclosure with a magnetic removable lid, DIN-rail mount compatibility, and a resettable fuse. It is compatible with single- and dual-connector multifunction I/O with 68-pin connectors. The SCB-68A also includes two general-purpose breadboard areas and an onboard Cold-junction compensation sensor.

• Power consumption (at +5VDC, ±5%) is 800mA maximum from host computer
• Dimension (including feet) is 147.32mm × 147.32mm × 30.48mm
• Operating temperature range from 0°C to 70°C
• Meets IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1
