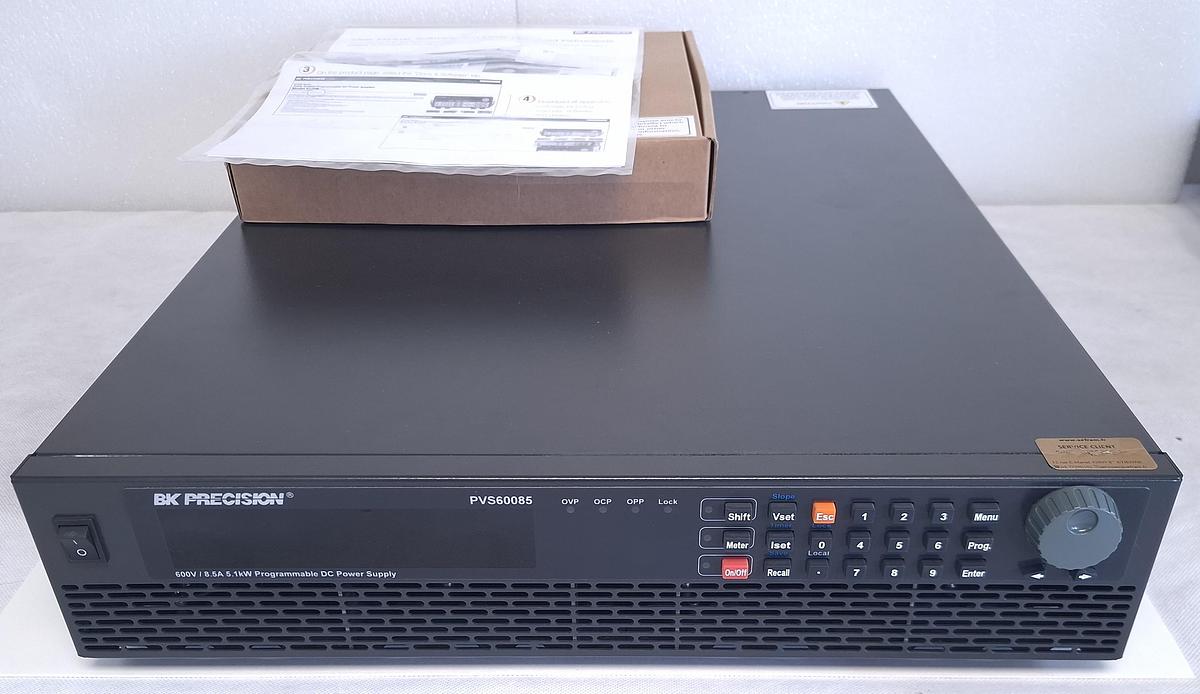

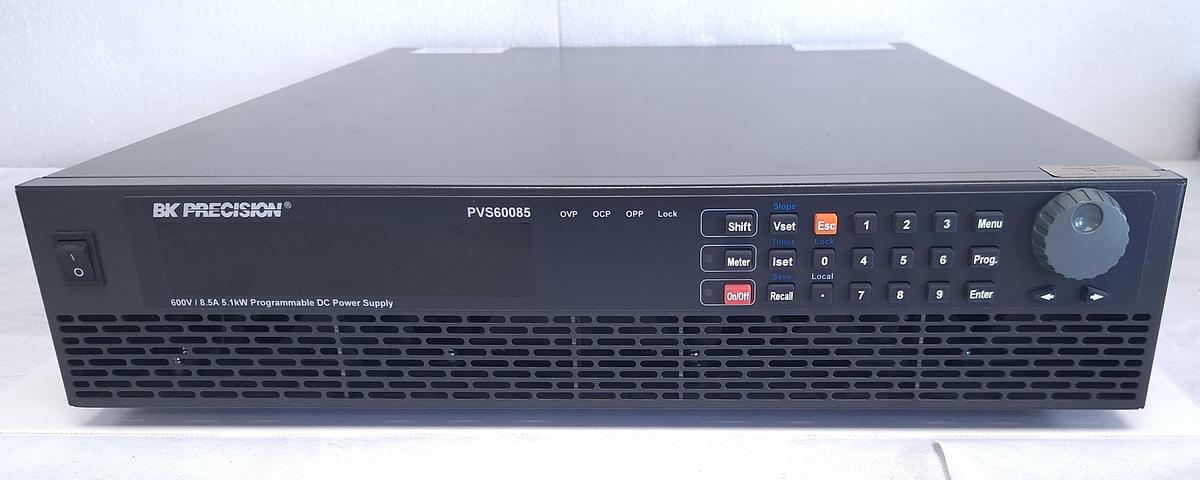

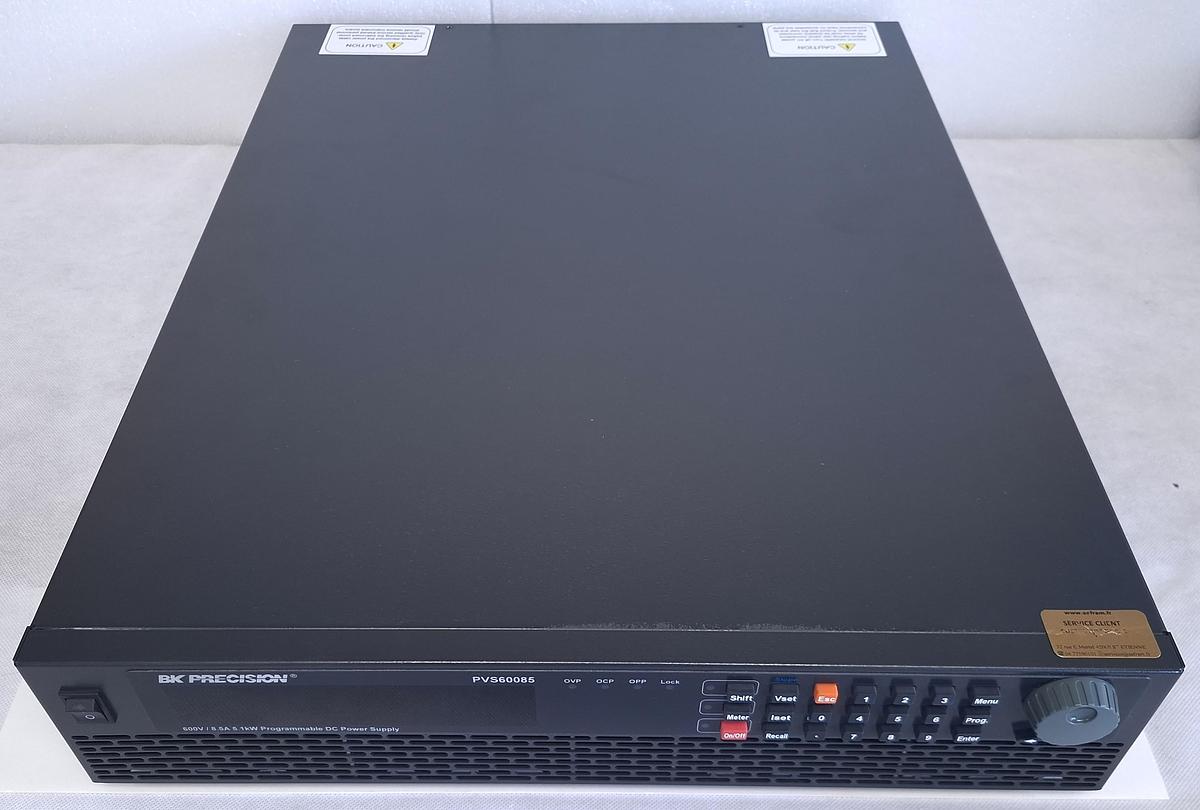

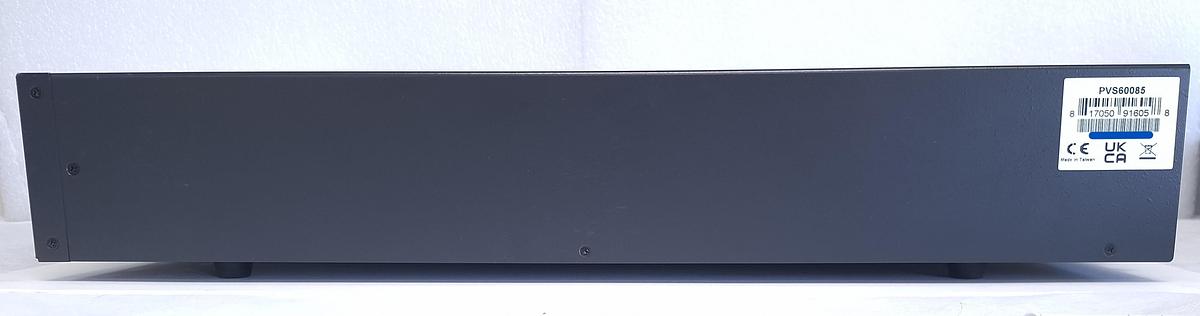

B&K Precision PVS60085

B&K Precision PVS60085 Programmable DC Bench Power Supply

(Programmable, 1 Output, 0V, 600V, 0A, 8.5A)

• Compact, high power density, 2U package
• 5.1 kW Maximum Output Power capability
• Output up to 600V/8.5A (PVS60085 & PVS60085MR)
• Convenient single-phase AC input configuration

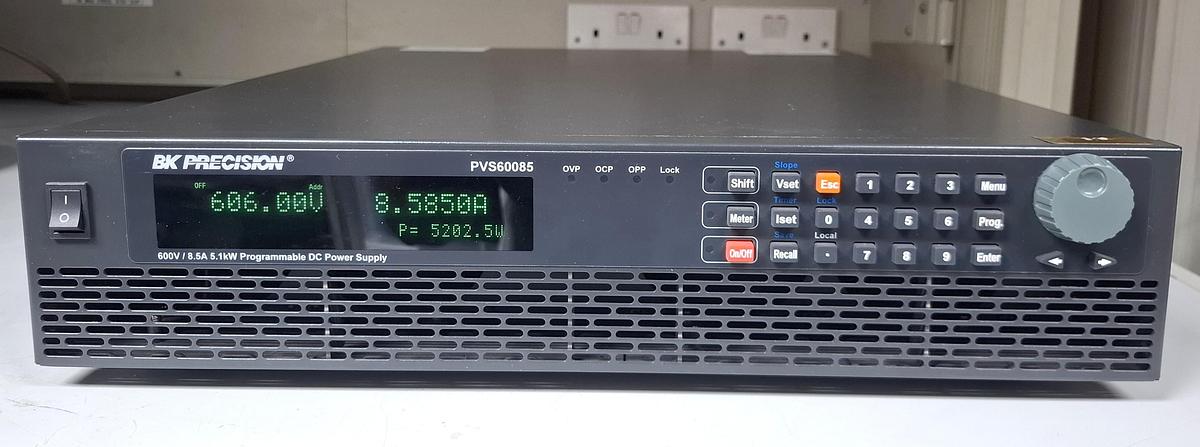

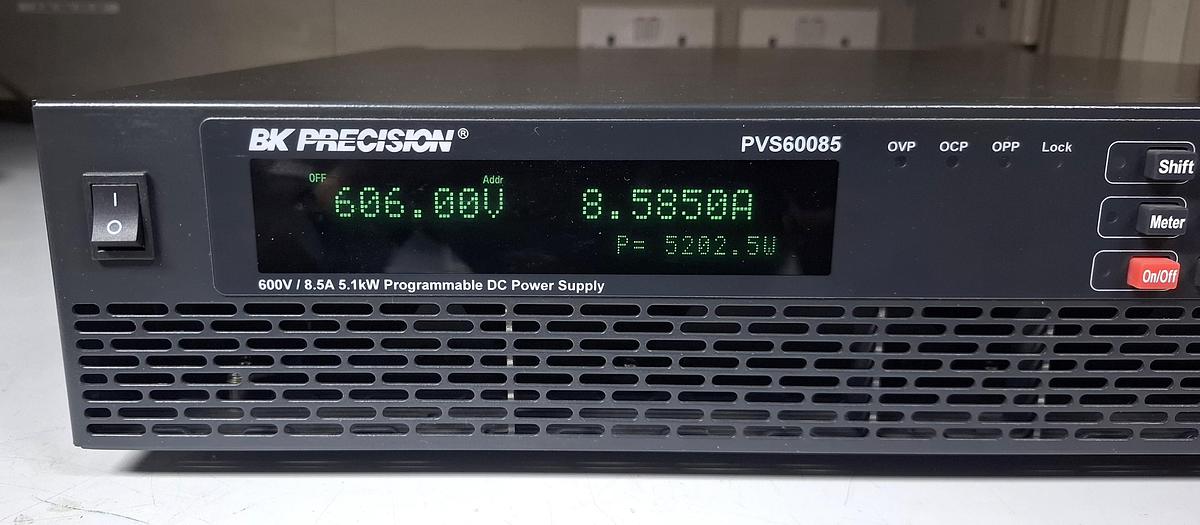

• Bright VFD display
• High voltage and current resolution of 100 mV, 0.1 mA (PVS10005) or 10 mV, 0.2 mA (PVS60085 & PVS60085MR)
• Fast transient response time of ≤ 0.5 ms
• Adjustable voltage and current slope (rise and fall times)
• List mode: 9 user-defined programs with up to 100 programmable steps each
• Built-in SAS function for storage of up to 16 I-V curves with Voc, Isc, Vmp, and Imp parameters and 1024-point table

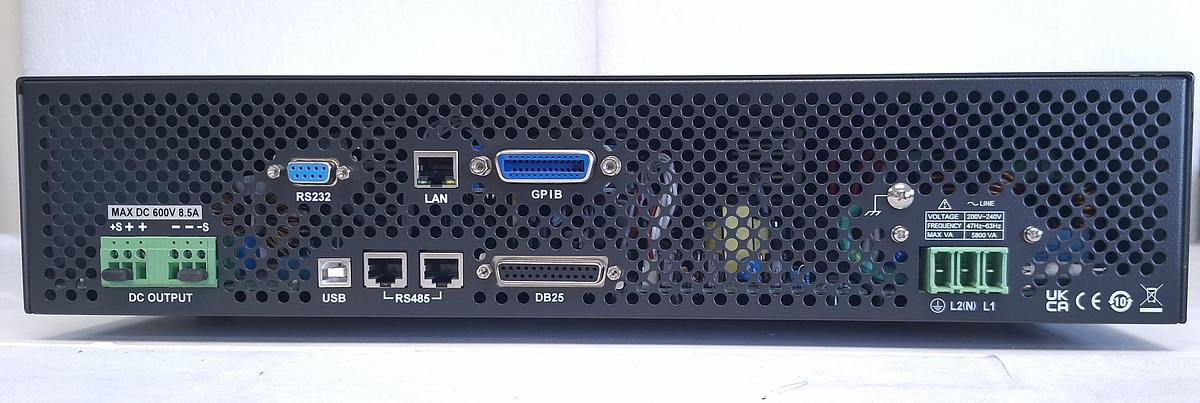

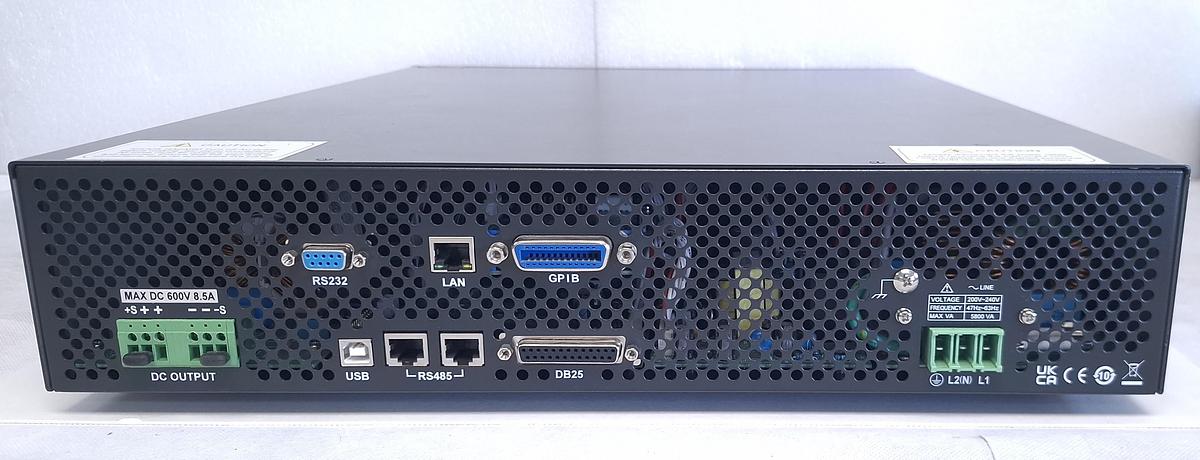

• Standard USB (virtual COM), RS232, GPIB and LAN interfaces supporting SCPI commands
• External analog programming and monitoring interface
• LabVIEW driver and softpanel available for remote control, test sequence generation, and datalogging
