Rohde & Schwarz (R&S) NGP814

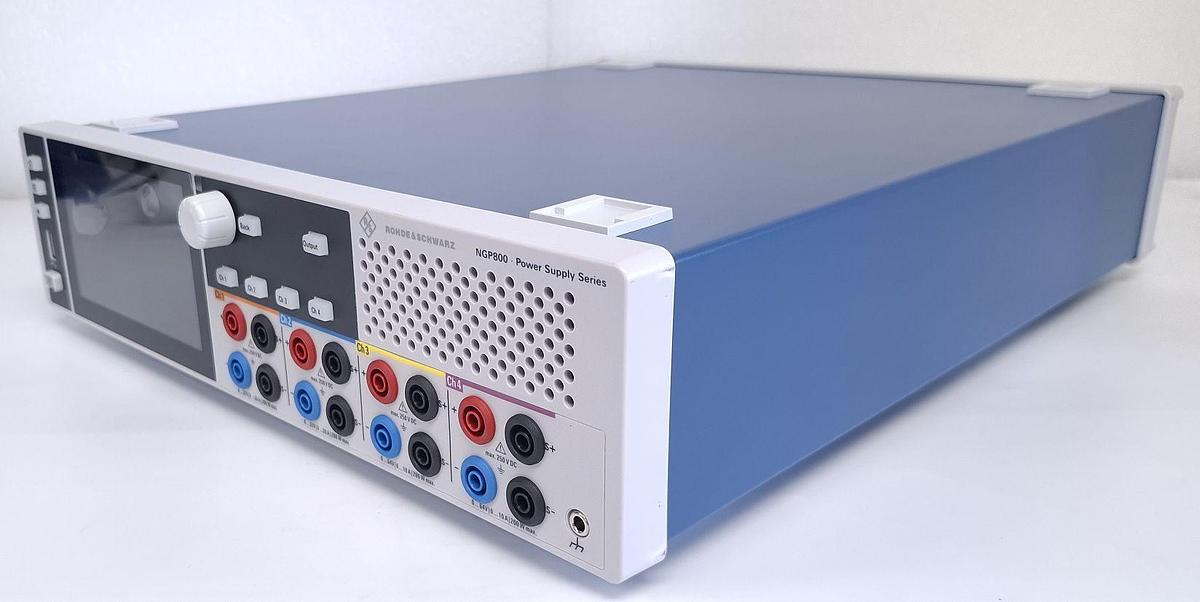

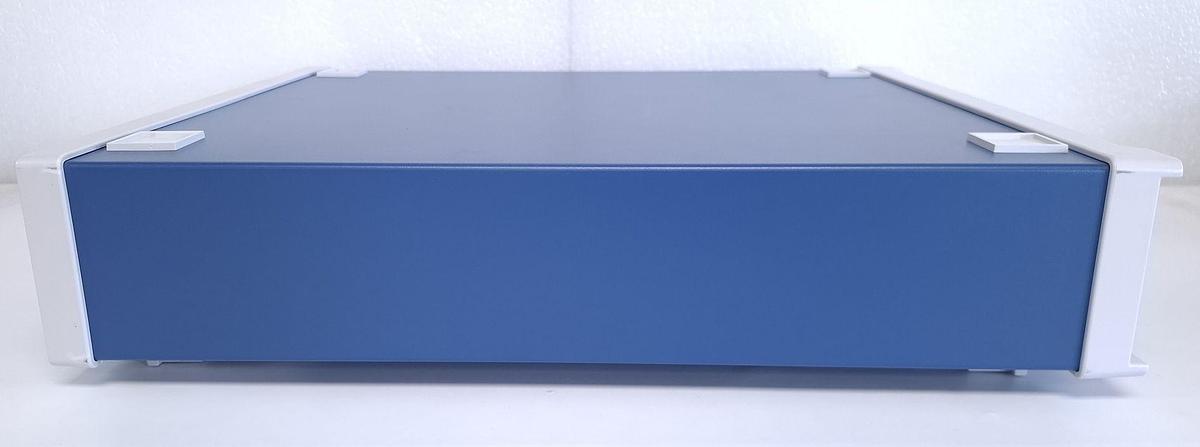

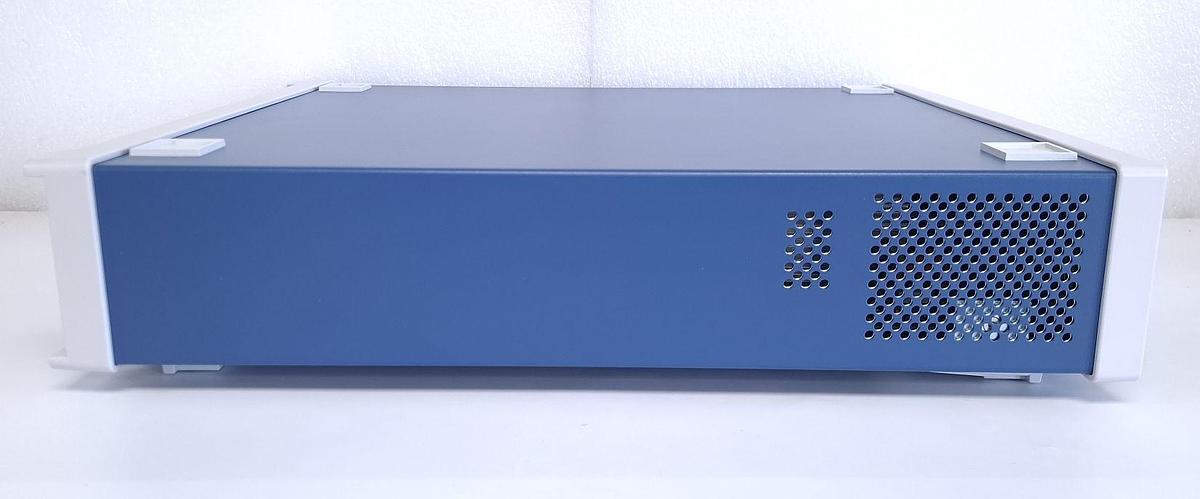

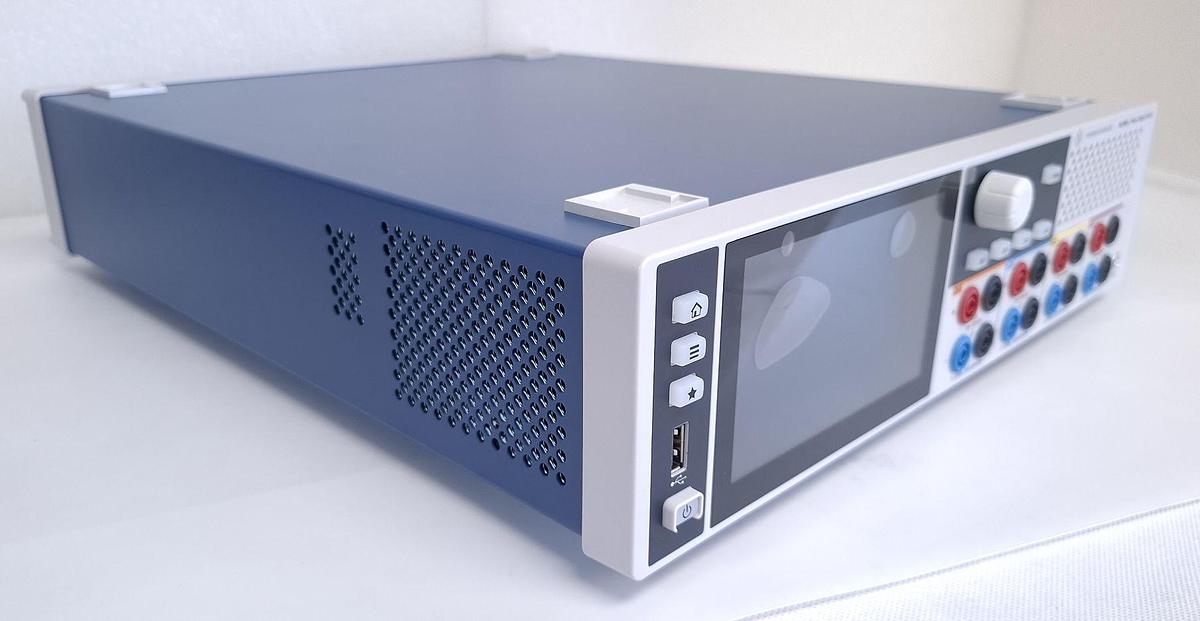

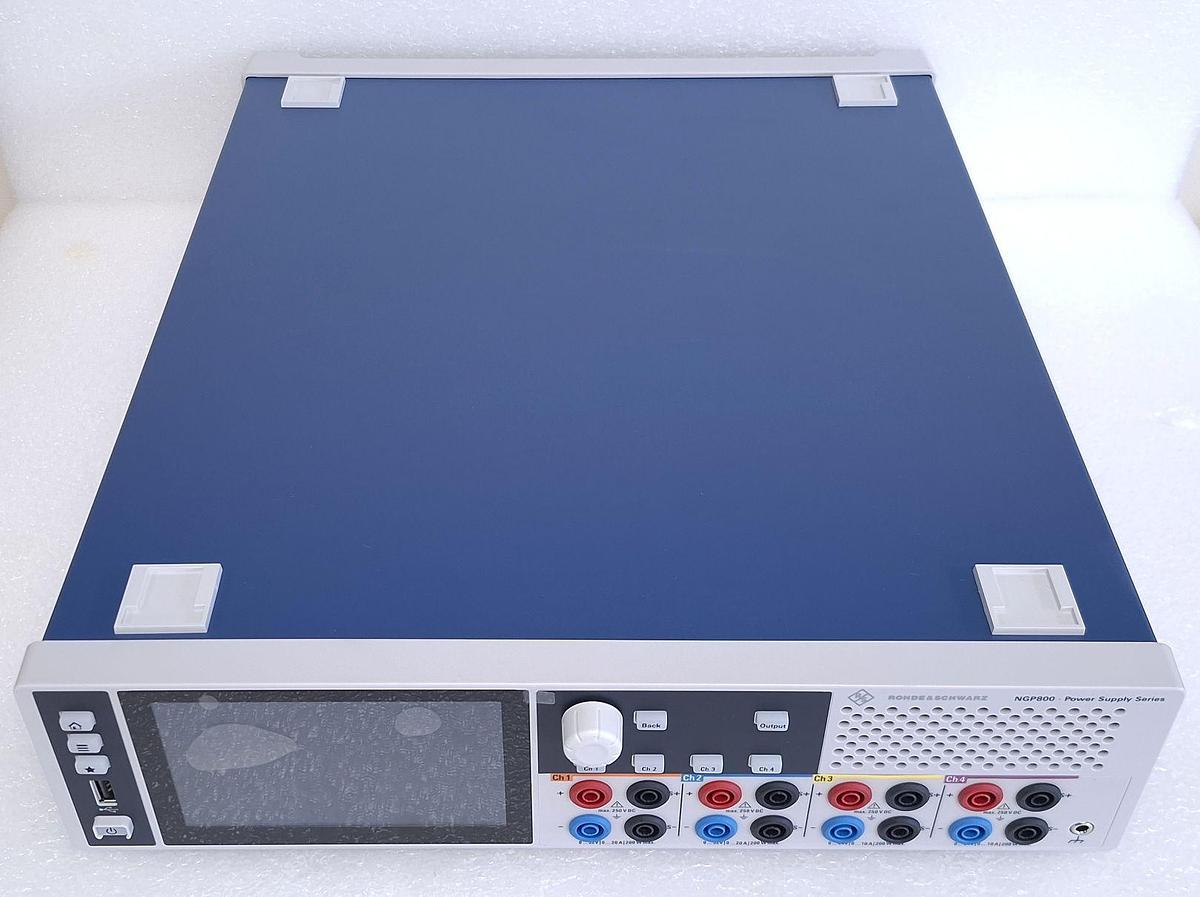

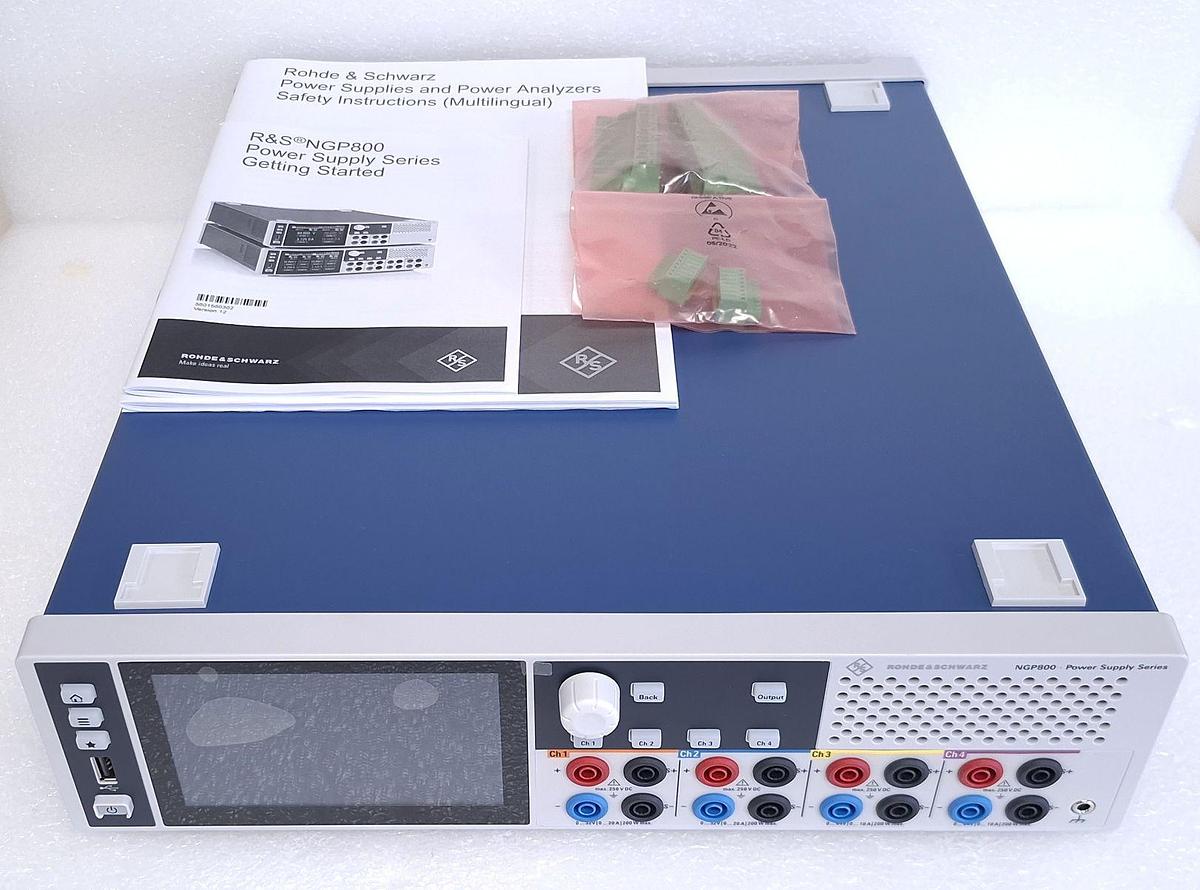

Rohde & Schwarz NGP814 Bench Power Supply

The Rohde & Schwarz NGP814 is a high‑performance quad‑output programmable DC power supply designed for engineers who need precision, reliability, and high power density in professional test environments. With 800 W total output power, advanced sequencing features, and modern connectivity, the NGP814 stands out as one of the most capable multi‑channel bench power supplies available today.

Four Independent High‑Power Outputs

The R&S NGP814 features four galvanically isolated channels, ideal for powering multi‑rail embedded systems, automotive electronics, industrial devices, and R&D prototypes.

• 2 × 0–32 V / 20 A
• 2 × 0–64 V / 10 A
• 800 W total output power
• Supports series, parallel, and tracking configurations

This flexibility makes the NGP814 a strong choice for engineers who need high current, high voltage, or synchronised multi‑rail power delivery.

Precision Control & Measurement

Engineers benefit from 1 mV / 0.5 mA resolution, low ripple, and fast load response. The NGP814 includes:

• Real‑time voltage, current, power, and energy measurement
• Remote sensing for accurate voltage regulation
• Built‑in data logging for long‑term testing
• High‑speed acquisition for dynamic load behaviour

These features make it ideal for validation, characterisation, and automated test setups.

Advanced Power Sequencing & Automation

The NGP814 includes several advanced functions that set it apart from standard bench supplies:

• EasyRamp controlled voltage rise
• Output delay for multi‑rail sequencing
• QuickArb arbitrary waveform generation
• Synchronous channel control
• Optional GPIB, digital I/O, and analog control

This makes the NGP814 particularly attractive for ATE systems, embedded development, and complex power‑up sequences.

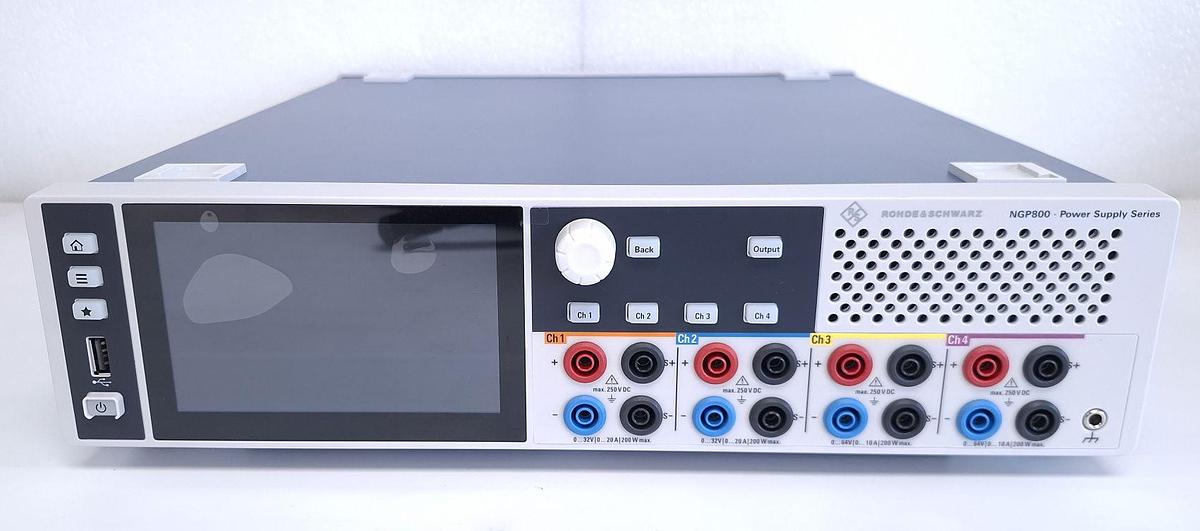

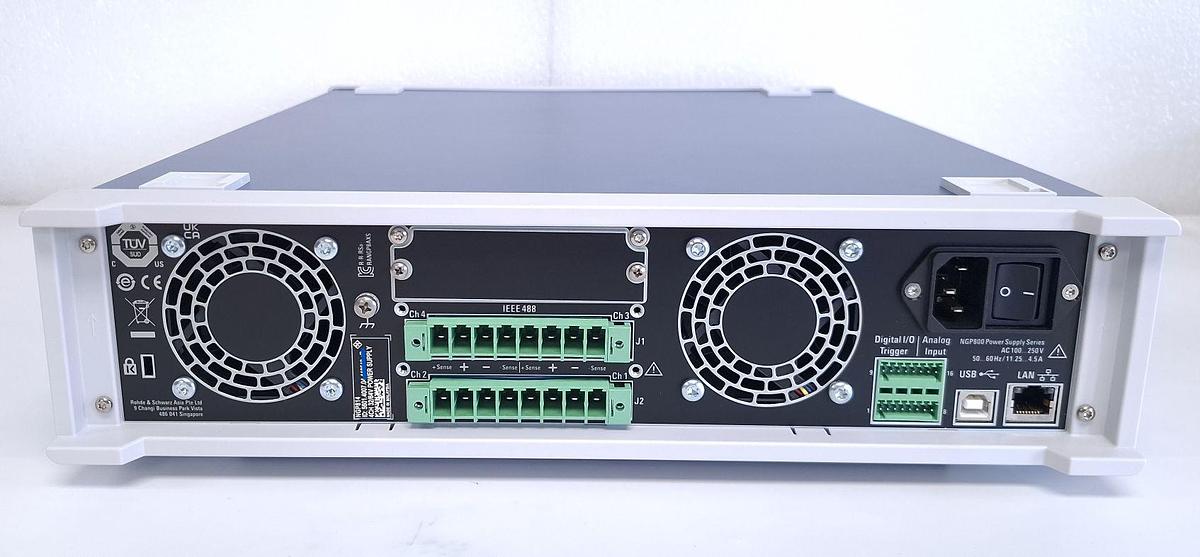

Modern Touch Interface & Connectivity

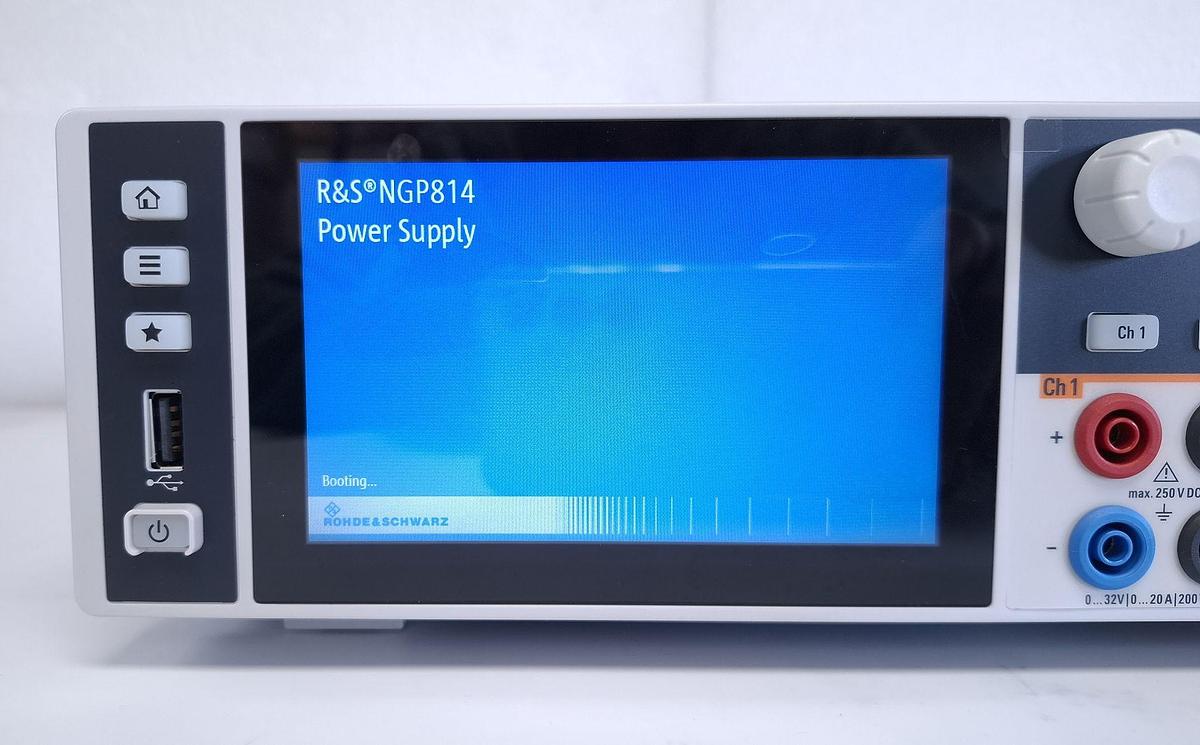

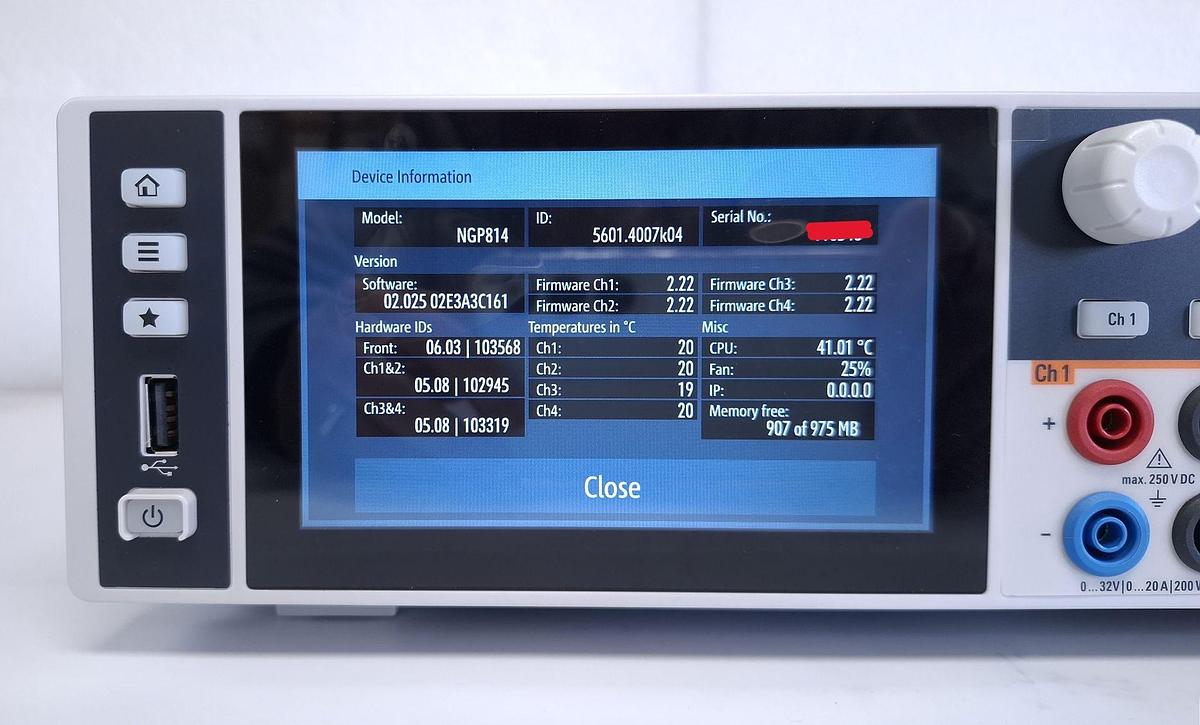

A large 5" high‑resolution touchscreen provides intuitive control over all four channels. Connectivity options include:

• USB
• LAN
• Optional GPIB
• Trigger I/O and analog input

Perfect for laboratories, production lines, and remote test automation.

Built‑In Protection Features

To safeguard sensitive devices, the NGP814 includes:

• OVP (Overvoltage Protection)
• OCP (Overcurrent Protection)
• OPP (Overpower Protection)
• OTP (Overtemperature Protection)
• FuseLink protection

These protections ensure safe operation during demanding test conditions.
