Keysight / Agilent 6622A

Keysight / Agilent 6622A

Contact us for price

Location:Hounslow, United Kingdom

Description

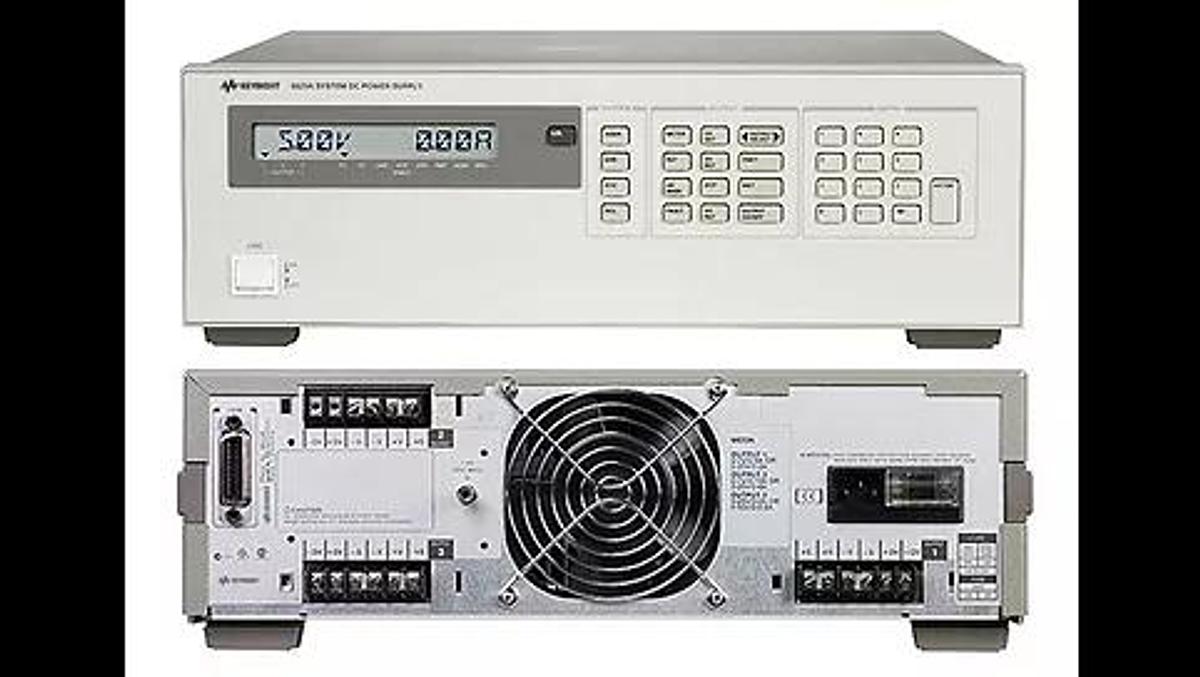

Keysight / Agilent 6622A System Power Supply, 80W, 2 outputs


Keysight high performance DC power supplies offer spec and accuracy for test optimization. The multiple output, 40 W - 105 W GPIB 6621A-6624A and 6627A provide dual-range outputs; fast, low-noise outputs; built-in measurements and advanced programmable features; and protection features to ensure DUT safety.


The Keysight 100W, dual-output 6622A is a versatile solution to help improve system accuracy and reduce test time in a 3U high package.



Output ratings

  • Low-range volts, amps: 0 to 20 V, 0 to 4 A
  • High range volts, amps: 0 to 50 V, 0 to 2 A

Programming accuracy at 25°C ±5°C

  • Voltage: 0.06% + 50 mV
  • Current: 0.16% + 40 mA

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 500 µV
  • Peak-to-peak: 3 mV
  • Current rms: 1 mA


Specifications

ManufacturerKeysight / Agilent
Model6622A
Stock Number7837
