Keysight / Agilent 6632B

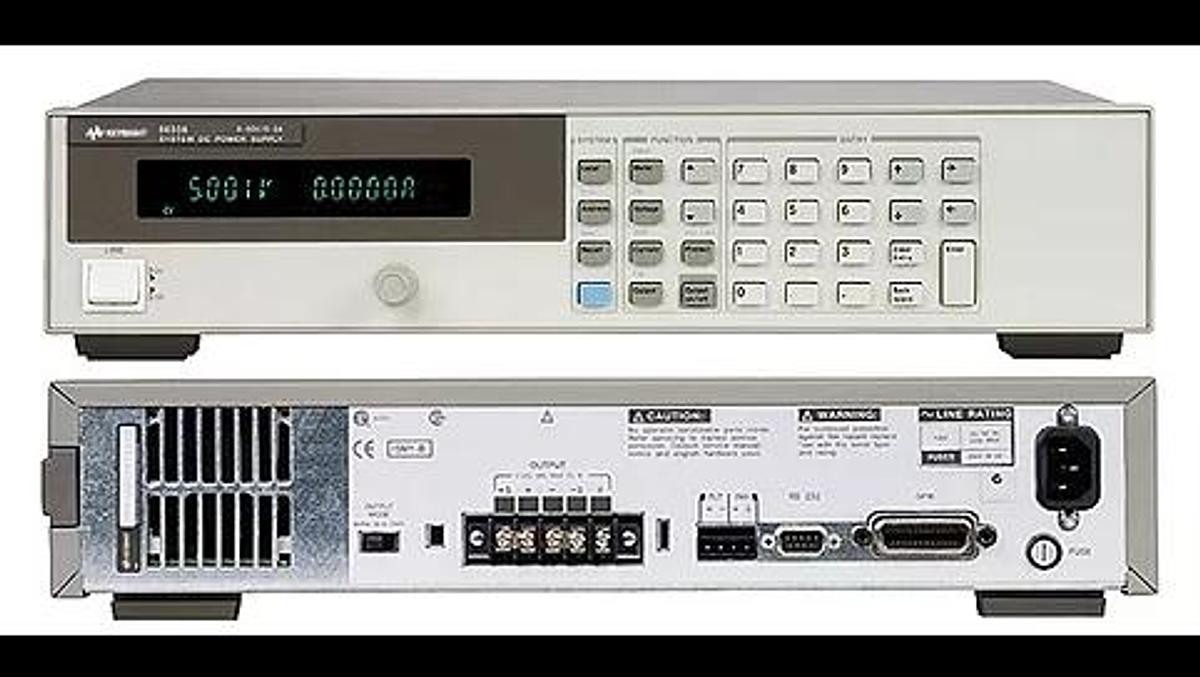

Keysight / Agilent 6632B 100 Watt System Power Supply, 20V, 5A

Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays. The Keysight 100W, GPIB, single output 6632B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements.

Output Ratings

• Output voltage: 0 to 20 V
• Output current: 0 to 5 A

Programming Accuracy at 25°C ± 5°C

• Voltage: 10 mV
• + Current: 0.05% + 2 mA

Ripple & Noise (20 Hz to 20 MHz)

• Voltage Normal Mode rms: 0.3 mV
• Voltage Normal Mode peak-to-peak: 3 mV
• Fast mode rms/ peak-to-peak: 1 mV/ 10 mV
• Current rms: 2 mA
