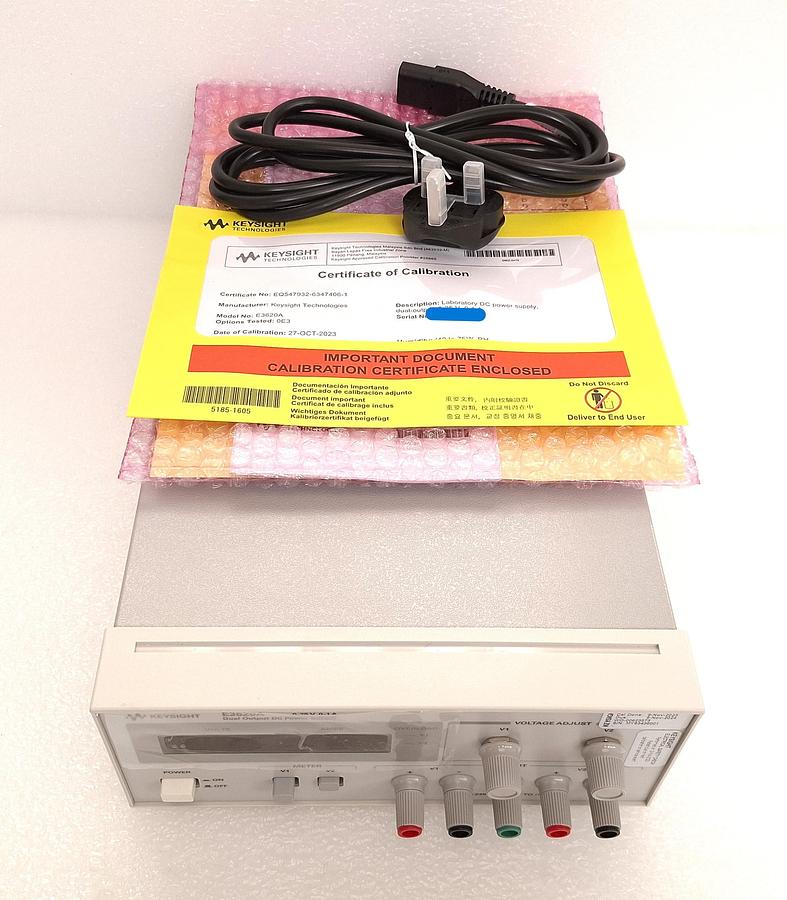

Keysight / Agilent E3620A

Keysight / Agilent E3620A 50W Dual Output Power Supply

(Two 25V, 1A)

E3620A is a 50W dual-output non-programmable DC power supply. It is a small, compact size power supply for bench use features low-noise and excellent regulation and overload indicator to monitor output.

Output ratings (Maximum current is derated 3.3% per °C from 40°C to 55°C)

• Output 1: 0 to 25 V, 0 to 1 A
• Output 2: 0 to 25 V, 0 to 1 A
• Power (max): 50 W

Ripple & noise from 20 Hz to 20 MHz

• Normal Mode Voltage rms: 350 µV
• Peak-to-Peak: 1.5 mV

Load & line regulation

• 0.01% + 2 mV

Meter resolution

• Voltage: 10 mV (0-20 V), 100 mV, (>20 V)
• Current: 1 mA
