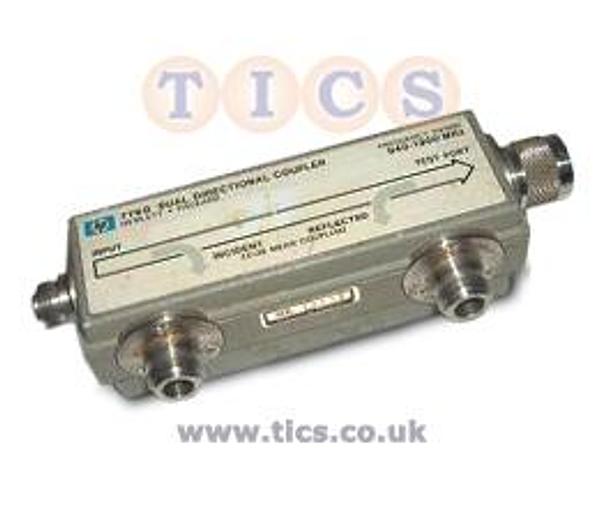

Agilent Technologies (HP) 776D

Agilent Technologies (HP) 776D

Contact us for price

Location:Hounslow, United Kingdom

orCall +44 (0)20 8572 5599

Description

Agilent 776D Coaxial Dual-Directional Coupler, 0.94 to 1.90 GHz

The Agilent 776D is an economical dual-directional coupler designed for swept measurements in the 0.94 to 1.90 GHz range. Its high directivity and mean coupling accuracy of plus or minus 0.5 dB makes the Agilent 776D ideal for reflectometer applications. The auxiliary arms track very closely, making this coupler particularly useful for reflectometers driven by sweep oscillators


Agilent / HP 776D Features

Frequency Range: 0.94 to 1.90 GHz Dual-directional, High directivity Nominal Coupling and Variation: 20 ±1 dB Directivity: >40 dB Maximum SWR: 1.15 Insertion Loss: <0.35 dB

Specifications

ManufacturerAgilent Technologies (HP)
Model776D
ConditionUsed
